Operations
p.41
Before connection
• Read the owner’s manual of the device you are connecting to the projector.
• Some types of computer cannot be used or connected to this projector.
Check for an RGB output terminal, supported signal p.39 , etc.
• Turn off the power of both devices before connecting.

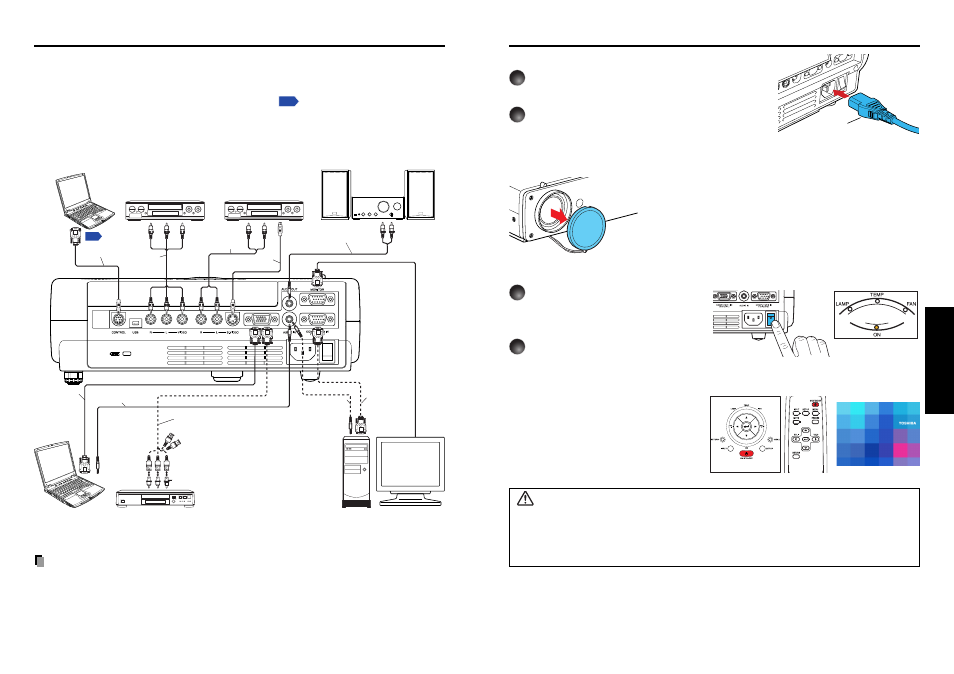

• The figure below is a sample connection. This does not mean that all of these devices
can or must be connected simultaneously. (Dotted lines mean items can be exchanged.)
Notes
• COMPUTER terminals 1 and 2 function identically.
• The AUDIO IN terminal doubles for devices connected to COMPUTER terminals 1 and 2.
Connection
Computer (for control)
VCR
Video recorder,
DVD player, etc.
Audio amplifier, etc.
To RS-232C
terminal
Control cable
To audio output
White (L)/Red (R) To video
output
AV cable
(not supplied)
Video cable (not supplied)
To S-Video
output To audio output
White (L)/Red (R)
S-Video cable
(not supplied)
Audio cable
(not supplied)
To audio input
White (L)/Red (R)
To RGB
output
RGB cable
(not supplied)
Audio cable
(not supplied)
To audio
output To Y/C B /C R output
Green (Y)/Blue (C B )/Red (C R )
Conversion adapter BNC-pin
(not supplied)
Monitor cable Mini
D-sub 15P-BNC
(not supplied)
To audio output
Audio cable
(not supplied) RGB cable
(supplied)
To RGB output
Computer Computer DVD video recorder, etc.
Turning the power on and off
Operations
■ Connecting the power cord
1 Insert the power cord connector into the
AC IN socket of the projector.
2 Insert the power cord plug into a wall or
other power outlet.
■ Turning the power on
1 Turn on the main power switch
The ON indicator will change to
orange, indicating standby mode.
2 Press the ON/STANDBY
button.
The power turns on, and the following
3 green indicators light: ON, LAMP,
and FAN. After a moment, the start-up
screen appears.
Start-up screen
Control panel
Remote
Control
Power cord connector
(Supplied)
CAUTION
• Do not look into the lens while the lamp is on. The strong light from the lamp may cause
damage to your eyes or sight.
• Do not block the air intake or exhaust. Doing so could cause a fire due to internal overheating.
• Do not place your hands, face, or other objects near the air exhaust. Doing so could cause
burns, deform/break the object.
■ Removing the lens cover
Be sure to remove the lens cover when the power is
turned on. If it is left on, it could become deformed due
to heat.
(Orange)
