Thermo Products COMBOMAX Models from 8 kW to 24 kW : 240 Volts ( single phase ) - Manual (Page 23)

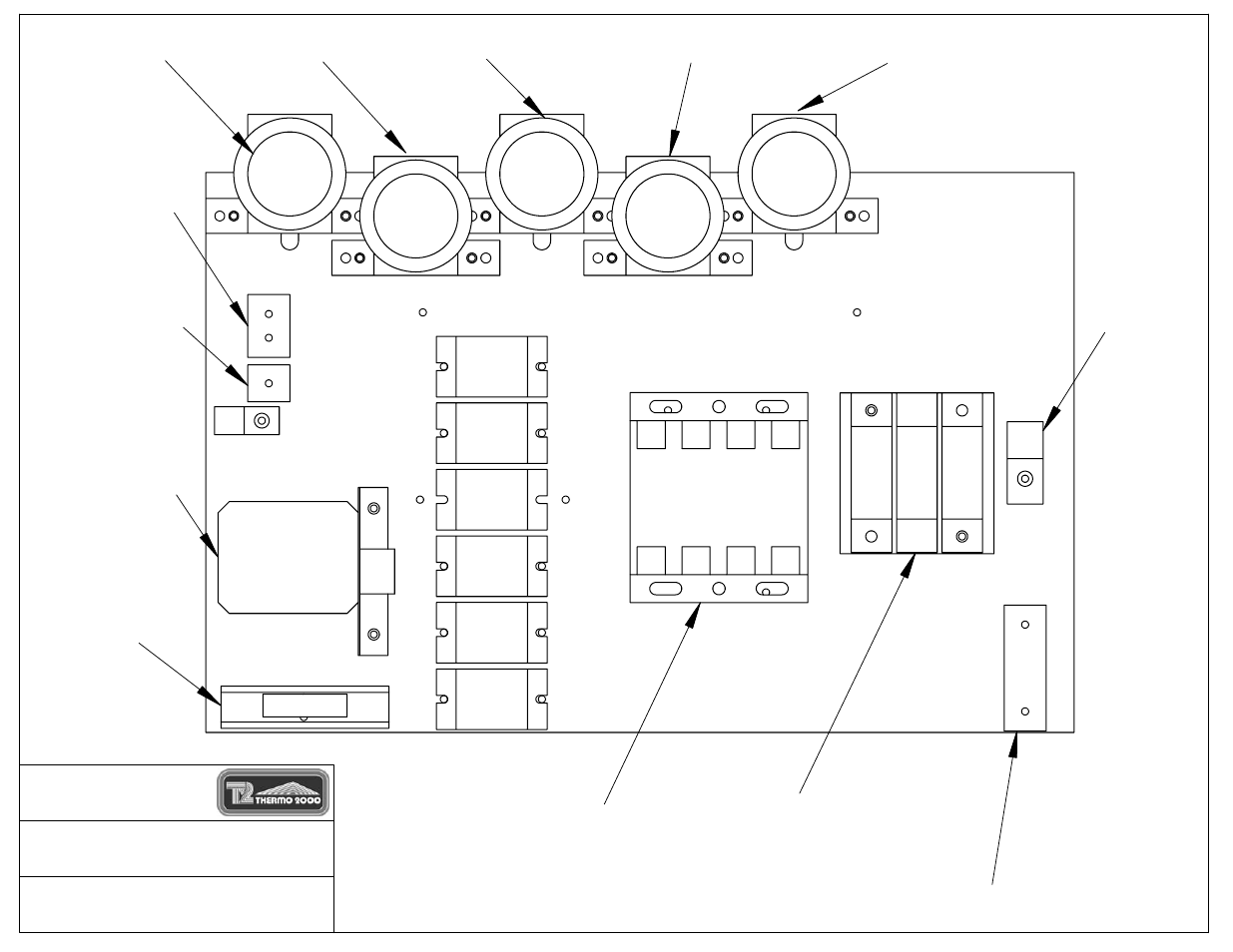

Aquastat
Priorité DHW/
DHW priority
(Sugg: 160F)
Aquastat
Élément no. 4/
Element no. 4
(Sugg: 165F)
Aquastat
Élément no. 3/
Element no. 3
(Sugg: 170F)
Aquastat
Élément no. 2/
Element no. 2
(Sugg: 175F)
Aquastat
Élément no. 1/
Element no. 1
(Sugg: 180F)
Contacteur
principal/
Main
Contactor
Bornier de
raccordement/
Main terminal
Block
Bornier
valve 3 voies/
3 way valve
terminal block
Bornier/
Terminal block
C-C
(Pompe/ Pump)
Transformateur
contrôle/
Transformer
Control
Fusible
contrôle/
Control
Fuse
Bornier/ Terminal block
K-K (contact sec/ Dry contact)
E2-V2 (Bi-énergie/ Dual Energy)
T-T (Thermostat)
Mise à
la terre/
Grund
Relais
Valve
3 voies
Relais
Contact
sec K - K
Relais
Priorité
DHW
Relais
Pompe
Relais BE
Éléments
Relais BE
Valve
3 Voies
3 way
Valve
Relay
Dry Contact
K - K
Relay
DHW
Priority
Relay
Pump
Relay
Element
Dual Energy
Relay
3 way valve
Dual Energy
Relay
Panneau de contrôlel/
Control pannel
THERMO 2000 inc.
COMBOMAX 240V
Figure 10
Page 23
