Side & Rear flail Maintenance Section 4-27
MAINTENANCE
RECOMMENDED FILLING INSTRUCTIONS
FOR REAR FLAIL GEAR BOX

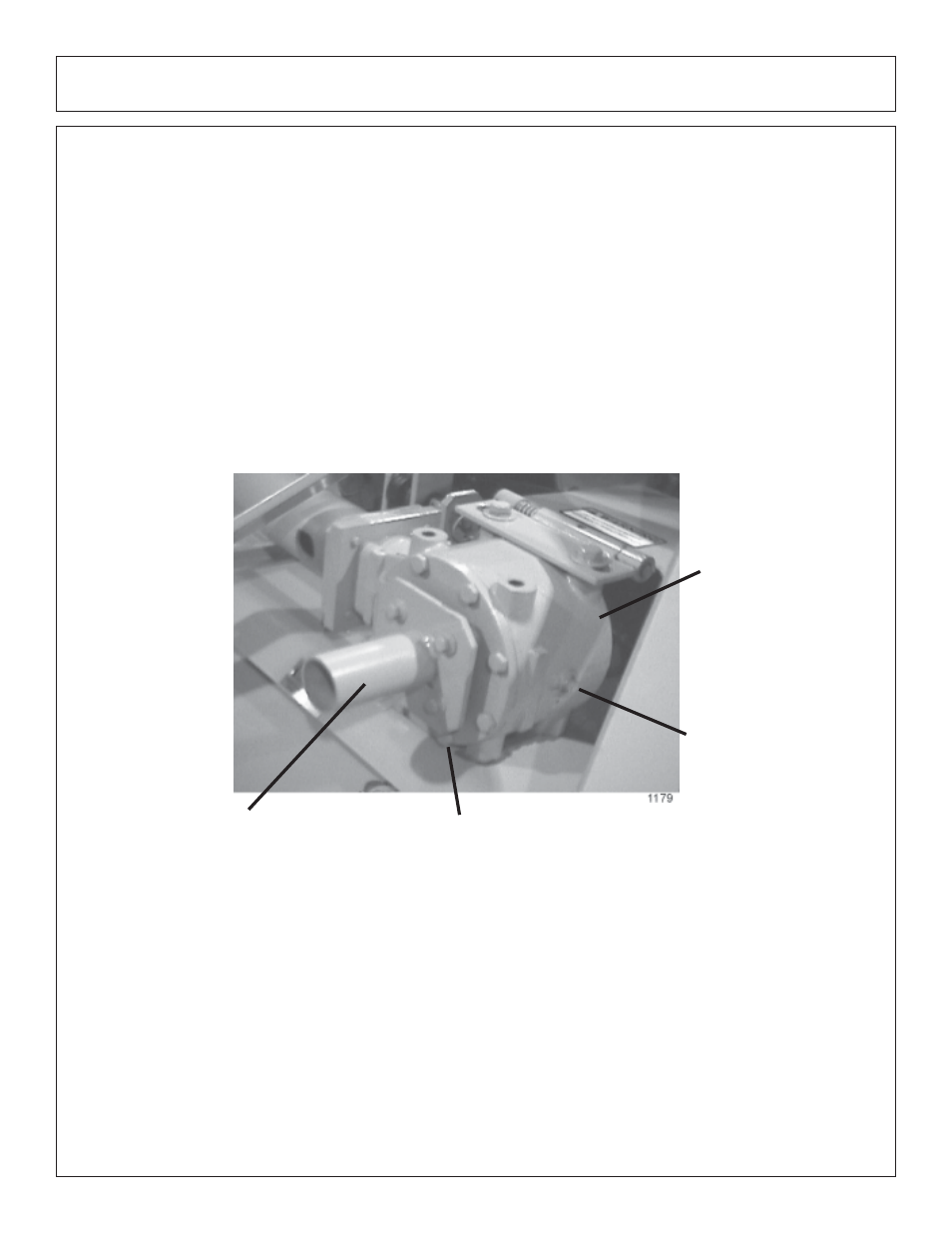

Rear Flail
gear box
Fluid level
plug
Gear box
drain plug
Input shaft
guard
When filling or checking the fluid level, the unit should be parked
on a level surface with rear flail down on surface, shut “OFF”, and cold,
(at ambient temperature).
Remove the fluid level plug located on the side of the gear box.
The gear box should be filled to the bottom of the fluid level hole. If nessecary,
use 75 - 90 wt. PAO Synthetic Extreme Pressure Gear Lube to raise level to
bottom of the hole.
Do not over-fill. excessive gear oil will run back out of the hole. Reinstall fluid
level plug into gear box. If gear box has been over-filled, the excess may be
expelled through the pressurized breather.
