Side & Rear flail Maintenance Section 4-12
MAINTENANCE
GREASING INNER AND OUTER DRAFT BEAM
PIVOT POINTS
Locate the grease zerks on the inner and outer draft beam pivot bosses. Inject
Lithium-Complex Extreme Pressure grease conforming to NLGI2-ISO 320
specifications into each zerk until grease protrudes from joints. Grease all pivots
daily or every 8 hours of service.

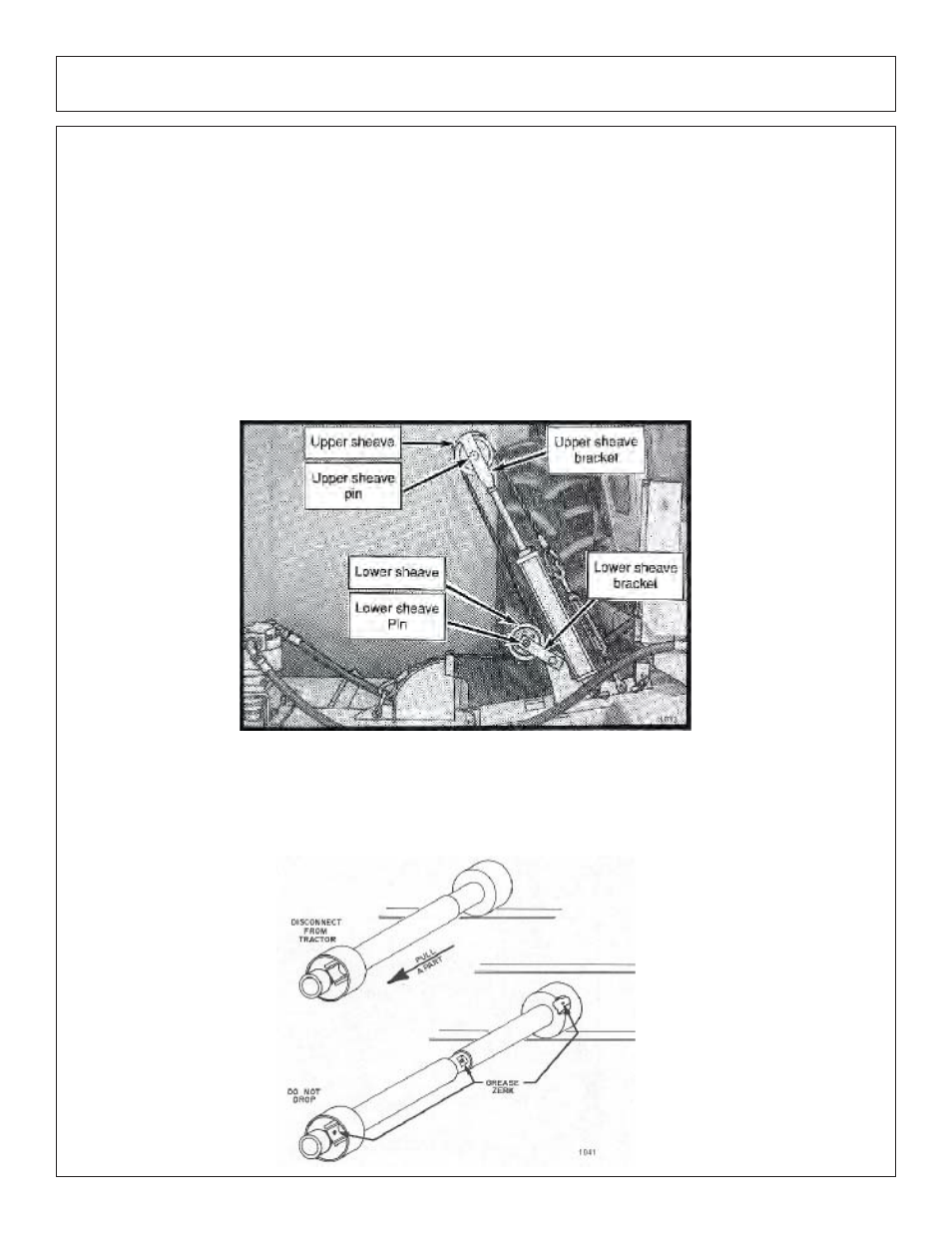

GREASING THE UPPER AND LOWER SHEAVES
Locate the grease zerks on the ends of the upper and lower sheave pins as
shown below. Inject Lithium-Complex Extreme Pressure grease conforming to
NLGI2-ISO 320 specifications into each pin until it protrudes from the ends. These
should also be greased daily or for every 8 hours of service.
GREASING P.T.O. SHAFTS
After bringing the tractor to a complete stop, shut off the engine and remove the
P.T.O. shaft from the tractor. Slide the shaft apart to expose the grease zerk.
Grease the shaft with 5 pumps of grease and the U-joints until grease protrudes from
caps per the scheduled interval in the maintenance section.
