Assembly Section 2-3
ASSEMBLY
ADJUSTING REAR WHEELS
Raise rear of tractor onto jack-stands and adjust tires / rims all the way out.
Follow the instructions in the tractor owners manual for adjusting tires and
rims. NOTE: This may require switching the wheels to opposite sides of tractor.
Do not reinstall wheels onto tractor until valve has been mounted (cab), and all hoses
have been installed

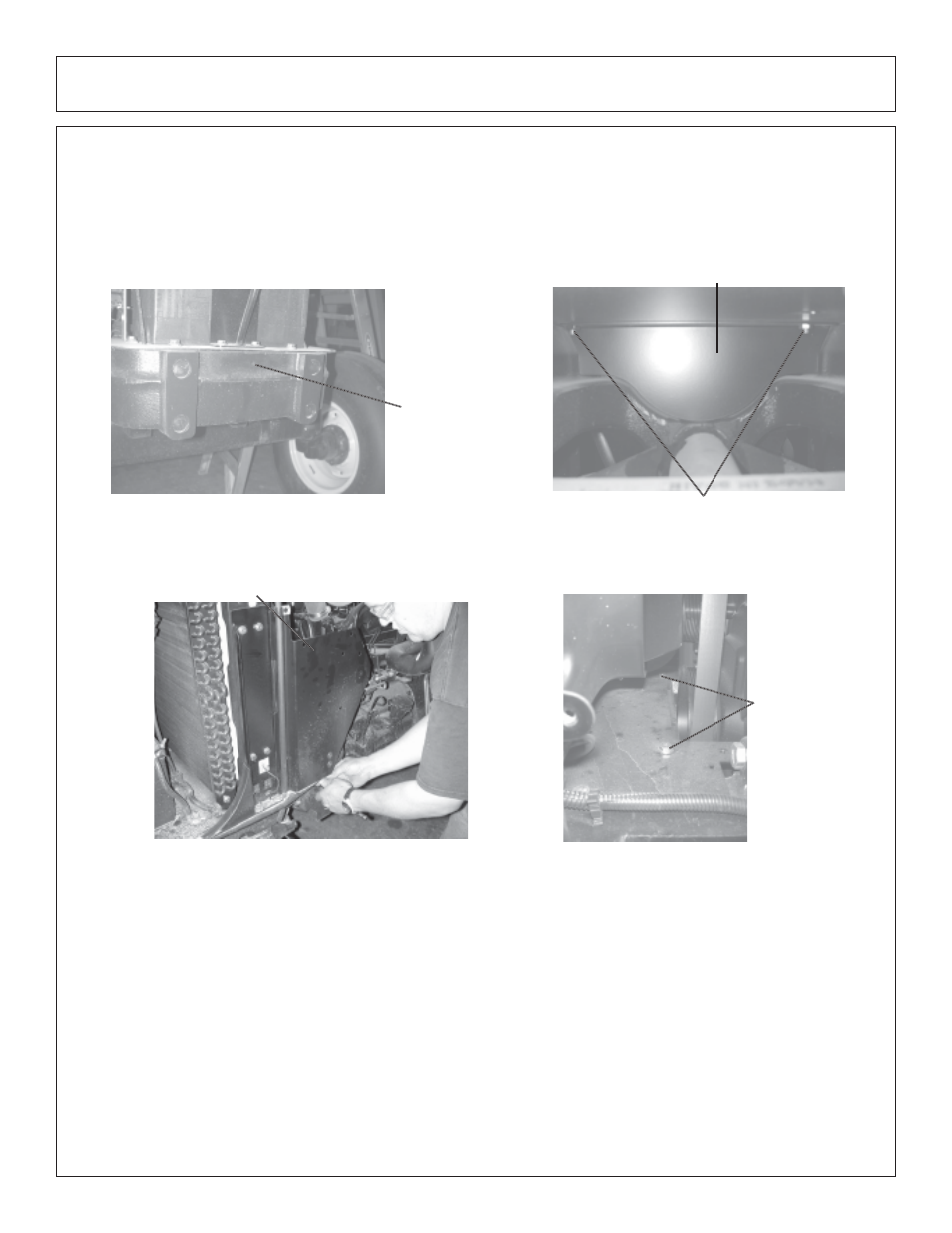

DRIVESHAFT ACCESS
To access the driveshaft of the JD-5101E, a hole will need to be cut in the front of
the tractor frame. Find the tapped marking on the front end of the tractor (shown
below.) Using a 1-1/2” hole saw, cut a hole for the driveshaft. Once the hole is cut
you will be able to look through the hole and see the driveshaft cover.
The driveshaft cover is held on by two bolts. To remove these bolts take off the
panel covering the fan. Then you will have access to the bolts on the driveshaft cover.
PRE-TAPPED
MARKING
HARDWARE TO BE REMOVED
DRIVESHAFT COVER
BOLTS TO BE
REMOVED
PANEL
