Female-thread anchor
M8 or W 3/8
Ceiling
Mounting bracket
Plain washer
Bracket mounting bolt
M8 or W 3/8
Spring washer
Bracket mounting bolt
M8 or W 3/8
Female-thread anchor
M8 or W 3/8
Ceiling
Mounting bracket
Anti-rotation screw
(such as self-tapping screws)
Plain washer
Spring washer

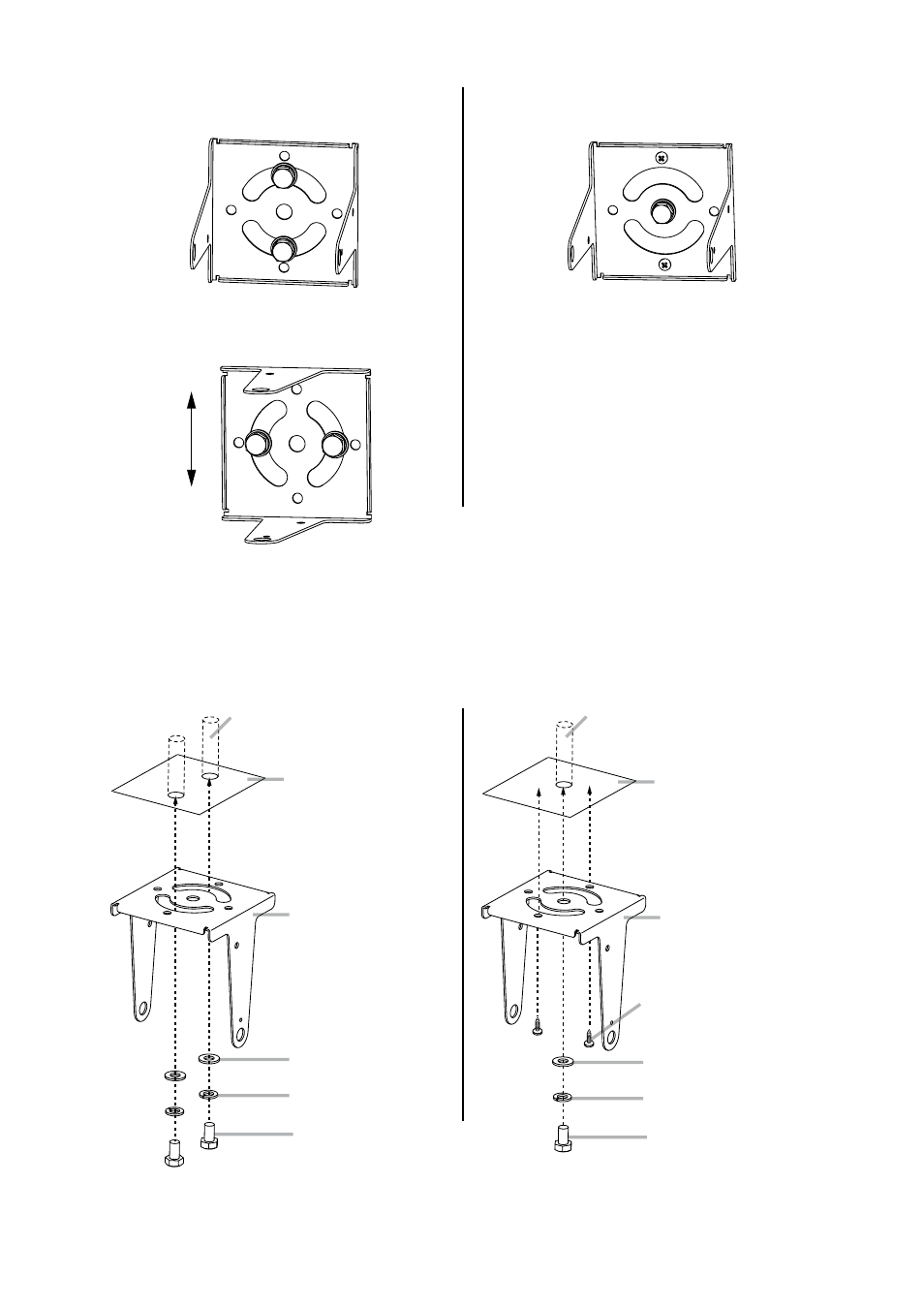

[Mounting Example 1] Ceilings or walls
[Mounting Example 2] Walls
Use this method when the camera orientation cannot
be sufficiently adjusted in Mounting Example 1.
[Mounting Example 3] Ceilings or walls
Use this method when the camera angle does not
need to be adjusted after camera installation is
completed.
Note: If the bracket is only fixed at one place using
the bracket mounting bolt, the bracket could
rotate or the bolt could become loose. To
prevent this, be sure to securely fix the bracket
at two more places using self-tapping screws
or other anti-rotation type screws.
2. Install female-thread anchors in the ceiling or wall and mount the camera mounting bracket.
