6
Camera mounting bolt
Washer-installed M8 x 14mm hex bolt
(standard accessory)
Security wire
entry hole
Bracket mounting bolt
(M8 or W 3/8)
120º
ø50 mm
12 mm
96 mm
97.6 mm
70 mm
76 mm
4 -ø6.5 mm
ø10.5 mm
Used in mounting
examples 1 and 2.
Used in mounting example 3.

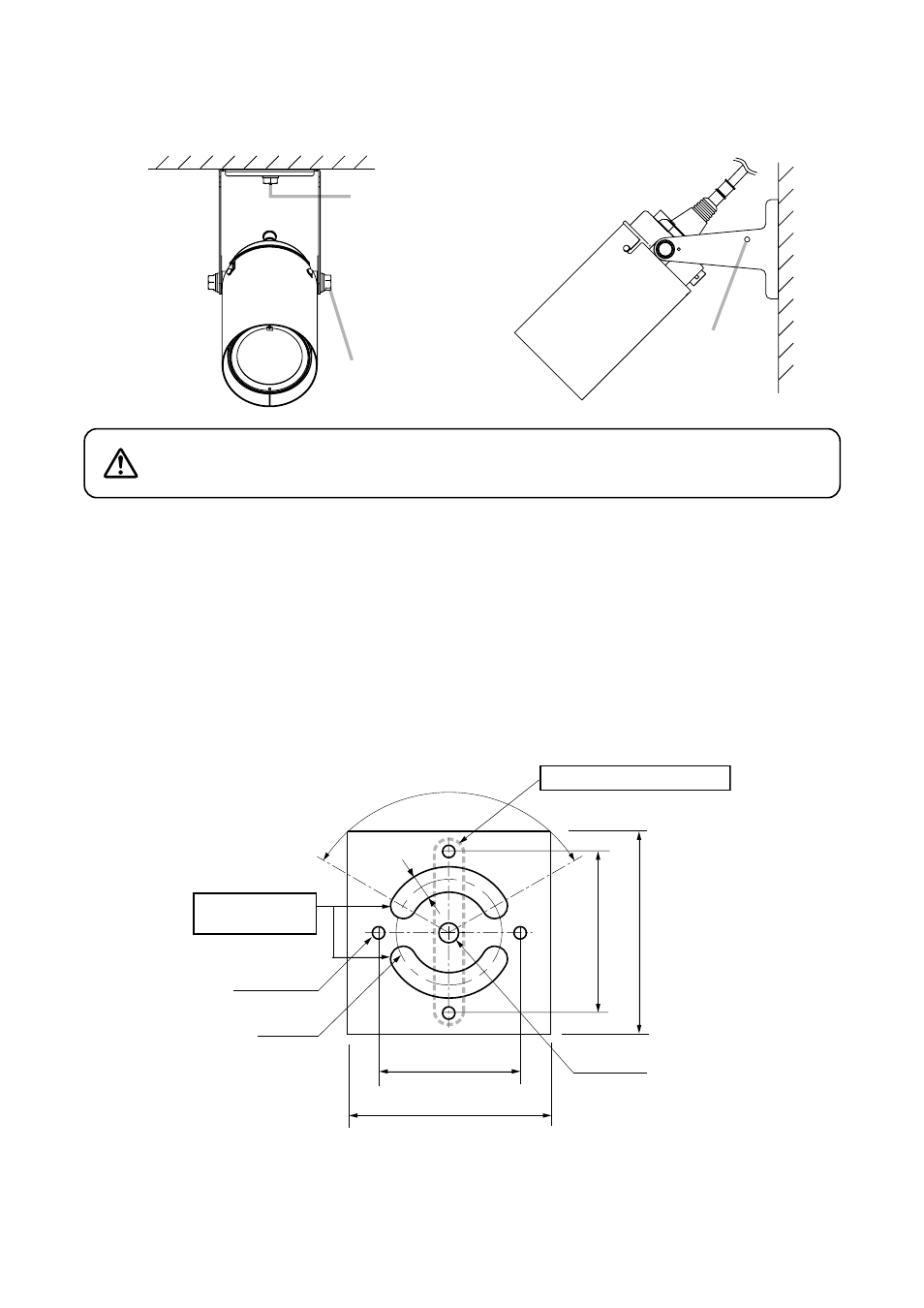

5. INSTALLATION AND CONNECTIONS
[Ceiling mounting example] [Wall mounting example]
Install the unit only in a location that can structurally support the weight
of the unit and the mounting bracket. Doing otherwise may result in the
unit falling down and causing personal injury.
WARNING
Note: Attach the security wire as required. Carefully check to confirm the cable length, cable diameter, and
hook strength, since the shock produced by a camera dropping is very high.
1. Confirm the mounting bracket’s installation location, and determine its mounting direction and position.
Three mounting methods are possible, depending on the installation location.
