Toshiba RELIABILITY IN MOTION 1700 User Manual
Page 10
TOSHIBA
10
Battery Module
UPS Connections
Standard Module Connections
The illustration on the following page shows the proper assembly of
the two modules that make up the standard unit. If additional battery
modules are being installed with the standard unit see page 19.

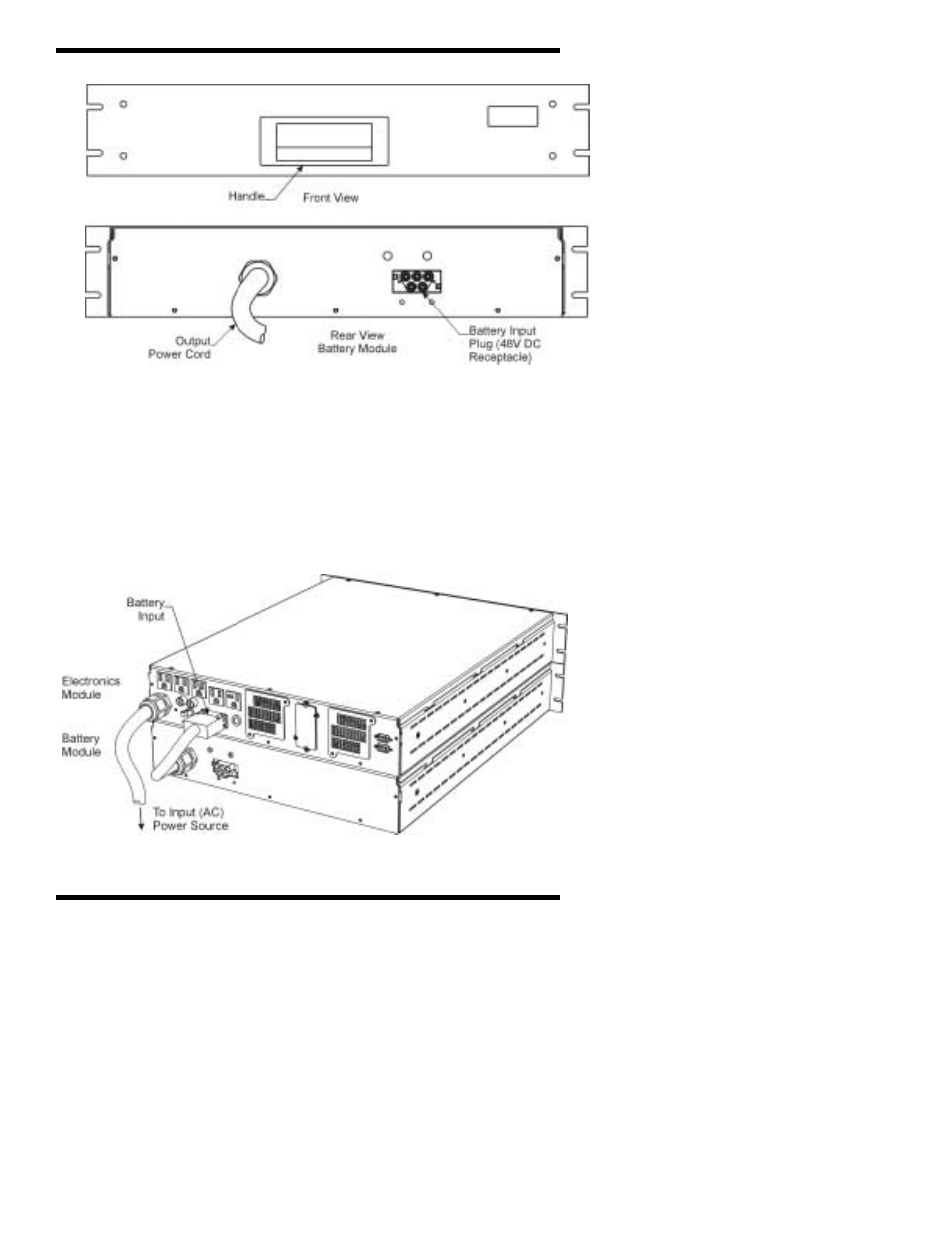

Figure 2
Battery Module Layout
Figure 3
Power Connections
