Top Innovations, Inc. 9
A
SSEMBLING THE
P
ORTABLE
P
OWER
S
TEAM
C
LEANER
CONNECTING THE EXTENSION WANDS
1. Select one of the Extension Wands, and align rear end of Wand with Main Nozzle as
shown (FIGURE 4-A).
2. Press down on the yellow locking button located on Main Nozzle. While continuing to
hold button down, slide Extension Wand onto Nozzle. Push Wand over button, and
continue to push it on unit button snaps through hole on Wand (FIGURE 4-B).
3. Now slide second Extension Wand onto end of the one you just connected as shown
(FIGURE 4-C). Push on firmly until yellow locking button on first Wand snaps through
hole on second Wand.
4. Slide Steam Jet Nozzle (with connected Utility Head) onto end of second Extension
Wand as shown (FIGURE 4-D). Push on firmly until yellow locking button on second
Wand snaps through hole on Steam Jet Nozzle.

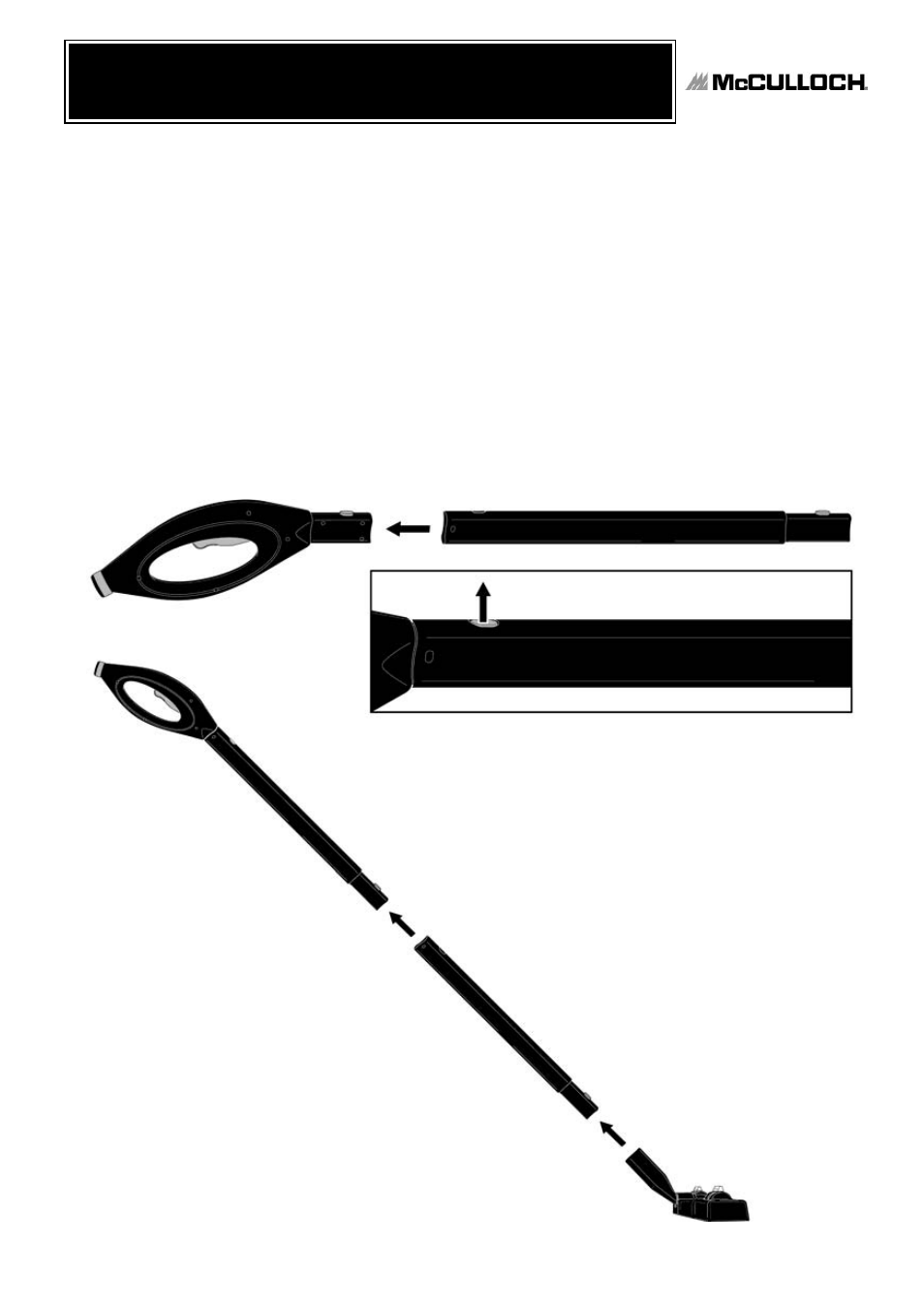

FIGURE 4
A
B
C
D
