CONNECTING THE SHOULDER STRAP
1. Grasp hook on one end of Shoulder Strap. Press down and hold lock to open hook
(FIGURE 6-A).
2. Slide hook through hole of front Strap Tab, then release lock to close hook
(FIGURE 6-B).
3. Repeat Steps 1 & 2, this time connecting opposite hook of Shoulder Strap to rear Strap
Tab.
Shoulder Strap should now be securely connected to the main unit.

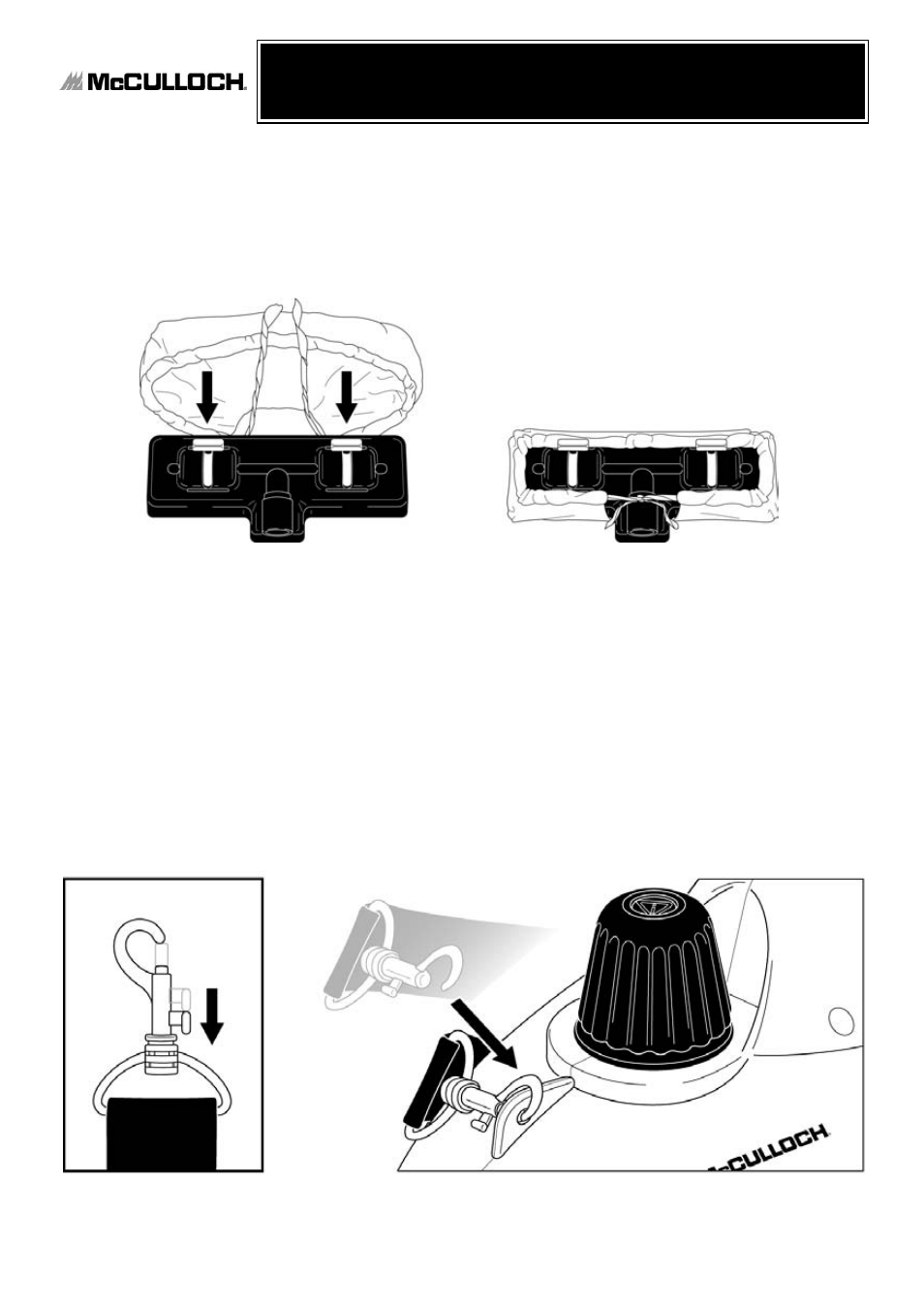

FIGURE 6
A
B
10 Top Innovations, Inc.
A
SSEMBLING THE
P
ORTABLE
P
OWER
S
TEAM
C
LEANER
ATTACHING THE CLOTH COVER
1. Wrap Cloth Cover around bottom of Utility Head, so that string-ties are positioned
around rear connection of Head (FIGURE 5-A).
2. Tie string-ties together to secure Cloth to Head (FIGURE 5-B).
FIGURE 5 A B
