EO1-19036
LS-780 SERIES
Volume Switch
LED(Green/Red): Indicates scanner status using two-color LED (green and red).
(The red LED lights when the scanner is ready to read a barcode and the green
LED lights when a barcode is read normally.)
Push Switch: Pressed to return the scanner to reading standby state in auto-power off mode.)
Volume Switch: Adjusts the buzzer volume of the scanner. Each time the volume switch is
pressed, the buzzer volume changes as follows:
fi Max. Volume fi Loud Volume fi Medium Volume fi Min. Volume
Default: Loud Volume
Each time the volume switch is pressed while pressing the push switch, the buzzer tone
changes as follows:
fi Low Tone fi Medium Low tone fi Medium Tone fi Medium High Tone fi High Tone fi Highest Tone
Default: Low Tone
3.3 Accessory
Owner’s Manual (1 pc.) Connector Cover (1 pc.) Double Sems Screw (1 pc.)
3.4 Optional Parts
Interface Cable (OCIA)
Model Name: IFC-750-OC
Interface Cable (RS-232C)
Model Name:
IFC-750-RS-09F (26P-9P )
IFC-750-RS-25F (26P-25P )
IFC-750-RS-25M (26P-25P ) Interface Cable (USB)
Model Name: IFC-780-USB
TEC Laser Scanner LS-780 SERIES
TOSHIBA TEC CORPORATION
Owner’s Manual

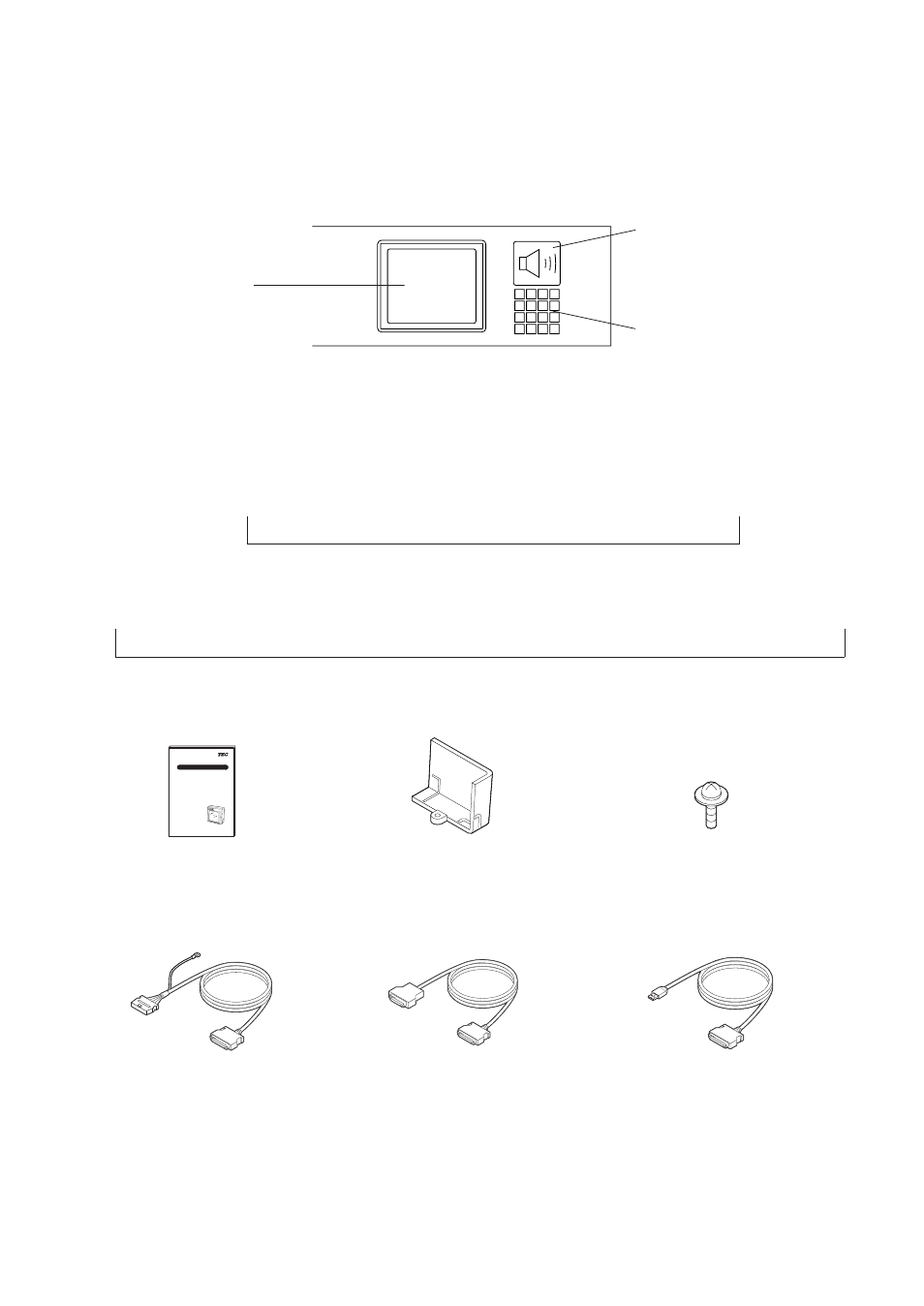

3.2 Switch Panel
LED (Green/Red)
Push Switch
