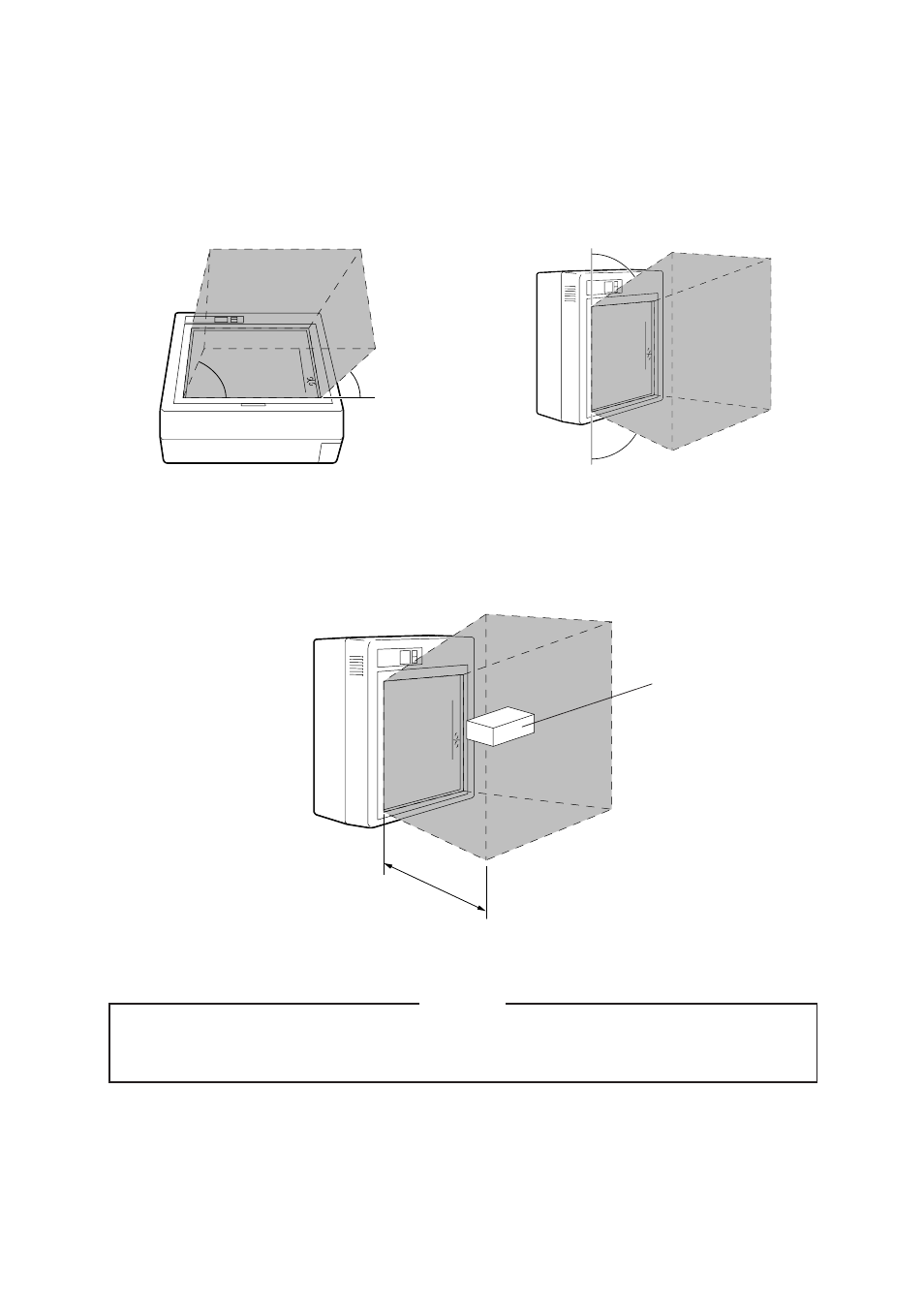

5.2 Effective Scanning Zone
90 81.8
46.3 (LS-780H)
5.3 How to Read
Target the center of the Scanner Window so that the scanner can read a barcode of an item in the range at 50
mm to 200 mm above from the Scanner Window surface.
75
53.5 (LS-780H)
79
53.5 (LS-780H)
CAUTION
1. Do not contact the item and the Scanner Window.
2. Moving the item perpendicularly to the Scanner Window makes it difficult to read the barcode.
Readable Barcode: EAN/JAN-13, EAN/JAN-8, UPC-A and UPC-E, EAN128,
EAN-13/8 and UPC-A/E with Supplemental 2 or 5 digits,
ITF (Interleaved 2 of 5),NW7 (CODABAR), CODE39, CODE93, CODE128
Article
50 mm to
MAX 200 mm
