Quatech 802.11B/G - Manual (Page 15)

Airborne Enterprise Module Databook Quatech, Inc.
100-8080-120 7/15/2010 15
5.6 Connector Definition
There are a total of three connectors to the radio:
J1: 36 pin Digital Host interface.
Hirose:
DF12-36DP-0.5V(XX) (0.50mm (.020") Pitch Plug, Surface
Mount, Dual Row, Vertical, 4.00mm Stack Height, 36 Circuits)
J2: Primary RF connector for 802.11b/g antenna.
Hirose U.FL
J3: Secondary RF connector for 802.11b/g antenna.
Hirose U.FL.

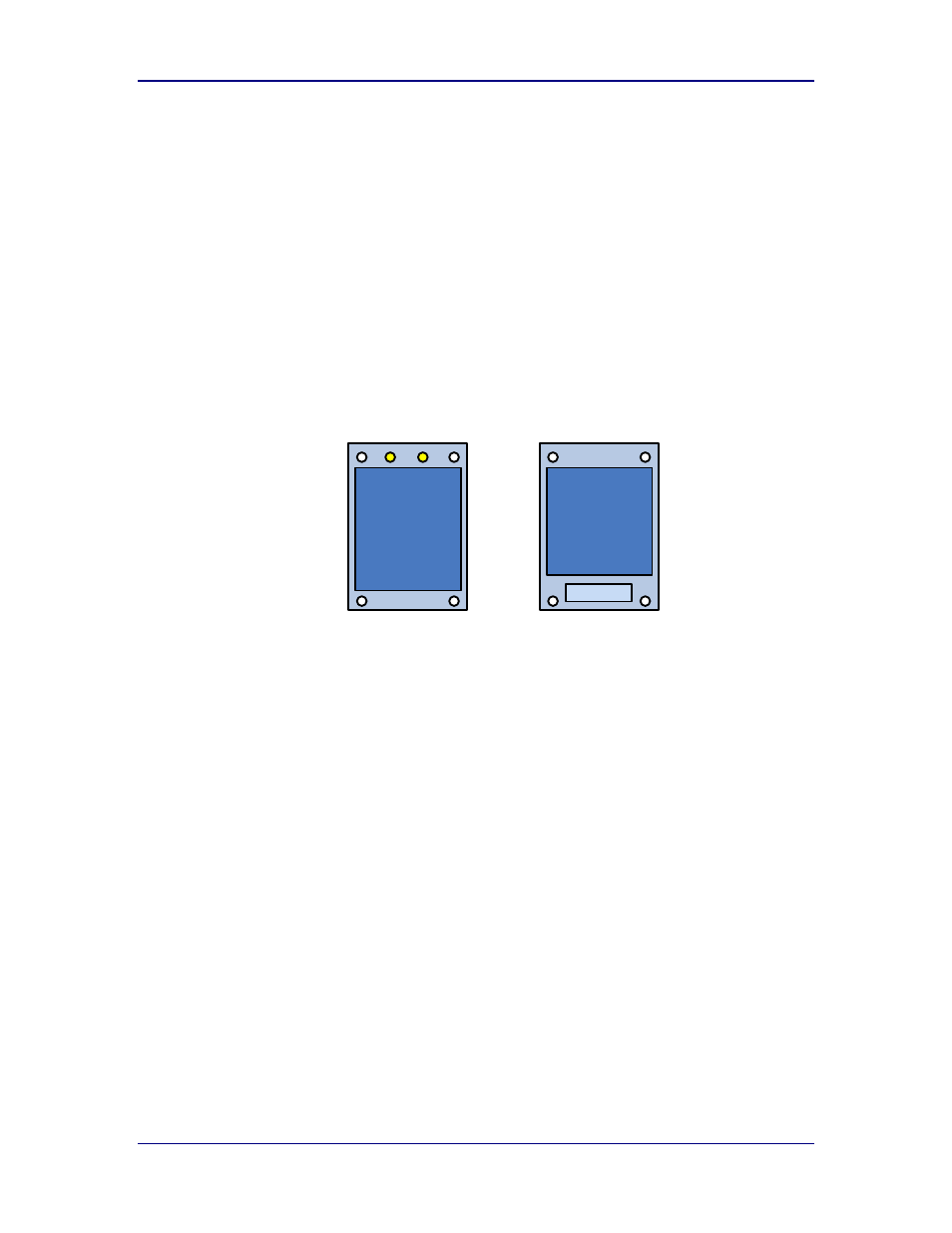

RF Shield
J2
Top View
Bottom
View
J1
Component
Area
J3
