Installing the Bridge Hardware

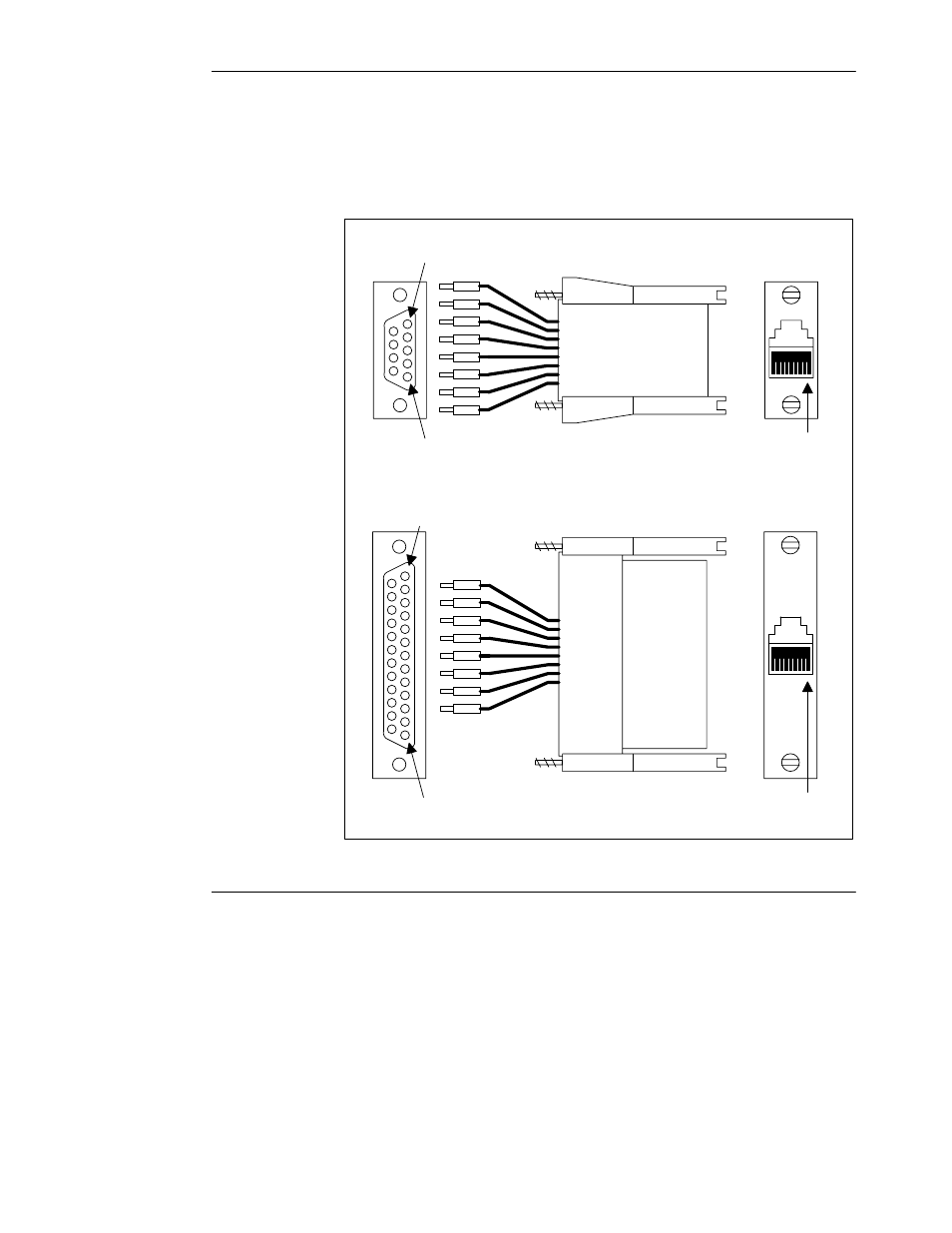

Figure 9 shows the layout of DB9–RJ45 and DB25–RJ45 Adapter Kits available from
Schneider Automation. Each kit contains three jumper wires and a pin insertion tool.
Follow the pinout diagrams in Figure 8 for assembling the adapter for your product.

Figure 9

DB to RJ45 Adapter Kits

DB9M (110 XCA 203 01)

DB9F (110 XCA 203 02)

DB25M (110 XCA 204 01)

DB25F (110 XCA 204 02)

Pin 1
