7
En

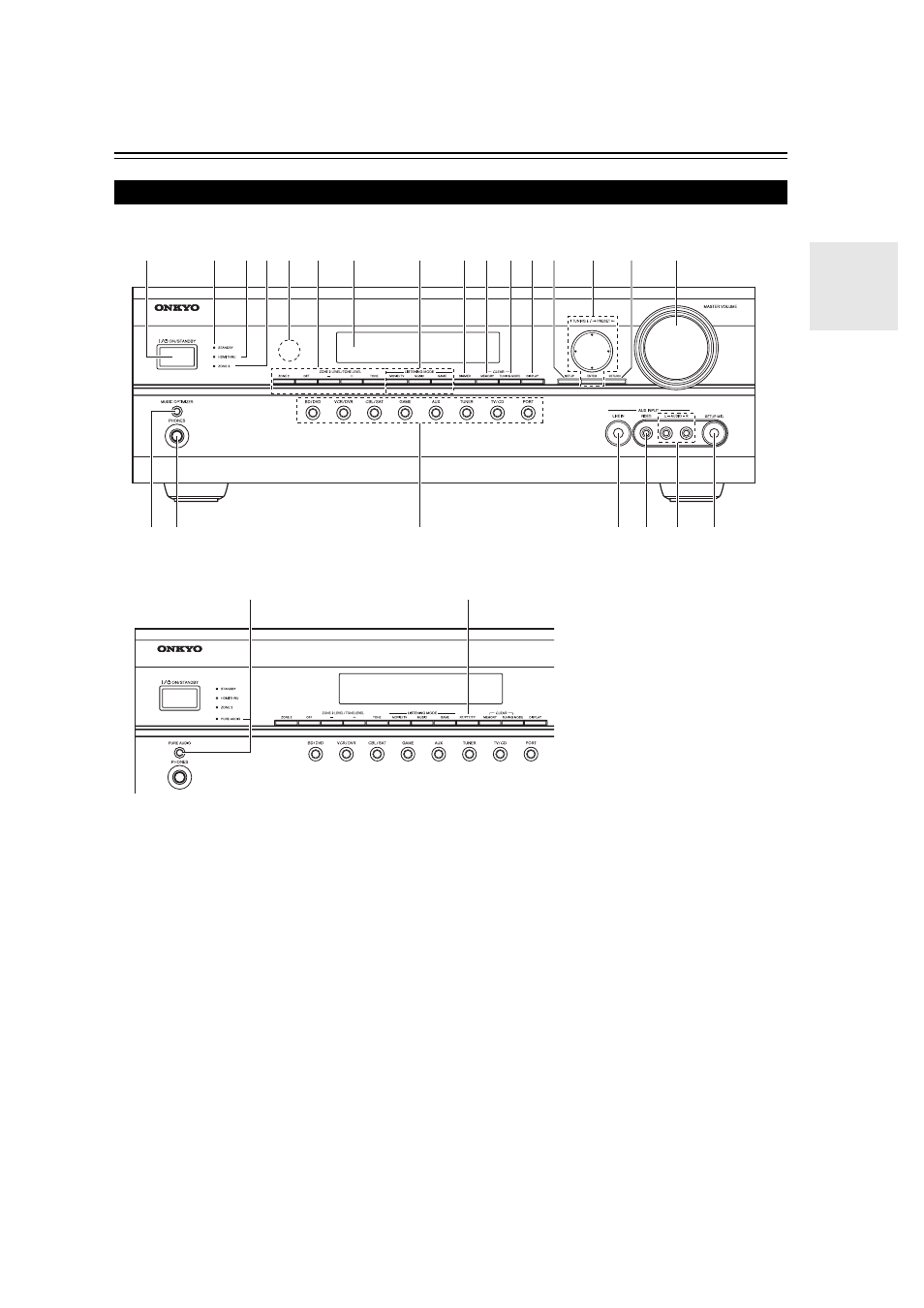

Front & Rear Panels
North American models
European and Asian models
The actual front panel has various logos printed on it. They are not shown here for clarity.
The page numbers in parentheses show where you can find the main explanation for each item.
ON/STANDBY button ( ➔ 20)
STANDBY indicator ( ➔ 20)
HDMI THRU indicator (
➔
42)
ZONE 2 indicator (
➔
47)
Remote control sensor (
➔ 4)
ZONE 2, OFF, ZONE 2 LEVEL/TONE LEVEL
and
TONE buttons (
➔
45, 47 to 48)
Display (
➔ 8)
LISTENING MODE buttons ( ➔ 29)
DIMMER button (North American models) ( ➔ 21)
MEMORY button (
➔
26)
TUNING MODE button ( ➔ 25)
DISPLAY button ( ➔ 21)
SETUP button ( ➔ 34)
TUNING, PRESET ( ➔ 25 to 26), arrow and
ENTER buttons
RETURN button
MASTER VOLUME control ( ➔ 21)
MUSIC OPTIMIZER button (North American
models) (
➔
21, 43)
PHONES jack (
➔
22)
Input selector buttons (
➔ 21)
AUX INPUT LINE IN jack ( ➔ 17)
AUX INPUT VIDEO jack ( ➔ 17)
AUX INPUT
AUDIO jacks ( ➔
17)
SETUP MIC jack ( ➔ 23)
PURE AUDIO button and indicator (European and
Asian models) (
➔
29)
RT/PTY/TP button (European and Asian models)
(
➔ 26)
Front Panel
