Connecting to the ONKYO Separate Collection Series components
Connecting to the audio connector
Before connecting
• Do not connect the unit’s AC power cord (mains lead) to a wall outlet (the mains) until you have
completed all the other connections, including and AC OUTLET connections on page 10. Refer to
“Connecting to components other than the Separate Collection Series” on page 11 and “Connect-
ing speaker systems” on page 14.
• On each pair of connectors, a red connector (marked R) corresponds to the right channel, and a
white connector (marked L) to the left channel. Connect white plugs of audio cables to L connectors
and connect red plugs of audio cables to R connectors.
• Please refer to the instruction manual for each component when you make any connections.
• Insert the plug securely. If the connection is incomplete, noise or malfunction may result.
Improper connection
Insert completely
• When you use a digital audio optical cable, do not bend it sharply nor coil it tightly.
• Bundling an audio connection cable with the power cord or speaker cord may degrade the sound
quality.
• Be sure to use the with each component (not supplied with the A-905X) to connect to the
remote control jack. If the connection is incomplete, you will be unable to operate the device using
the remote controller.
• CD players and MD recorders use heat-sensitive parts. Do not place them on top of the amplifier.
Note:
To connect both the MD recorder MD-105X and stereo cassette tape deck K-505X to the unit
Connect the MD recorder to the unit following the “Connections for combination example 2” on the next
page and connect the stereo cassette tape deck to the unit following the “Connections for combination
example 1.”

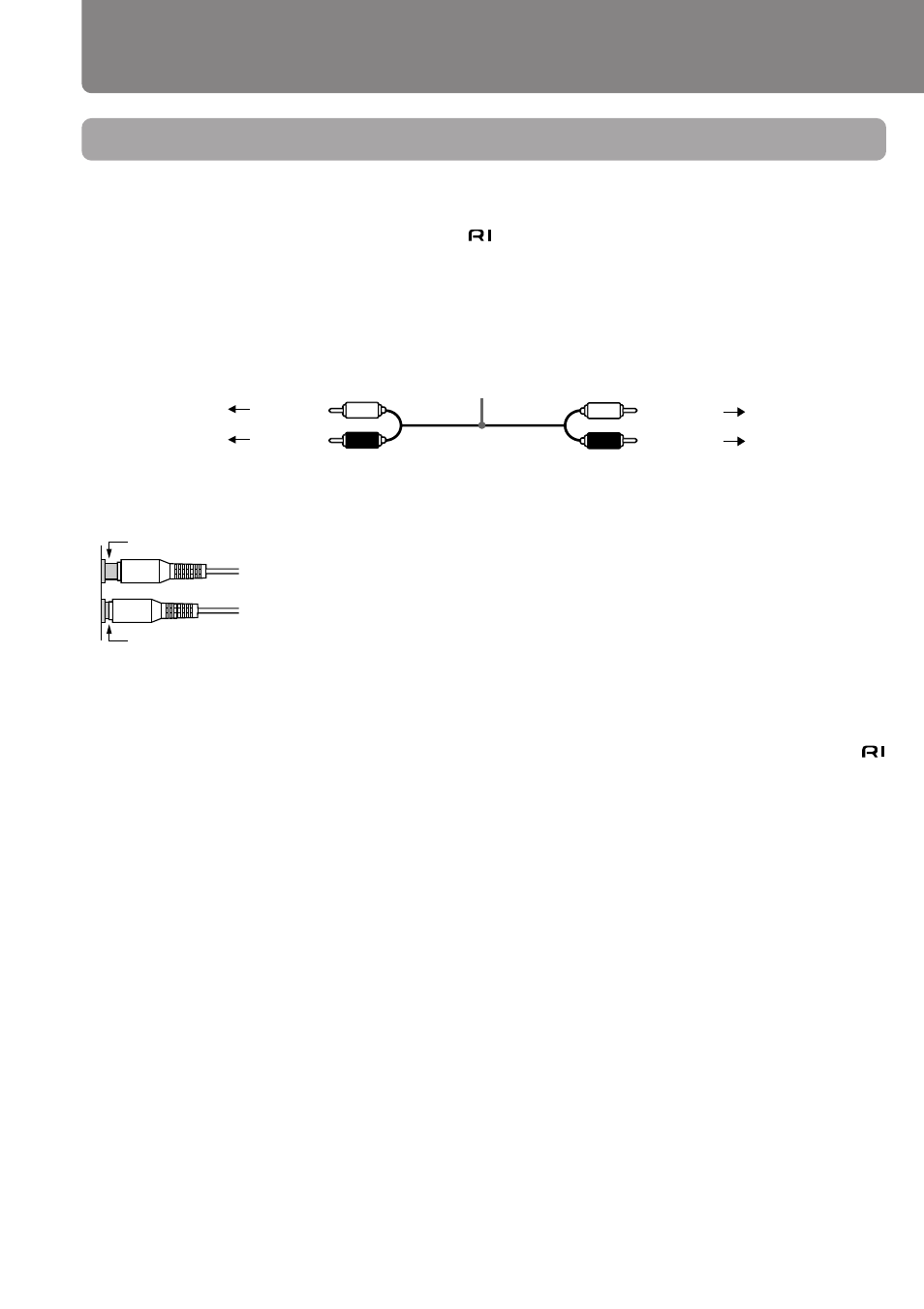

Audio connection cable
To L connector (White)
To R connector (Red)
(White) To L connector
(Red) To R connector
