Connecting to components other than the Separate Col-
lection Series
Connecting a sound processor
You can connect a sound processor (e.g. graphic equalizer, surround processor, etc.) to the unit.
Before connecting
• Disconnect the jumper plugs using the PROCESSOR connectors.
– Please retain them for future use.
– Never connect the jumper plugs to the other connectors, as this may cause the unit to malfunc-
tion, so that the sound is not reproduced.
– If you do not use the PROCESSOR connectors, reconnect the jumper plugs to them firmly.

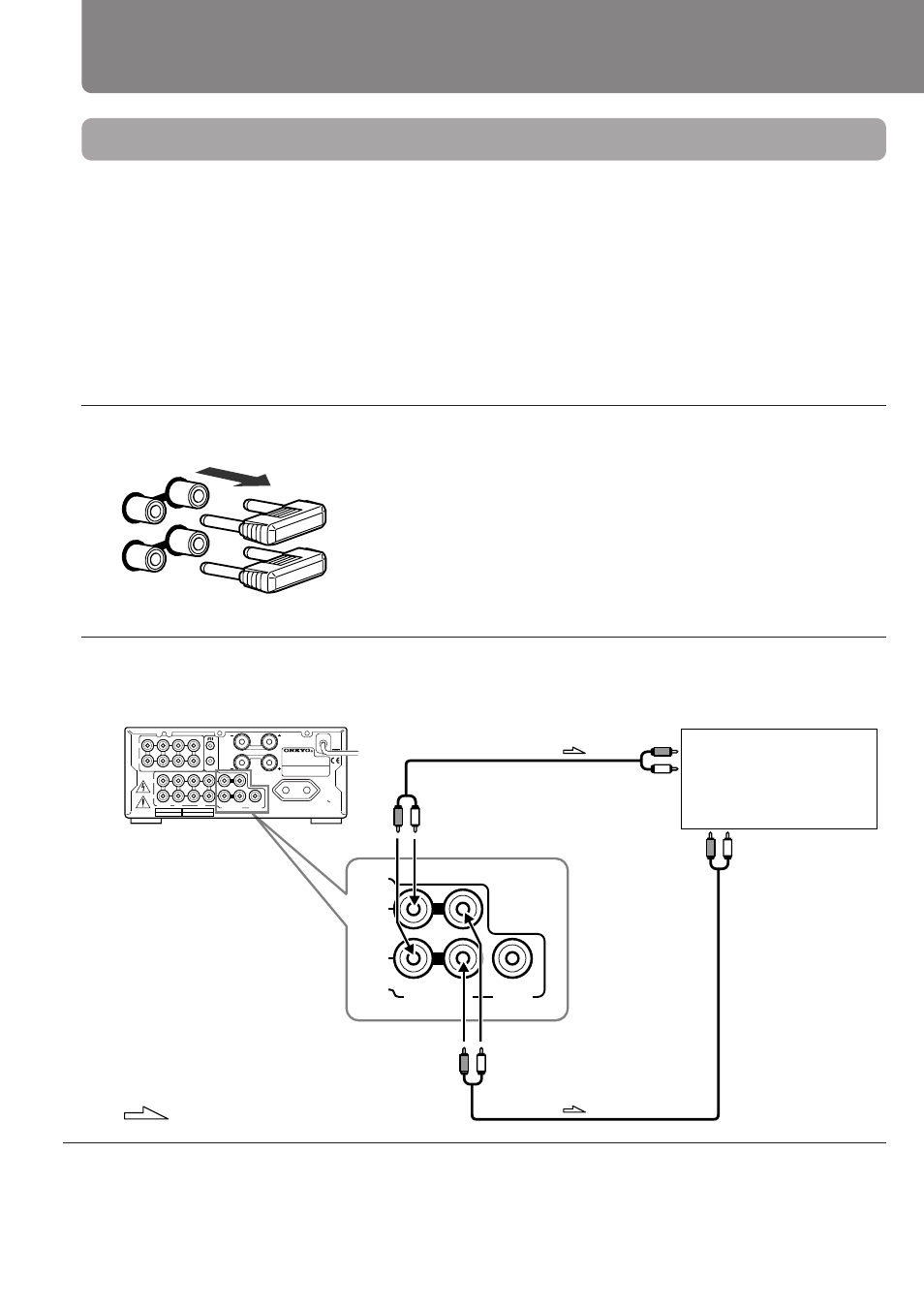

Connections
2
Connect the sound processor to the unit.
This unit
1
Remove the jumper plugs.
Jumper plug
Sound processor
: Signal flow
INPUT
OUTPUT
OUT
IN
PROCESSOR
OUT IN
IN(PLAY) OUT(REC)
CD TUNER
PROCESSOR
MD
L
R
SUBWOOFER
PRE OUT
L
R
IN(PLAY)
L
R
LINE-1 LINE-2
OUT IN
L
R
TAPE
SPEAKERS
REMOTE CONTROL
OUT(REC)
IN(PLAY) OUT(REC)
CD TUNER PROCESSOR MD
L
R
SUBWOOFER PRE OUT
AC OUTLET
AC230V 50Hz SWITCHED
100W MAX.
