Connecting a sub-woofer
Before connecting
• If your sub-woofer isn’t equipped with an amplifier, connect a separate amplifier to the unit first,
then connect the sub-woofer to that amplifier.
• The SUBWOOFER PRE OUT connector supplies the left and right mixed monaural signals to the sub-
woofer.

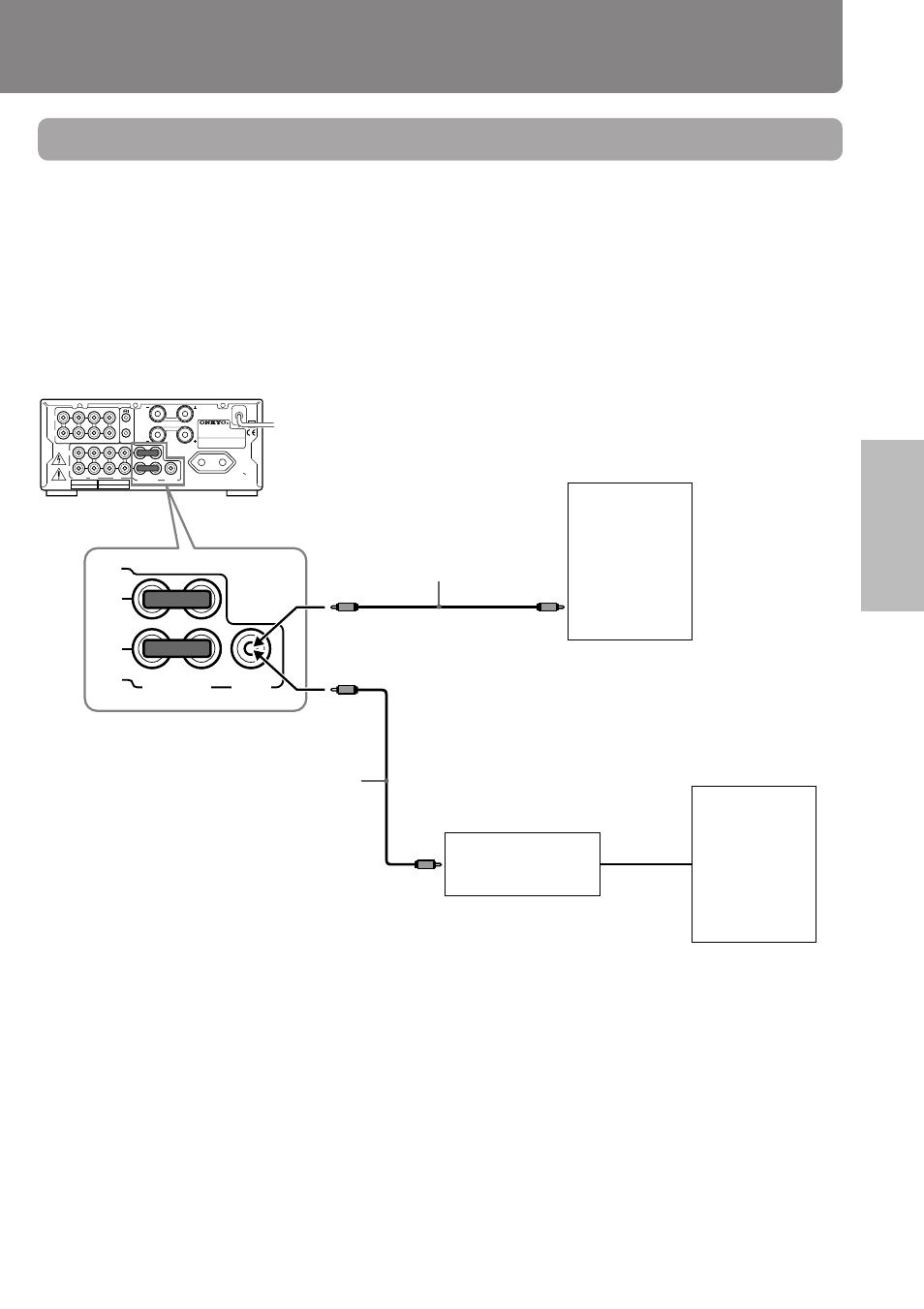

Connections
This unit
Sub-
woofer
Amplifier
Sub-
woofer
Audio connection cable
Audio connection cable
or
When connecting a sub-woofer with a built-
in amplifier
When connecting a sub-woofer with no built-
in amplifier
L
R
IN(PLAY)
L
R
LINE-1 LINE-2
OUT IN
L
R
TAPE
SPEAKERS
REMOTE CONTROL
OUT(REC)
IN(PLAY) OUT(REC)
CD TUNER PROCESSOR MD
L
R
SUBWOOFER PRE OUT
AC OUTLET
AC230V 50Hz SWITCHED
100W MAX.
A-905X MODEL NO.
INTEGRATED
STEREO AMPLIFIER
RATING;
OUT IN
PROCESSOR
SUBWOOFER
PRE OUT
