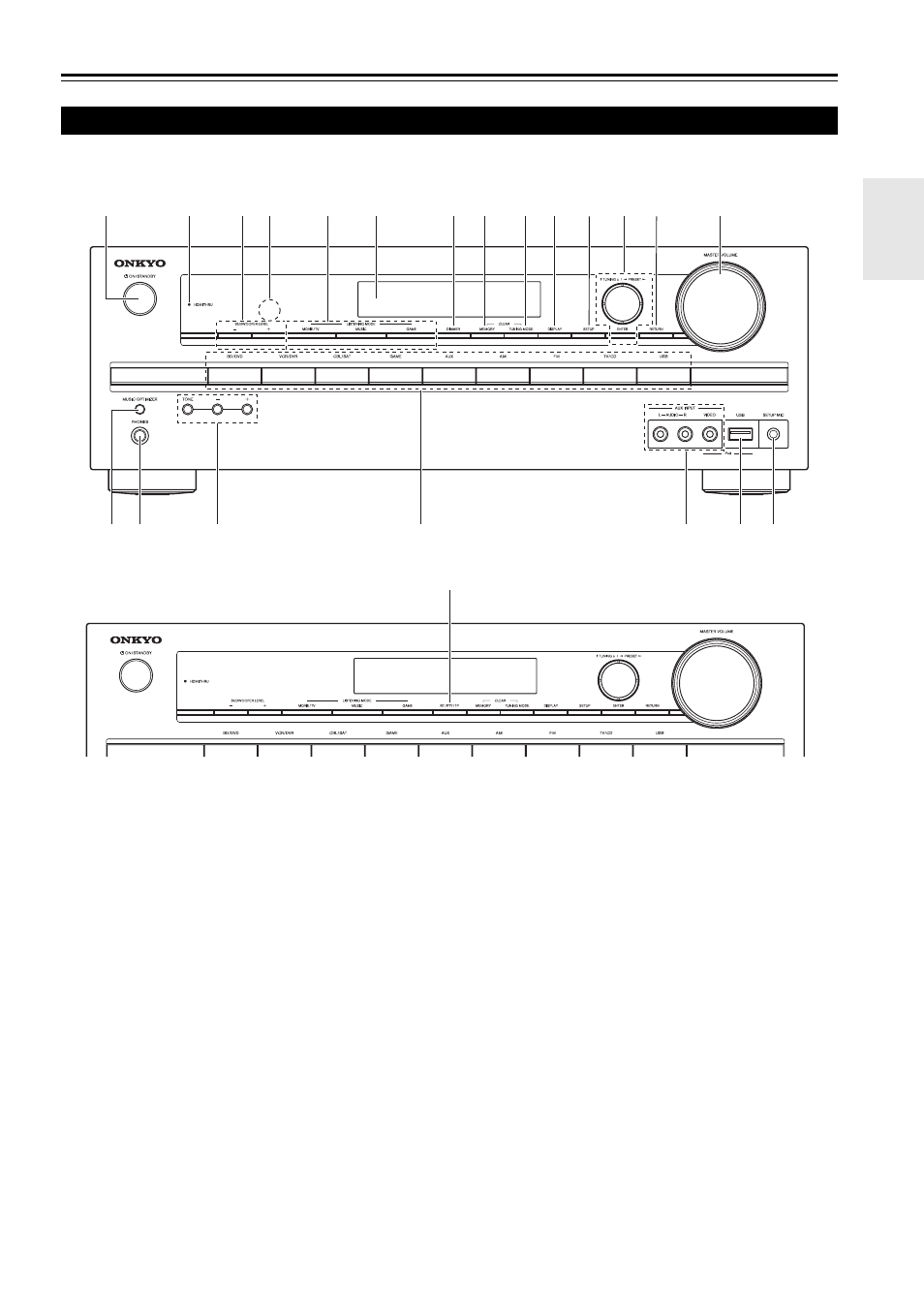

Front & Rear Panels
The page numbers in parentheses show where you can find the main explanation for each item.
ON/STANDBY button (18)
HDMI THRU indicator (42)
SUBWOOFER LEVEL buttons (43)
Remote control sensor ( 4)
LISTENING MODE buttons (27)
Display ( 8)
DIMMER button (North American and Brazilian
models) (
32)
MEMORY button (22)
TUNING MODE button (21)
DISPLAY button (32)
SETUP button (34)
TUNING, PRESET (21 to 22), arrow and ENTER
buttons
RETURN button
MASTER VOLUME control (19)
MUSIC OPTIMIZER button (32, 44)
PHONES jack (33)
TONE and Tone Level buttons (43)
Input selector buttons ( 19)
AUX INPUT AUDIO and VIDEO jacks (15, 33)
USB port (15)
SETUP MIC jack (24)
RT/PTY/TP button (Asian models) (23)
Front Panel
(North American and Brazilian models)
(Asian models)
