Connecting Your Components —Continued

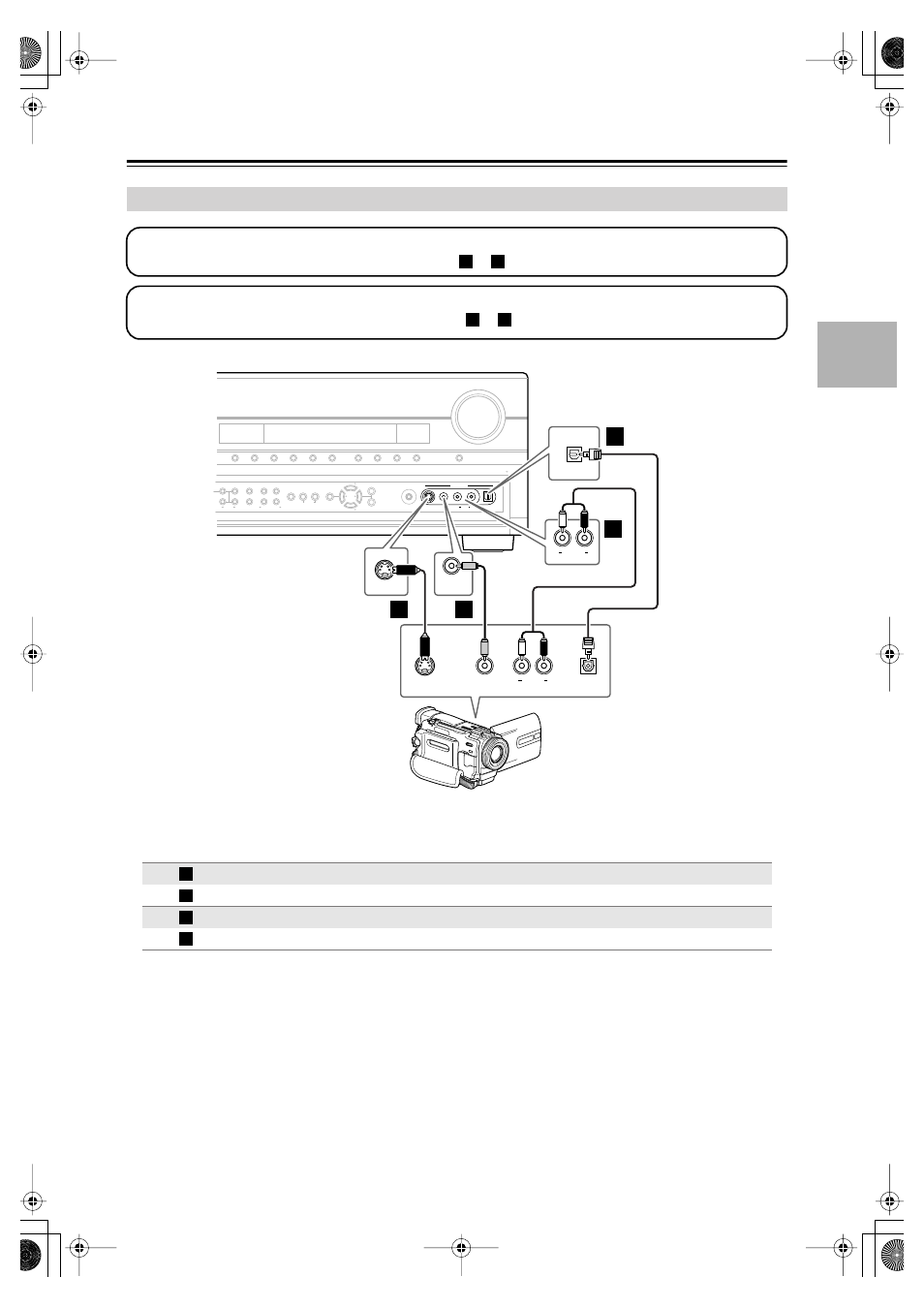

Connecting a Camcorder or Other AV Component
Connection AV receiver Signal flow Camcorder
AUX 2 INPUT S VIDEO
⇐
S-Video output
AUX 2 INPUT VIDEO
⇐
Composite video output
AUX 2 INPUT L/R
⇐
Analog audio L/R output
AUX 2 INPUT DIGITAL
⇐
Digital optical output
Step 1: Video Connection
Choose a video connection that matches your camcorder (
or ), and then make the connection. A B
Step 2: Audio Connection
Choose an audio connection that matches your camcorder (
or ), and then make the connection. a b
