Front & Rear Panels—Continued
A COAXIAL DIGITAL AUDIO OUT [21]
This coaxial digital audio output can be connected
to a coaxial digital audio input on a hi-fi amp, AV
receiver, or surround sound decoder (Dolby Digital,
DTS).
B S VIDEO VIDEO OUT[20]
This connector can be used to connect a TV or pro-
jector with an S-Video input.
C COMPONENT VIDEO OUT [20]
These sockets output component video and can be
connected to an component video input on a TV or
projector.
D VIDEO OUT [18]
This RCA/phono connector can be used to connect
a TV or projector with a composite video input.
E ANALOG AUDIO OUT [18]
These RCA/phono connectors can be connected to
analog audio inputs on your TV, hi-fi amp, or AV
receiver.
F AV CONNECTOR [20]
This SCART output can be connected to a TV or
projector with a SCART input by using the supplied
SCART cable. This SCART connector outputs 2-
channel stereo audio, composite video, S-Video,
and RGB video.
G AC INLET [22]
The supplied power cord is connected here. The
other of the power cord should be connected to a
suitable wall outlet.

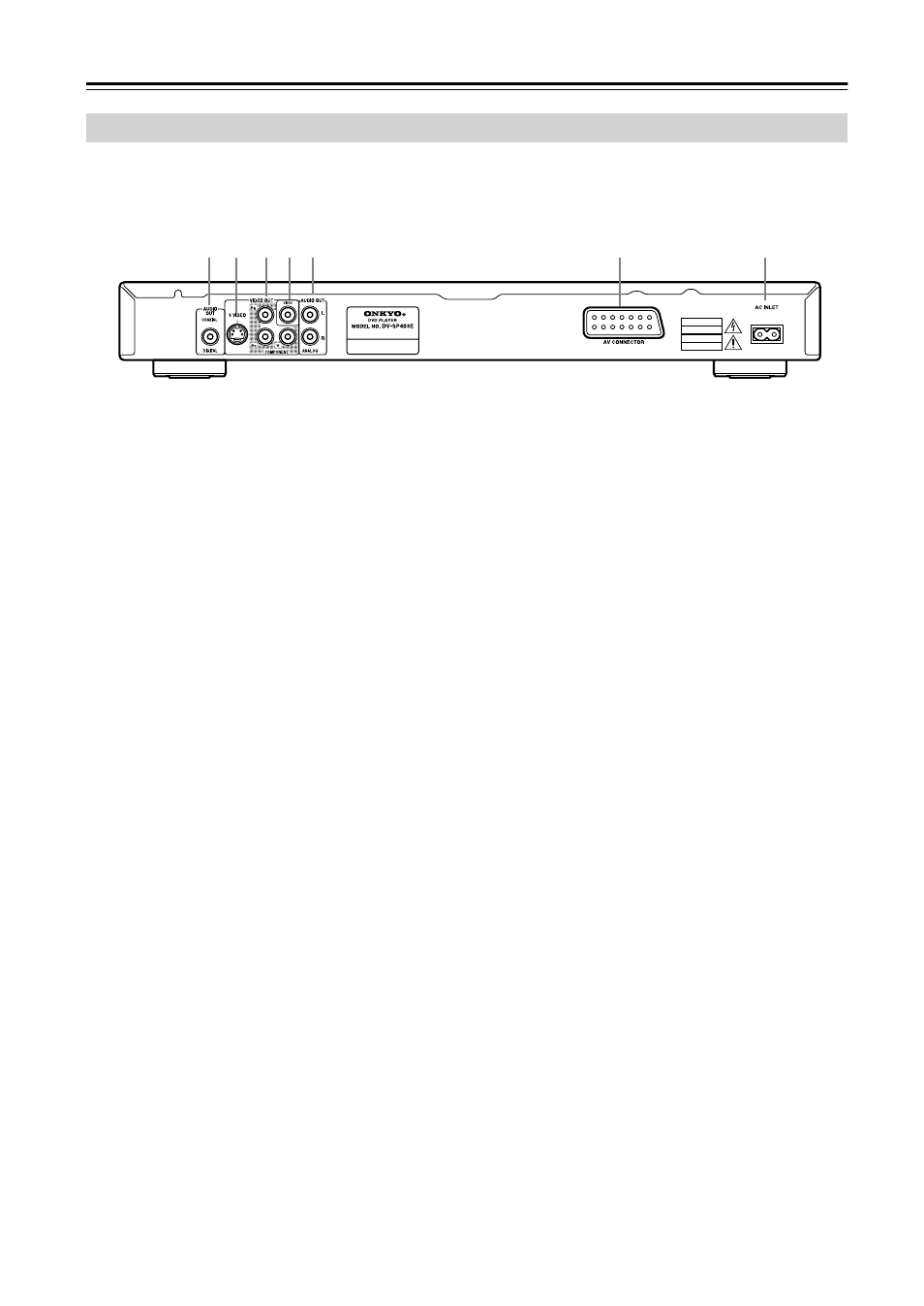

Rear Panel
1 2 3 7 6 5 4
