Other Connections
1 Refer to "Antenna Connections" to connect the STB to the Smart Antenna (or a different one if you wish).
2 Refer to “TV/Monitor Connections” to connect STB and the TV with a video cable.
3 Use a standard audio cable to connect the AUDIO OUT jacks (L, R) on the STB to the audio input jacks
(L, R) on the stereo.
4 Plug the AC power cord of the stereo into the AC outlet, then turn the stereo on.
5 Set the stereo to the input mode to which you connected the audio from the STB.
Refer to your stereo’s manual for details.
6 Plug the AC power cord of STB into the AC outlet and turn it on.
D. AU D I O O U T
C O A X .
L P b
P r
L
R
1 2
Y C V B S
O U T
C O M P.
O U T
A N T.
C T L
D. AU D I O
O U T DV I COMP.
DV I - D H D C P O U T OPT
S - V I D E O
O U T
RESOLUTION
SELECT
1 0 8 0 i / 7 2 0 p / 4 8 0 p
A N T. I N
AU D I O O U T
STEREO COMPONENT
Rear panel of STB
Audio cable
To audio input jacks
(L, R)
NOTE:
Audio cable is not included. e.g.: Connection to STEREO COMPONENT

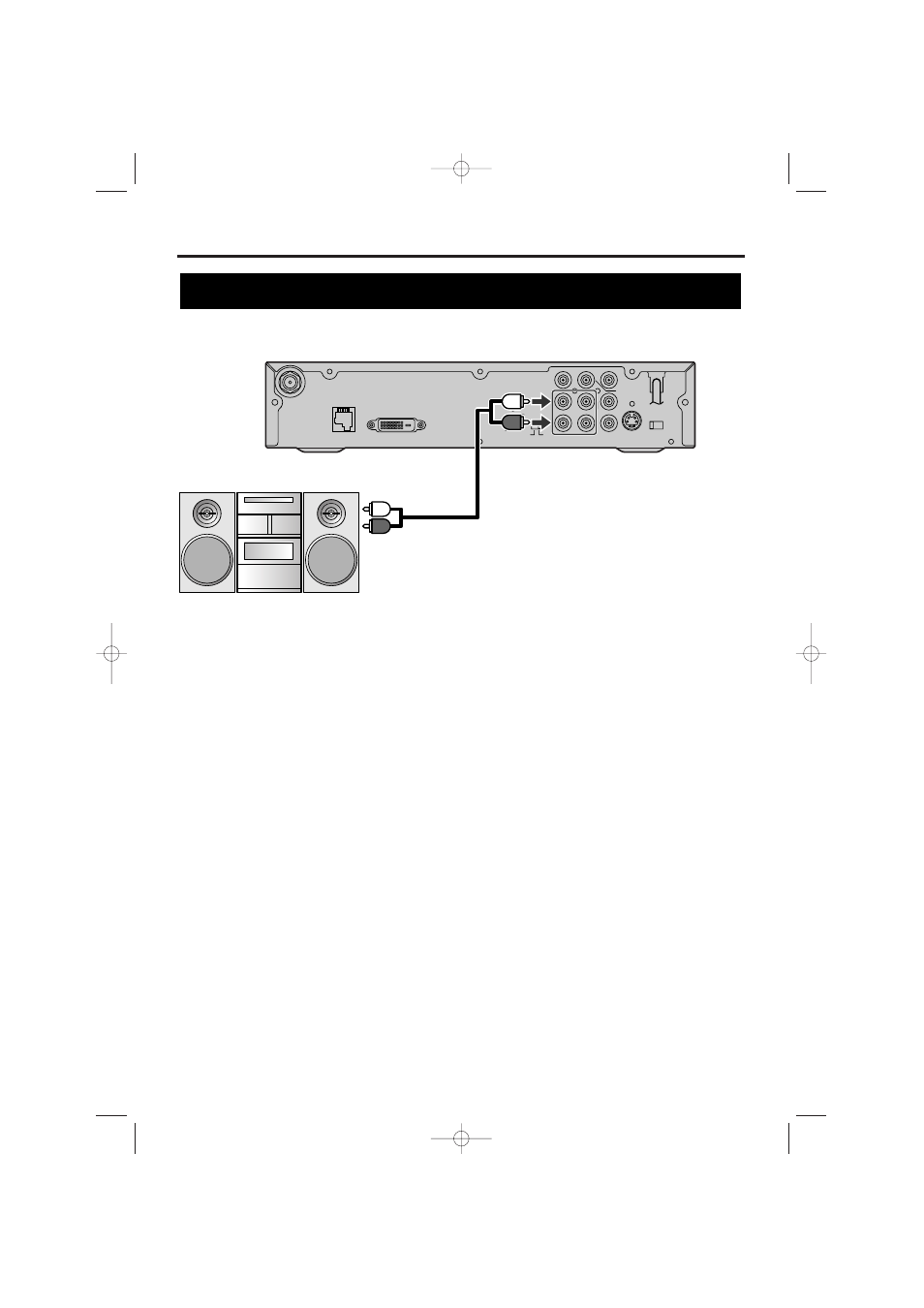

STB connection to a standard stereo system
