20

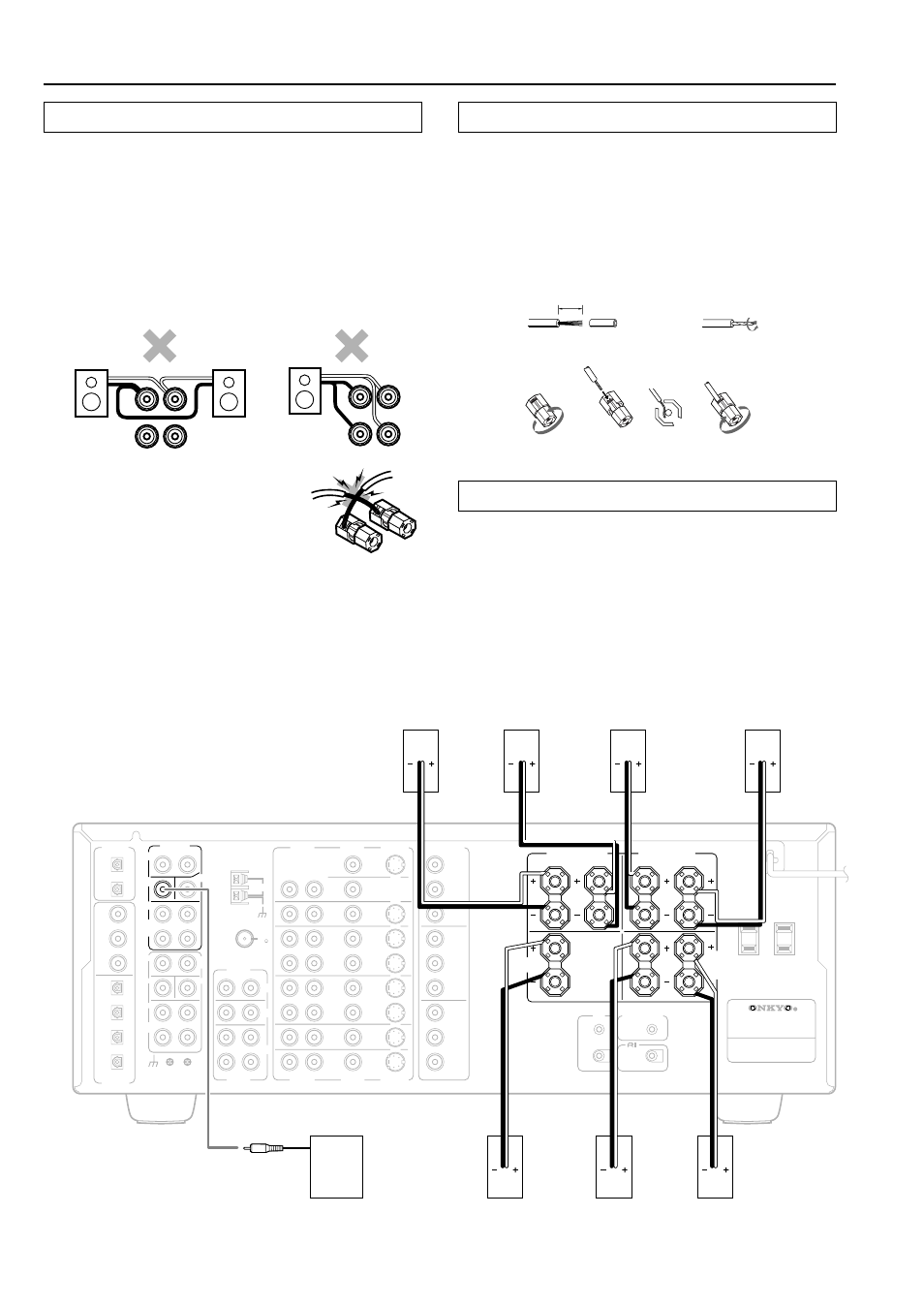

Connecting a subwoofer
Use the PRE OUT SUBWOOFER jack to connect a subwoofer with
a built-in power amplifier. If your subwoofer does not have a built-in
amplifier, connect an amplifier to the PRE OUT SUBWOOFER jack
and the subwoofer to the amplifier.
Connecting the speaker cable
1. Strip away 5/8 inch (15 mm) of wire insulation.
2. Twist wire ends very tight.
3. Unscrew
4. Insert wire
5. Screw
Front left
speaker
Front right
speaker
Surround left
speaker
Surround right
speaker
Connecting speakers
Center
speaker
Subwoofer
• Be sure to connect the positive and negative cables for the
speakers properly. If they are mixed up, the left and right signals
will be reversed and the audio will sound unnatural.
• Do not connect more than one speaker cable to one speaker
terminal. Doing so may damage the TX-DS898.
• Connect either your surround back speakers or the speakers you
will be using in the remote zone (Zone 2) to the SURR BACK
SPEAKERS/ZONE 2 SPEAKERS terminals (see page 21).
Connecting speakers
Caution:
Connect only speakers with an impedance between 4 and 16
Ω to
the TX-DS898. If the impedance of even one speaker is between 4
and 6
Ω, be sure to set the speaker impedance setting
accordingly (see page 28).
• To prevent damage to circuitry,
never short-circuit the positive (+)
and negative (–) speaker wire.
NO!
Surround
Back left
speaker
Surround
Back right
speaker
DIGITAL
OUTPUT
PRE OUT
ANTENNA
DIGITAL
INPUT
OPT
2
COAX
2
3
1
2
3
4
FRONT
SUB
SURR
CENTER
R L
AUDIO
R L
PH
CD
OUT
IN
TAPE
R L
AUDIO VIDEO S VIDEO
MONITOR
OUT
R L
OUT
IN
OUT
IN
OUT
IN
IN
IN
ZONE 2
DVD
VIDEO 1
VIDEO 2
VIDEO 3
VIDEO 4
AUDIO AUDIO VIDEO S VIDEO
COMPONENT
VIDEO
Y
P B
P R
OUTPUT
INPUT 1
Y
P B
P R
INPUT 2
Y
P B
P R
FRONT SPEAKERS
L R L R
SURR SPEAKERS
CENTER
SPEAKER
R L
AC OUTLETS
AC 120 V 60 Hz
SWITCHED
TOTAL 120W 1A MAX.
I R
IN
OUT
12V TRIGGER
ZONE 2
REMOTE
CONTROL
1
1
OPT
AV RECEIVER
MODEL NO. TX-DS 898
GND
AM 4 OHMS MIN. OR
6 OHMS MIN.
/SPEAKER
SEE
INSTRUCTION
MANUAL FOR
CORRECT
SETTINGS.
CAUTION:
SPEAKER
IMPEDANCE
FM
75
SURR
BACK /
ZONE 2
SURR
BACK
/ ZONE 2
SPEAKERS
R L
MULTI CH
INPUT FRONT
SUB
SURR
SURR
BACK
CENTER
15mm
1
3 4 5
2
Notes:
• When you are using only one speaker or when you wish to listen to
monaural (mono) sound, a single speaker should never be
connected in parallel to both the right and left-channel terminals
simultaneously.
R
L
R
L
SPEAKERS
+ –
+ –
R
L
R
L
SPEAKERS
+ –
+ –
