11

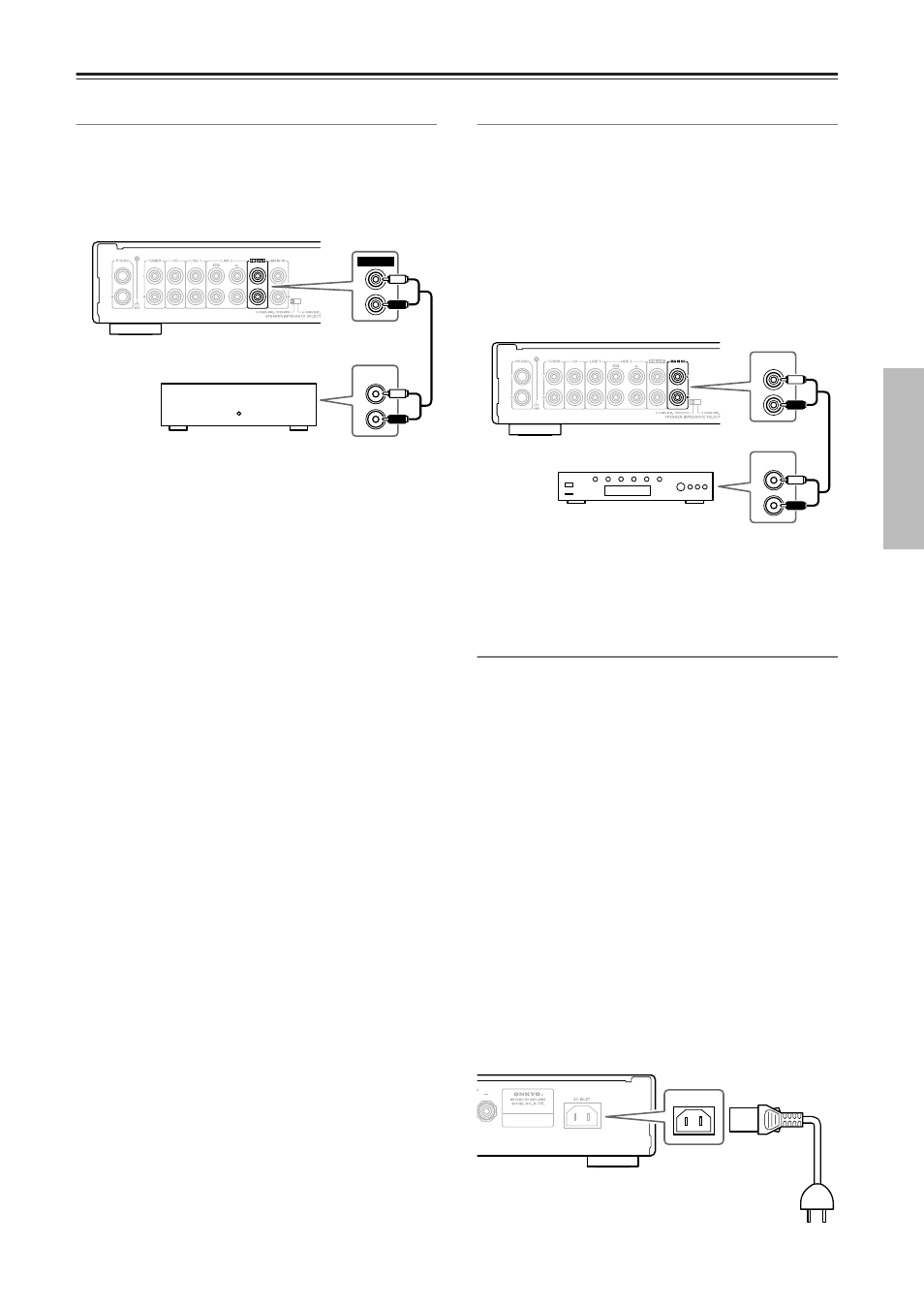

Connecting the A-1VL—Continued
Connecting a Power Amplifier
You can use the A-1VL as a preamplifier by connecting
the A-1VL to a power amplifier.
When you use the A-1VL as a preamplifer, connect the
main in terminals on the power amplifier to the PRE-
OUT terminals on the A-1VL.
Note:
The signal from the PREOUT terminal will be output
whether the DIRECT function is enabled or not.
Connecting a Preamp
You can use the A-1VL as a power amplifier by
connecting the A-1VL to a preamplifier.
When you use the A-1VL as a power amplifier, connect
the pre out terminals on the preamplifier to the MAIN
IN terminals on the A-1VL.
You can enjoy surround sound playback by connecting
front left and right speakers to the A-1VL and connect-
ing center and surround speakers to the preamplifier. If
you have a powered subwoofer, connect it to the
preamplifier’s PRE OUT.
Note:
Before you use the A-1VL as a power amplifier, be sure
to turn on the DIRECT function by pressing the
DIRECT button. (page 13)
Connecting the Power Cord
Notes:
• Before connecting the power cord, connect all of your
speakers and audio components.
• Turning on the A-1VL may cause a momentary
power surge that might interfere with other electrical
equipment on the same circuit. If this is a problem,
plug the A-1VL into a different circuit.
• Do not use a power cord other than the one supplied
with the A-1VL. The supplied power cord is designed
exclusively for use with the A-1VL and should not be
used with any other equipment.
• Never disconnect the power cord from the A-1VL
while the other end is still plugged into a wall outlet.
Doing so may cause an electric shock. Always
disconnect the power cord from the wall outlet first,
and then the A-1VL.
1. Connect the supplied power cord to the A-1VL’s AC
INLET.
2. Plug the power cord into an AC wall outlet.
L
R
L
R
LINE IN
PREOUT
MAIN IN
PRE OUT
L
R
L
R
AC INLET
To AC wall outlet
