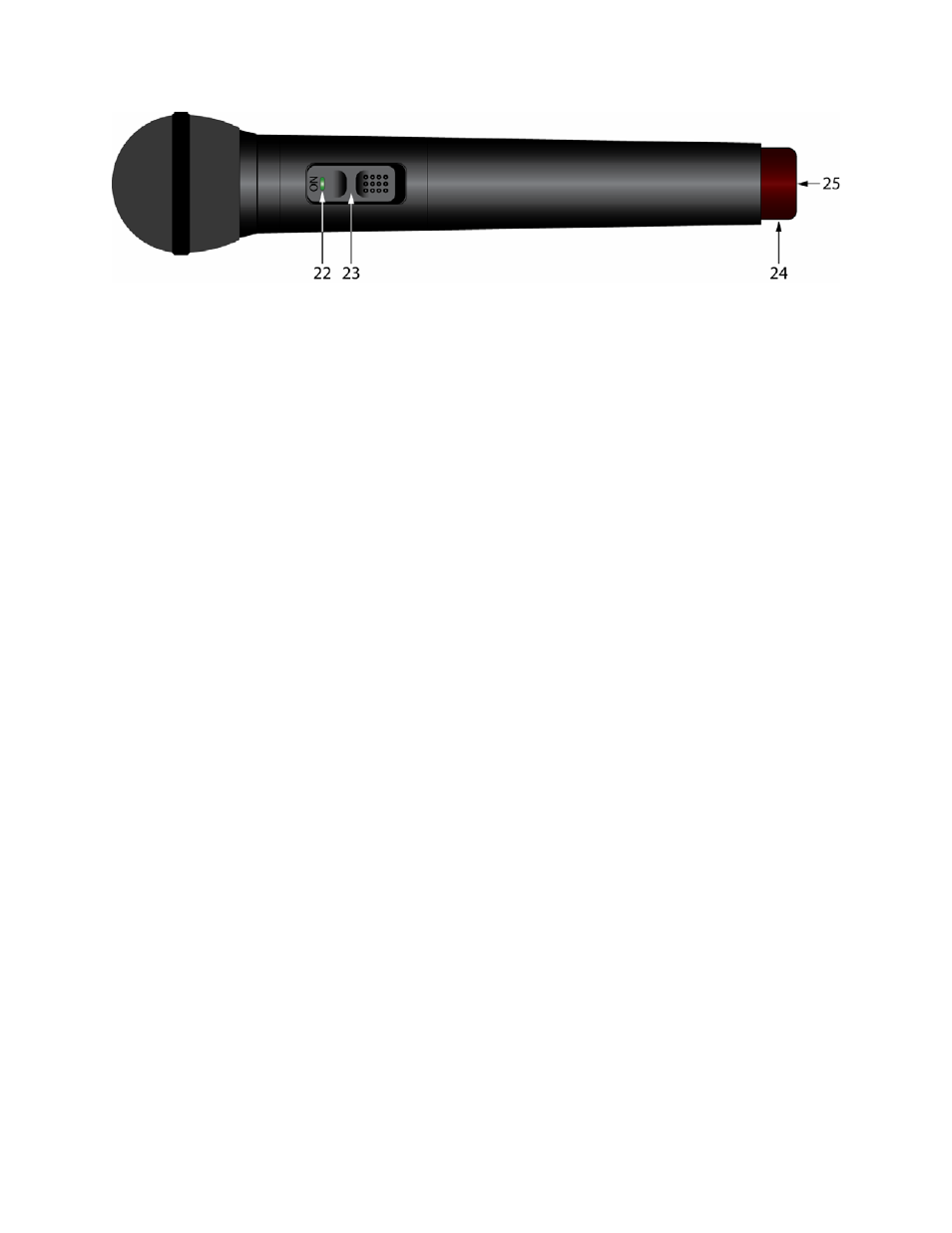

Figure 8. CRS-HHMIC Hand Held Microphone (Optional)
CRS-HHMIC HAND HELD MICROPHONE FEATURES (Optional)
The HHMIC Hand Held Microphone is an optional accessory that can be used for presentations or can be
passed around the room for Q&A so everyone in the room can clearly hear questions from the class or
audience.
NOTE 1:
The CRS-HHMIC is an optional accessory and must be purchased separate from the CRS-101.
NOTE 2: The CRS-HHMCS Charger is also an optional accessory and is purchased separate from both
the CRS-101 and CRS-HHMIC.
22. ON LED –
One LED illuminates green to indicate that the microphone is ON.
23. ON/OFF SWITCH –
Turns the microphone ON/OFF.
24. IR OUTPUT ARRAY –
High output IR LED’s output audio as infrared pulses in an omni-directional
pattern that are received by the CRS-IRS IR Sensors. The IR Sensors output electrical DC pulses to
the CRS-CASE which converts them back to audio signals, amplifies them and outputs the audio to
the Speakers.
25. CHARGER CONTACTS –
These contacts charge the microphone’s re-chargeable battery when
inserted into the CRS-HHMCS Hand Held Microphone Charger.
NOTE:
The CRS-HHMCS Charger is also an optional accessory and is purchased separate from
both the CRS-101 and CRS-HHMIC.
