4 © 2008 directed electronics—all rights reserved

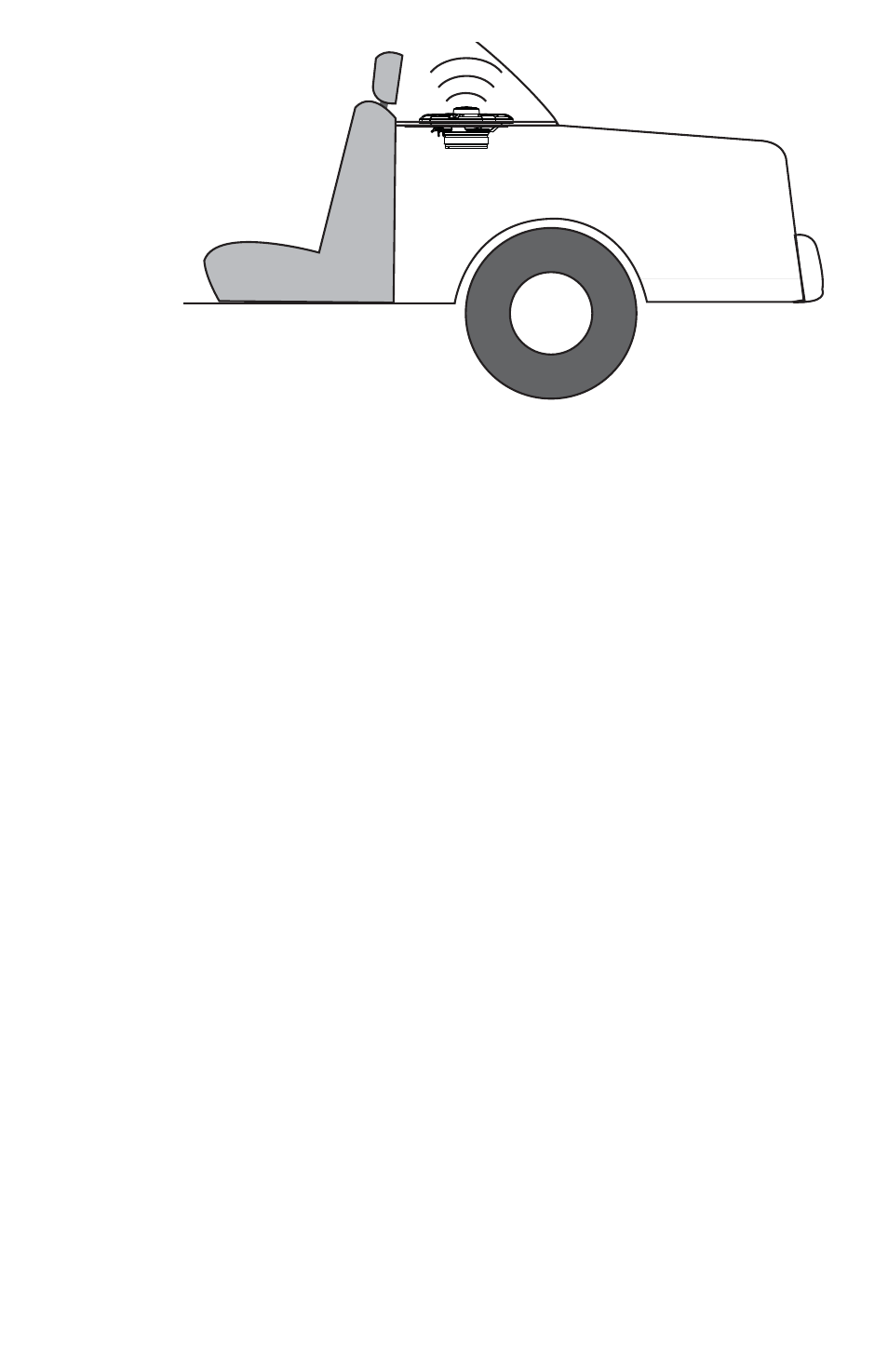

Figure 2
Figura 2
Abbildung 2
Rear/Trunk
of Car
Rear Seat
STEP BY STEP INSTALLATION
Step 1: Determine where the speaker will be mounted. Make sure there is a flat area
large enough for the speaker to fit properly. An uneven mounting surface
can damage the driver.
Step 2: Check to make sure the space you have chosen for the speaker will not
interfere with the operation of the vehicle.
Step 3: Using a template, mark the speaker hole with a pen.
Step 4: Cut the hole for the speaker. When using factory locations, this step can be
passed. A hole can be cut either with a pair of metal tin snips or a hole saw
corresponding to the size of the speaker listed below.
• 41/8" (105mm) hole saw (4"Coaxial installation)
• 43/4" (120mm) hole saw (5.25"Coaxial installation)
• 51/8" (130mm) hole saw (6" & 6.5" Coaxial installation)
Step 5: Run the speaker wire to the speakers. Make sure to keep wires away from
sharp metal or other edges. When passing through metal ,use a protective
grommet.
Step 6: Using the template, mark the mounting holes with a pen.
Step 7: Pre-drill mounting holes using a 1/8" drill bit.
Step 8: Pull the wire through the speaker opening and connect to the speaker.
Step 9: Mount the speaker and grill in the hole using the same screws. Insert the
screws through the grill and the mounting holes in the basket.
WARNING: Window mechanisms and electrical wires may be hidden from sight.
CHECK FOR CLEARING BEFORE YOU DRILL!
