17
En

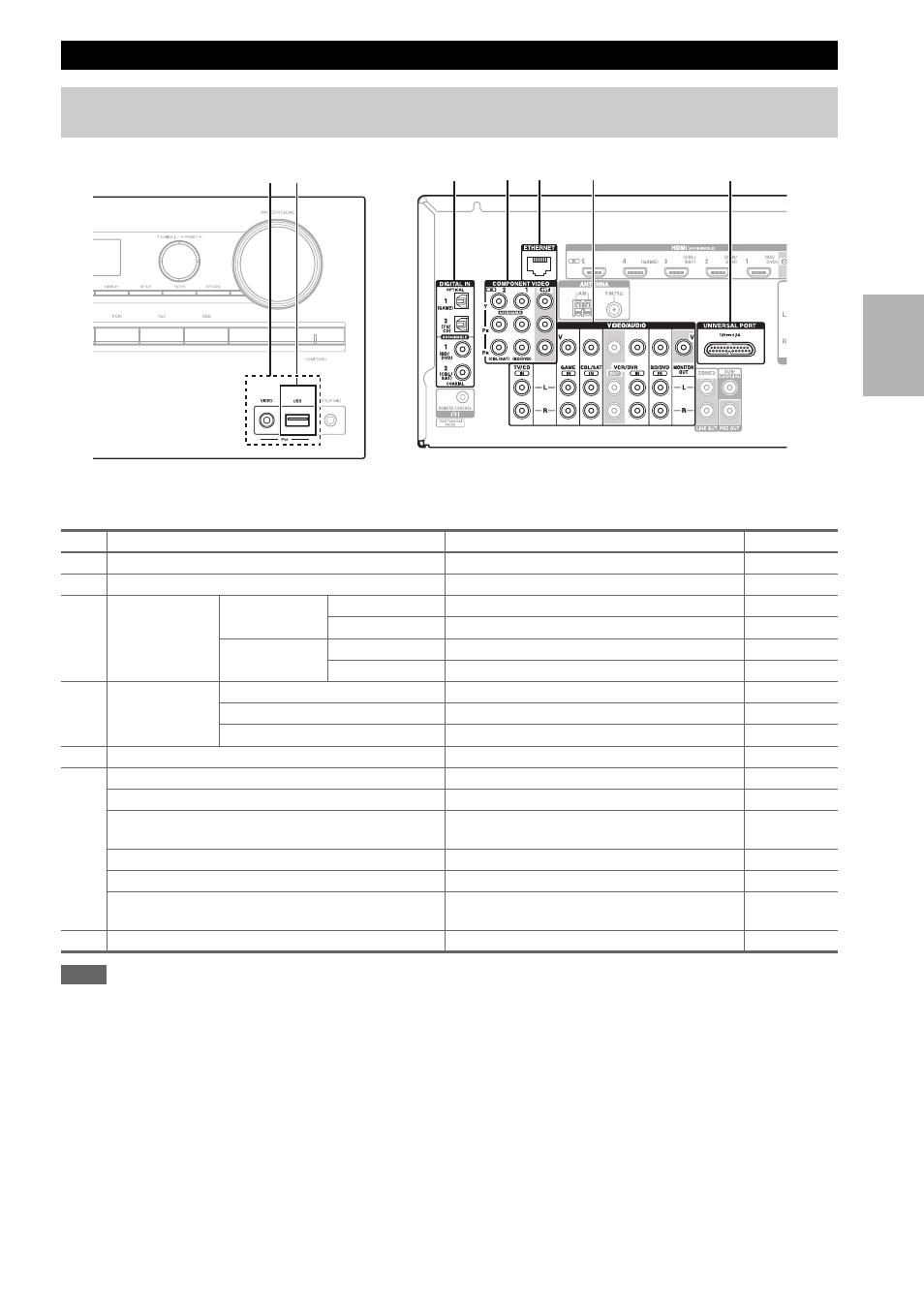

Connect your components to the appropriate jacks. The default input assignments are shown below. See “Connection
Tips and Video Signal Path” for more information (
page 77).
✔: Assignment can be changed (
Note
*1
Do not connect the AV receiver’s USB port to a USB port on your computer. Music on your computer cannot be played through the
AV receiver in this way.
*2
Connect a turntable (MM) that has a phono preamp built-in. If your turntable (MM) doesn’t have it, you’ll need a commercially
available phono preamp.
If your turntable has a moving coil (MC) type cartridge, you’ll need a commercially available MC head amp or MC transformer as
well as a phono preamp. See your turntable’s manual for details.
• With connection , you can enjoy Dolby Digital and DTS. (To record or listen the audio in Zone 2 as well, use and
.)
• With connection , you can listen to and record audio from external components while you are in Zone 2.
• With connection , if your Blu-ray Disc/DVD player has both the main stereo and multichannel outputs, be sure to
connect to the main stereo.
■
How to record a video source
With the connections described above, you cannot record the videos through the AV receiver. See “Recording” about
connections for video recording (
Connecting Your Components
The on-screen setup menus appear only on a TV that is connected to the
HDMI OUT. If your TV is connected to
the
MONITOR OUT V or the COMPONENT VIDEO OUT, use the AV receiver’s display when changing settings.
No.
Jack/Port
Components
Assignable
USB, VIDEO
iPod/iPhone (video playback)
USB
*1
iPod/iPhone, MP3 player, USB flash drive
DIGITAL IN
OPTICAL
1 (GAME)
Game console
✔
2 (TV/CD)
TV, CD player
✔
COAXIAL
1 (BD/DVD)
Blu-ray Disc/DVD player
✔
2 (CBL/SAT)
Satellite/cable set-top box, RI dock, etc.
✔
COMPONENT
VIDEO
IN 1 (BD/DVD)
Blu-ray Disc/DVD player, RI dock
✔
IN 2 (CBL/SAT)
Satellite/cable set-top box, RI dock, etc.
✔
OUT
TV, projector, etc.
ETHERNET
Router
MONITOR OUT
TV, projector, etc.
BD/DVD IN
Blu-ray Disc/DVD player
VCR/DVR IN
VCR or DVD recorder/digital video recorder, RI
dock
CBL/SAT IN
Satellite/cable set-top box, etc.
GAME IN
Game console, RI dock
TV/CD IN
TV, CD player, cassette tape deck, MD, CD-R,
Turntable
*2
, RI dock
UNIVERSAL PORT
Universal port option dock (UP-A1 etc.)
