Connecting External Devices —Continued
Connect the LINE IN terminal on the DVD receiver and an audio output terminal on TV.
The DVD receiver has a SUBWOOFER PRE OUT jack. Connect an active subwoofer (a subwoofer that contains an
amplifier).
Note:
If you want to connect any passive subwoofer, you must connect at first a power amplifier with the DVD receiver, and
then connect a subwoofer to the power amplifier.

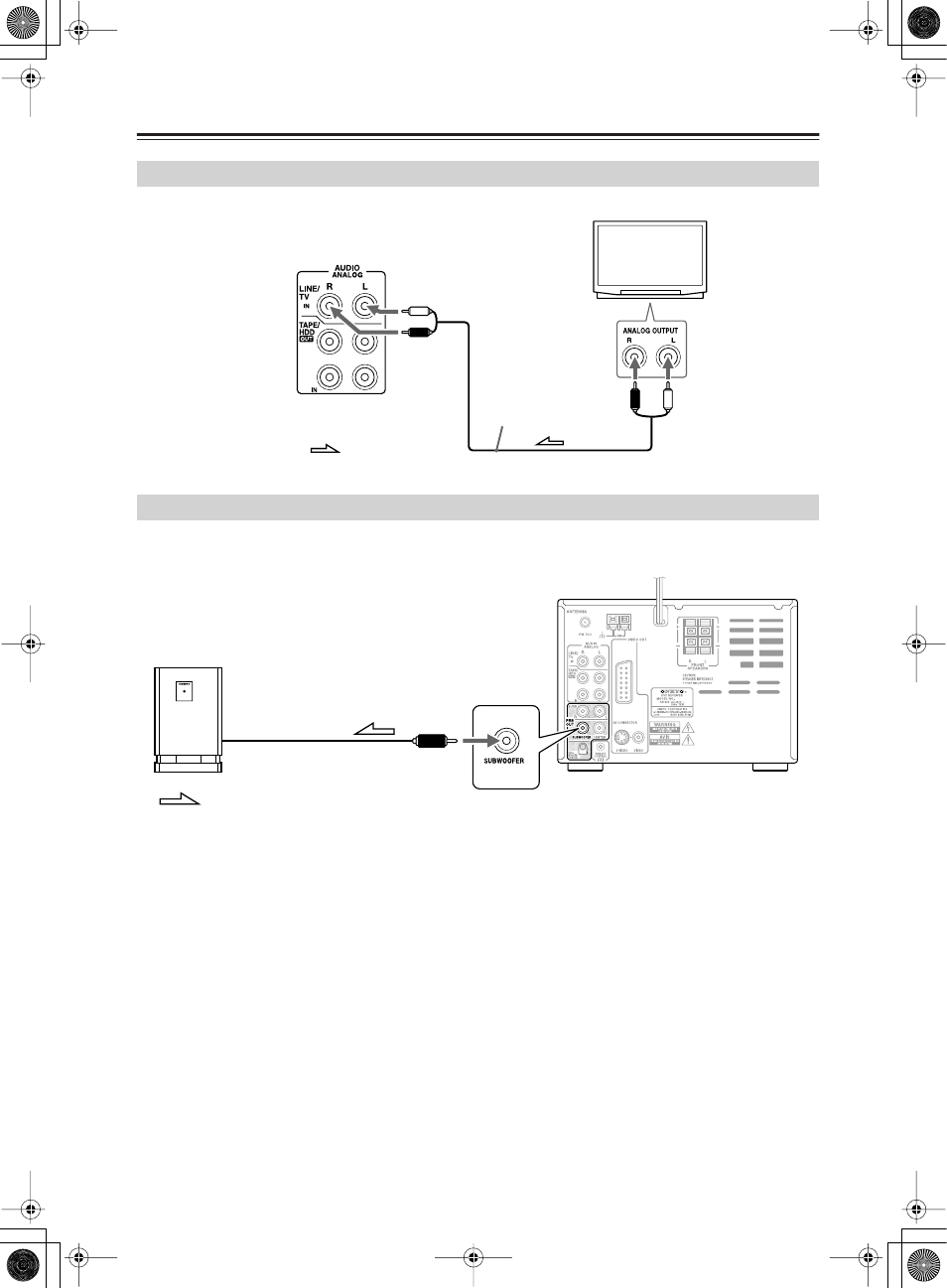

Connection for TV Audio Signal
: Signal flow
DVD receiver’s
rear panel
white
red
red white RCA/phono
audio cable
Connecting a Subwoofer
: Signal flow
DVD receiver
Active subwoofer
(with a built-in amplifier)
