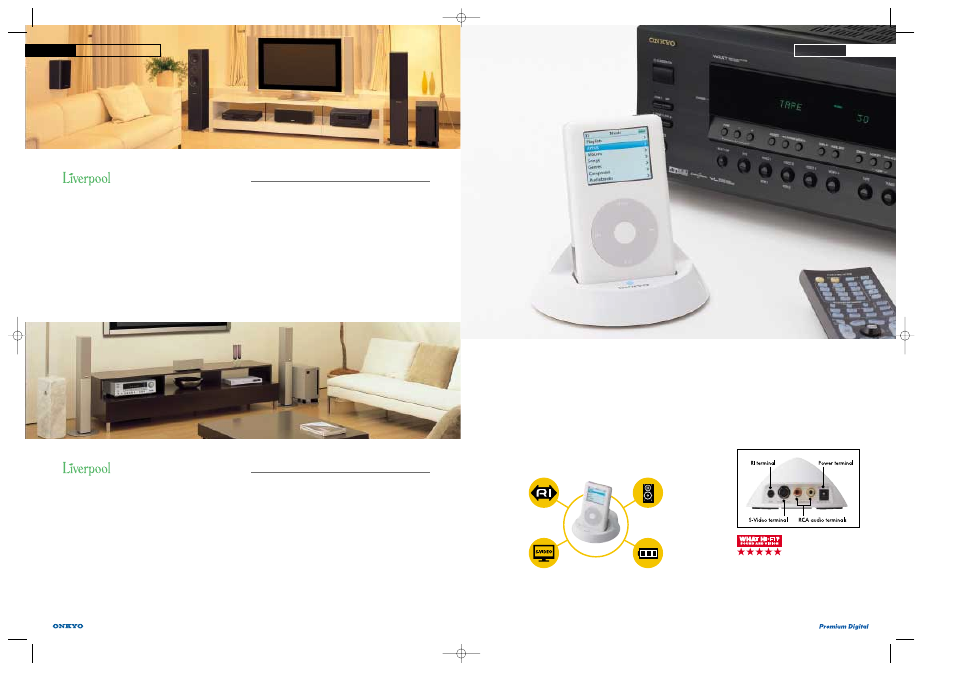

Home Theatre Speakers
TX-SR603, DV-SP502, SKF-4600, SKS-4600, SKR-4600, SL-107
Wondered About the Future of Sound and Vision?—Here It Is
TX-SR603
7.1-Channel A/V Surround Home Theatre Receiver
•90 W/Ch, continuous 8
Ω
, 20 Hz-20 kHz, FTC •155 W/Ch, continuous 6
Ω
, 1 kHz, JEITA
•DTS
®
-ES
™
Discrete/Matrix, DTS
®
Neo:6, DTS
®
96/24, Dolby
®
Digital EX
™
, Dolby
®
Pro Logic
®
IIx
•VLSC (Vector Linear Shaping Circuitry) for L/R channels •H.C.P.S. (High Current Power
Supply) massive high power transformer •192 kHz/24-bit DACs for all channels •HDTV-
capable (50 MHz) component video switching •Component video upconversion with TBC
(Time Base Corrector) •WRAT (Wide Range Amplifier Technology) •Advanced 32-bit
processing DSP chip •3 wideband component video inputs and 1 output •6 digital inputs
(4 optical/2 coaxial) and 1 output (optical) •5 S-Video inputs and 3 outputs •Subwoofer pre
out •CinemaFILTER
™
•Powered Zone 2 and 12 V trigger •Pure audio mode •A-Form
listening mode memory •Optimum gain volume circuitry •Color-coded 5.1 multichannel inputs
DV-SP502
Universal DVD-Audio/Super Audio CD Player
•DTS
®
and Dolby
®
Digital decoders built in •Plays DVD-Audio and Video, DVD-R/RWs, Super
Audio CDs, MP3 CDs, WMA CDs, CD-R/RWs, video CDs, audio CDs, and JPEG-encoded CDs*
•DivX
®
Video playable •PAL/NTSC progressive scan •192 kHz/24-bit audio DACs
•108 MHz/12-bit video DAC •Optical & coaxial digital outputs •96 kHz or 48 kHz selectable
digital output •Component video, S-Video & composite video outputs
* Discs that have not been properly finalized may only be partially playable or not playable at all.
AV-4600
SKF-4600(B)
2-Way Bass Reflex Speakers
•13 cm cone woofer x 2 •2.5 cm soft-dome tweeter •Magnetically shielded •Max. input
power: 120 W •Frequency response: 40 Hz–35 kHz •WHD: 195 x 1000 x 228 mm •10.0 kg
SKS-4600(B)
Center/Surround Speaker Package
Center Speaker
•10 cm cone woofer x 2 •2 cm balanced-dome tweeter •Magnetically shielded •Max. input
power: 100 W •Frequency response: 50 Hz–35 kHz •WHD: 460 x 145 x 144 mm •3.6 kg
Surround Speakers
•10 cm cone woofer •2 cm balanced-dome tweeter •Wall-mounting bracket •Max. input
power: 100 W •Frequency response: 80 Hz–35 kHz •WHD: 145 x 280 x 146 mm •1.9 kg
SKR-4600(B)
Surround Back Speakers
•10 cm cone woofer •2 cm balanced-dome tweeter •Wall-mounting bracket •Max. input
power: 100 W •Frequency response: 80 Hz–35 kHz •WHD: 145 x 280 x 146 mm •1.9 kg
SL-107(B)
Bass Reflex Powered Subwoofer
•Built-in 150 W amplifier •20 cm cone woofer •Aero Acoustic Drive for powerful and natural
sounding bass •Auto-standby/On circuitry •Continuously variable crossover (50 Hz–200 Hz)
•Phase switch (0˚ or 180˚) •Speaker & line level inputs •Impedance: 65 k
Ω
(Line input), 1.2 k
Ω
(Speaker input) •Frequency response: 30 Hz–200 Hz •WHD: 230 x 435 x 401 mm •13.0 kg
TX-SR503, DV-SP303, SKF-3600, SKS-3600, SKR-3600, SL-107
Bring the Theatre Experience Home
AV-3600
TX-SR503
7.1-Channel A/V Surround Home Theatre Receiver
•75 W/Ch, continuous 8
Ω
, 20 Hz-20 kHz, FTC •130 W/Ch, continuous 6
Ω
, 1 kHz, JEITA
•DTS
®
-ES
™
Discrete/Matrix, DTS
®
Neo:6, DTS
®
96/24, Dolby
®
Digital EX
™
, Dolby
®
Pro Logic
®
IIx
•H.C.P.S. (High Current Power Supply) massive high power transformer •192 kHz/24-bit DACs
for all channels •HDTV-capable (50 MHz) component video switching •WRAT (Wide Range
Amplifier Technology) •Advanced 32-bit processing DSP chip •3 wideband component video
inputs and 1 output •4 digital inputs (3 optical/1 coaxial) •3 S-Video inputs and 2 outputs
•Subwoofer pre out •CinemaFILTER
™
•Pure audio mode •A-Form listening mode memory
•Optimum gain volume circuitry •Color-coded 5.1 multichannel inputs •Speaker A/B terminals
•Color-coded dual banana plug-compatible speaker posts (except speaker B) •Crossover
adjustment (60/80/100/120/150 Hz) •Preprogrammed RI (Remote Interactive) remote control
DV-SP303
DVD/CD/MP3 CD Player
•Plays DVDs, DVD-R/RWs, MP3 CDs, WMA CDs, CD-R/RWs, video CDs, audio CDs and
JPEG-encoded CDs* •DivX
®
video playable •PAL/NTSC progressive scan •192 kHz/24-bit
audio DAC •54 MHz/10-bit video DAC •Parallel outputs—all outputs active •Optical and
coaxial digital outputs •96 kHz or 48 kHz selectable digital output •Component video,
S-Video & composite video outputs •On-screen display (English/French/Spanish) •Full-function
remote control
* Discs that have not been properly finalized may only be partially playable or not playable at all.
SKF-3600
2-Way Bass Reflex Speakers
•8 cm cone woofer x 2 •2.5 cm balanced-dome tweeter •Magnetically shielded •Max. input
power: 100 W •Frequency response: 55 Hz–35 kHz •WHD: 300 x 929 x 300 mm (with
speaker base), 104 x 913 x 138 mm (without speaker base) •6.1 kg (with speaker base), 4.5 kg
(without speaker base)
SKS-3600
Center/Surround Speaker Package
Center Speaker
•8 cm cone woofer x 2 •2.5 cm balanced-dome tweeter •Wall-mounting bracket
•Magnetically shielded •Max. input power: 100 W •Frequency response: 60 Hz–35 kHz
•WHD: 310 x 104 x 127 mm •2.1 kg
Surround Speakers
•8 cm cone woofer •2.5 cm balanced-dome tweeter •Wall-mounting bracket •Max. input
power: 100 W •Frequency response: 60 Hz–35 kHz •WHD: 104 x 169 x 127 mm •1.1 kg
SKR-3600
Surround Back Speaker
•8 cm cone woofer •2.5 cm balanced-dome tweeter •Wall-mounting bracket •Max. input
power: 100 W •Frequency response: 60 Hz–35 kHz •WHD: 104 x 169 x 127 mm •1.1 kg
SL-107
Bass Reflex Powered Subwoofer
•Built-in 150 W amplifier •20 cm cone woofer •Aero Acoustic Drive for powerful and natural
sounding bass •Auto-standby/On circuitry •Continuously variable crossover (50 Hz–200 Hz)
•Phase switch (0˚ or 180˚) •Speaker & line level inputs •Impedance: 65 k
Ω
(Line input), 1.2 k
Ω
(Speaker input) •Frequency response: 30 Hz–200 Hz •WHD: 230 x 435 x 401 mm •13.0 kg
Home Theatre Speakers
2005-2006
Liverpool A/V Components
DS-A1
Remote Interactive Dock
• Auto Selector Function
• Time Play/Sleep Timer Function
• Alarm Function
• JPEG Capable
• All Cables Included (RI, S-Video, Audio, Power)
• WHD: 112 x 56 x 112 mm
• 220 g
Simply place your iPod in the DS-A1 Remote Interactive Dock for the iPod connected
to an Onkyo amplifier/receiver/system* to experience the powerfully rich sound of
Onkyo audio. Control your music from your RI remote controller and charge your
iPod while you enjoy your digital music downloads—and photos—through Onkyo's
Imaginative Sight and Sound.
* Compatible with over 90% of Onkyo components.
Charged and Ready to Go
More than just a conduit to your audio system, the DS-A
1
also works as a charging station. So, while you’re powering
up your favorite tunes, your iPod’s powering up too.
Pristine Onkyo Playback
Put those earphones down and give your iPod
music a turbo-boost. The DS-A
1
provides the link
to an absorbing, room-filling sound experience.
Relive Those Magical Moments
Share those memorable photos through your home
theatre’s larger display, by connecting your iPod (or
iPod photo) with the DS-A
1
.
Control From Afar
RI-connectivity brings effortless remote control to
your iPod’s vast library of music—or digital photos—
without you having to budge from the sofa.
Doing More with Your iPod—with Onkyo's Imaginative Sight and Sound
iPod Models Compatible with the DS-A1 (as of September 2005)
•iPod photo •iPod mini •4th generation iPod with click wheel •3rd generation iPod with touch wheel
2005-2006
iPod Accessory
(September Issue 2005)
