Connections
En-16
Connect your components to the appropriate jacks. The
default input assignments are shown below. See
“Connection Tips and Video Signal Path” for more
information (
).
✔: Assignment can be changed (
Note
*1
When the USB input is selected, you can input video signals
from the VIDEO jack. Video signals input from VIDEO will
be output from the MONITOR OUT and HDMI output jacks.
*2
Do not connect the AV receiver’s USB port to a USB port on
your computer. Music on your computer cannot be played
through the AV receiver in this way.
*3
Only the front-panel USB input is compatible with
iPod/iPhone.
*4
Connect a turntable (MM) that has a phono preamp built-in. If
your turntable (MM) doesn’t have it, you’ll need a
commercially available phono preamp.
If your turntable has a moving coil (MC) type cartridge, you’ll
need a commercially available MC head amp or MC
transformer as well as a phono preamp. See your turntable’s
manual for details.
• With connection
, you can enjoy Dolby Digital and
DTS. (To listen in Zone 2/3 as well, use
and
.)
• With connection
, you can enjoy audio from external
components while you are in Zone 2/3.
• With connection
, if your Blu-ray Disc/DVD player
has both the main stereo and multichannel outputs, be
sure to connect the main stereo.

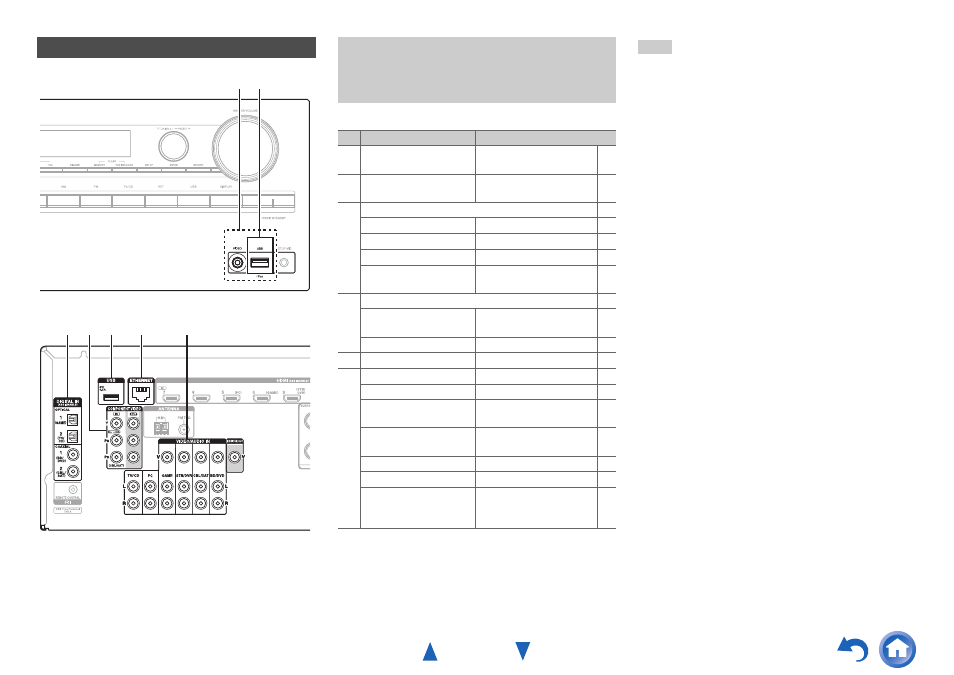

Connecting Your Components
The on-screen menus appear only on a TV that is
connected to
HDMI OUT MAIN. If your TV is
connected to other video outputs, use the AV
receiver’s display when changing settings.
No. Jack/Port
Components
USB, VIDEO
iPod/iPhone (video
playback)
iPod/iPhone, MP3 player,
USB flash drive
DIGITAL IN
OPTICAL 1 (GAME)
Game consoles
✔
OPTICAL 2 (TV/CD)
TV, CD player
✔
COAXIAL 1 (BD/DVD)
Blu-ray Disc/DVD player
✔
COAXIAL 2 (CBL/SAT) Satellite/cable set-top box,
RI dock, etc.
✔
COMPONENT VIDEO
IN (CBL/SAT)
Satellite/cable set-top box,
RI dock, etc.
✔
OUT
TV, projector, etc.
ETHERNET
Router
MONITOR OUT
TV, projector, etc.
BD/DVD IN
Blu-ray Disc/DVD player
CBL/SAT IN
Satellite/cable set-top box,
etc.
STB/DVR IN
Set top box/Digital video
recorder, etc
GAME IN
Game console, RI dock
PC IN
Personal computer
TV/CD IN
TV, CD player, cassette
tape deck, MD, CD-R,
Turntable
, RI dock
