Front & Rear Panels
For detailed information, see the pages in parentheses.
ON/STANDBY button ( 19 )
ZONE 2, OFF buttons ( 52 )
Remote control sensor ( 5 )
Display ( 9 )
LISTENING MODE buttons ( 30 )
DIMMER button (North American and Taiwanese
models) (
36 )
MEMORY button ( 28 )
TUNING MODE button ( 27 )
DISPLAY button ( 36 )
SETUP button ( 41 )
TUNING / , PRESET / ( 27 ), cursor and
ENTER buttons
RETURN button
MASTER VOLUME control ( 20 )
MUSIC OPTIMIZER button and indicator (North
American and Taiwanese models) (
37 , 40 )
PHONES jack ( 38 )
TONE and Tone Level buttons ( 40 )
Input selector buttons ( 20 )
AUX INPUT AUDIO/VIDEO
jacks (
16 )
USB port ( 16 )
HYBRID STANDBY indicator ( 42 )
PURE AUDIO button and indicator (European,
Australian and Asian models) (
30 )
RT/PTY/TP button (European, Australian and
Asian models) (
28 )

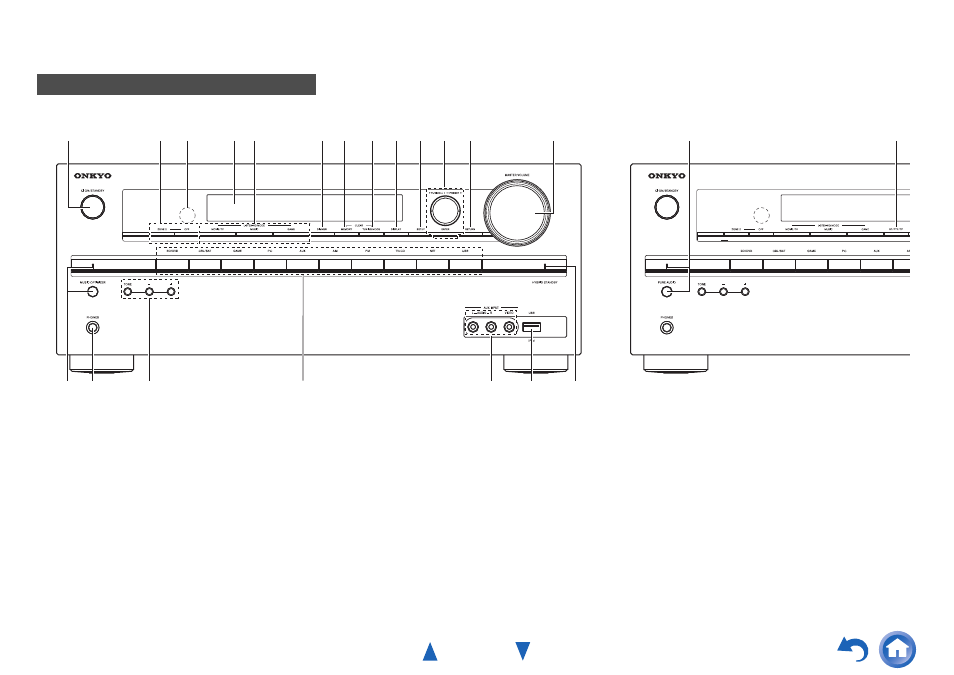

Front Panel
(North American and Taiwanese models) (European, Australian and Asian models)
