7
Preparing Your Receiver

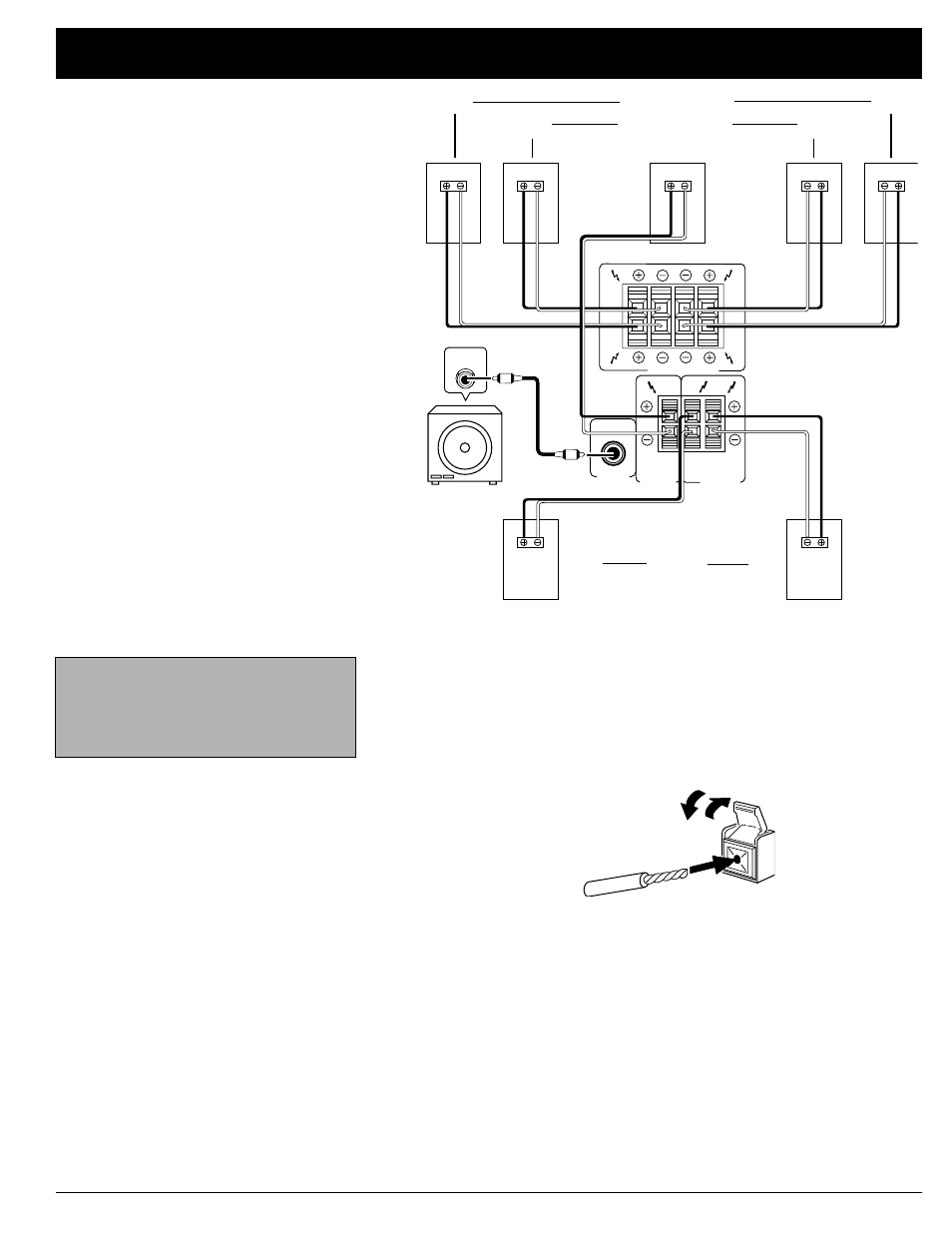

Connecting the A and B Speakers
Follow these steps to connect the right speaker to the receiver’s right FRONT
SPEAKERS A terminals.
1. Lift the receiver’s FRONT SPEAKERS A R (+) red lever and insert the ridged
or color-coded conductor’s end into the small hole. Pull down the lever to
secure the conductor.
2. Lift the receiver’s FRONT SPEAKERS A R ( – ) black lever and insert the other
conductor’s end into the small hole. Pull down the lever to secure the con-
ductor.
3. Connect the ridged or color-coded conductor’s loose end to the right
speaker’s positive (+) terminal.
4. Connect the remaining loose conductor to the right speaker’s negative (–)
terminal.
Repeat Steps 1–4 to connect the left speaker to the receiver’s FRONT SPEAKERS
A left terminals.
Repeat this entire process to connect a second pair of speakers to the FRONT
SPEAKERS B terminals.
L R
PRE OUT
SUB
WOOFER CENTER
SPEAKER
REAR
SPEAKERS
L R
A
B
A
B
R L
R L
FRONT SPEAKERS
AUDIO
IN
Subwoofer
Amplifiers
Center Speaker
Right
Right
Left
Left
Front A Speakers
Front B Speakers
Left Right
Surround
Speakers
Right Front Speakers B Left
Right Front Speakers A Left
Center Speaker
Amplified
Subwoofer
Note: Be sure you connect the re-
ceiver’s right and left positive (+) and
negative (–) terminals to the speaker’s
corresponding right and left positive (+)
and negative (–) terminals.
