10
Preparing Your Receiver

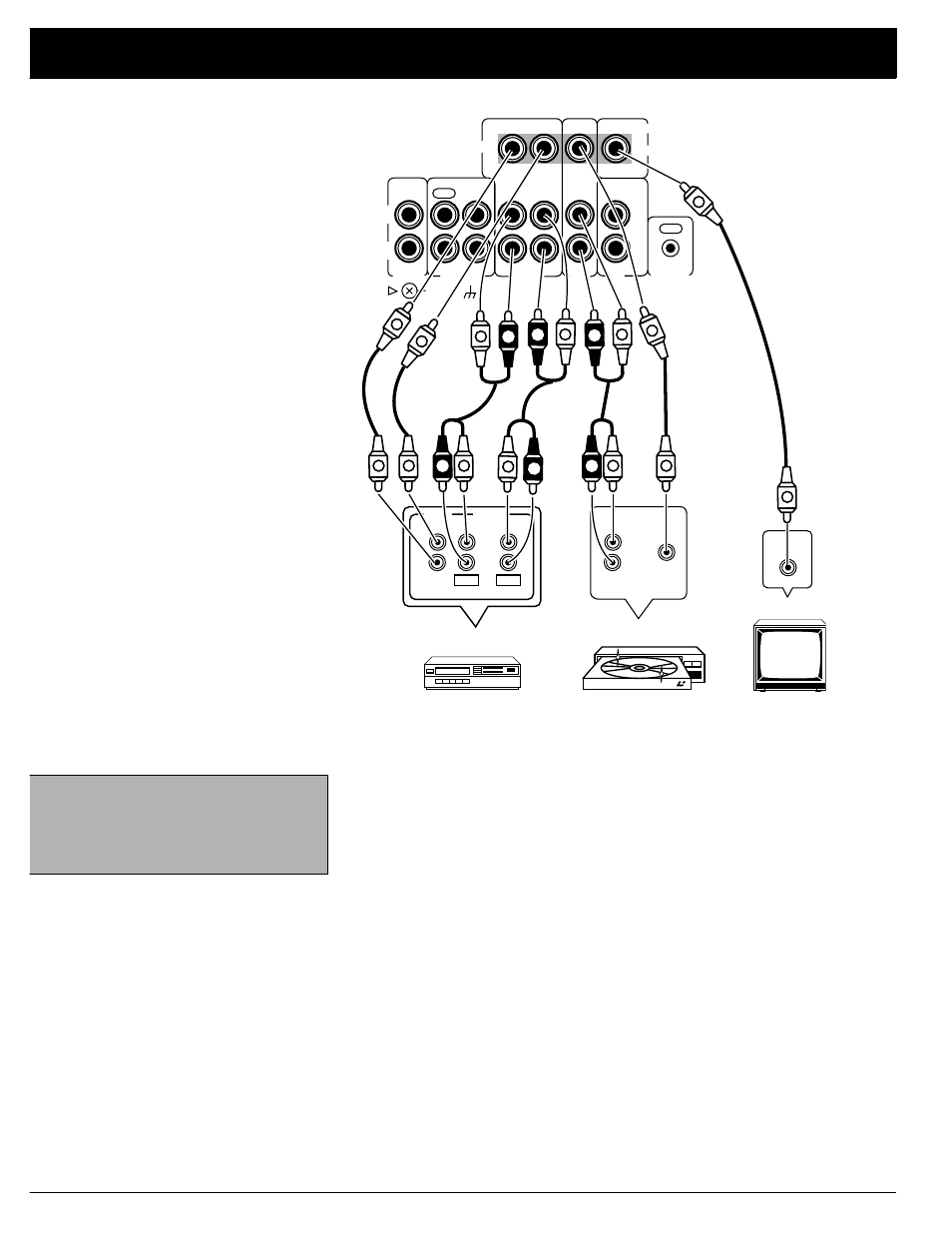

Connecting Video Sources
If you connect two video sources, such as VCRs, laser disc (LD) players, or dig-
ital video disc (DVD) players to your receiver, you can use the receiver to select
each video source. You can also use the receiver to easily record from these
video sources to the source connected to
VCR/TAPE 1
.
Connect phono cables from each video source’s audio outputs to the receiver’s
VCR/TAPE 1
or
LD/DVD IN
(audio) jacks. Then connect phono cables from the
receiver’s
VCR/TAPE 1
OUT
(audio) jacks to the source’s audio input jacks.
Connect video cables from each video source’s video outputs to the receiver’s
VCR/TAPE 1
or
LD/DVD VIDEO IN
jacks. Then connect video cables from the
receiver’s
VCR/TAPE 1 VIDEO OUT
jack to the source’s video input.
Connecting a Video Monitor
The monitor (or TV with baseband video input) you connect to the
VIDEO OUT
ter-
minal can monitor any program you connect to the receiver’s
VCR/TAPE 1
or
LD/
DVD
input jacks. Connect a video cable from the receiver’s
VIDEO OUT TO MONI-
TOR TV
jack to the monitor’s video input.
SIGNAL
GND
PHONO
TAPE2
MONITOR
CD
LD/
DVD
VCR/
TAPE 1
VIDEO
CONTROL
REC
PLAY
L
R
L
R
IN
OUT
IN
IN
IN
OUT
OUT
IN
IN
TO MONITOR TV
VIDEO OUT
L
R
REC
PLAY
AUDIO
REC
PLAY
INPUT
OUTPUT
L
R
L
R
R
L
R
L
L
R
AUDIO
OUT
VIDEO
OUT
VCR
R
L
L
R
v
VIDEO
IN
OUT
V
V
V
V
V
VIDEO
IN
V
v
VCR
LD/DVD Player
TV Monitor
Note: If your VCR is monaural, use a Y-
adapter (available at your local Ra-
dioShack store) to connect the VCR’s
audio output to both the
L
and
R
audio in-
puts on the receiver.
