Audio equipment connections

remote control cable (supplied with every

ONKYO component that has

connectors ex-

cept for the amplifier and receiver)

This unit

(CR-305TX)

MD recorder

Stereo cassette

tape deck

CD recorder

Connecting the

remote control cables

If your other components are made by ONKYO and those components are equipped with

connectors, you can control the

connected components with the supplied remote controller.
• The unit must be connected in the

system hookups for

control operations.

• Each component has two

connectors except for this unit. There is no difference between these connectors.

• The components may be connected in any order.

• The hookups on the previous page are necessary independently of the

system hookups.

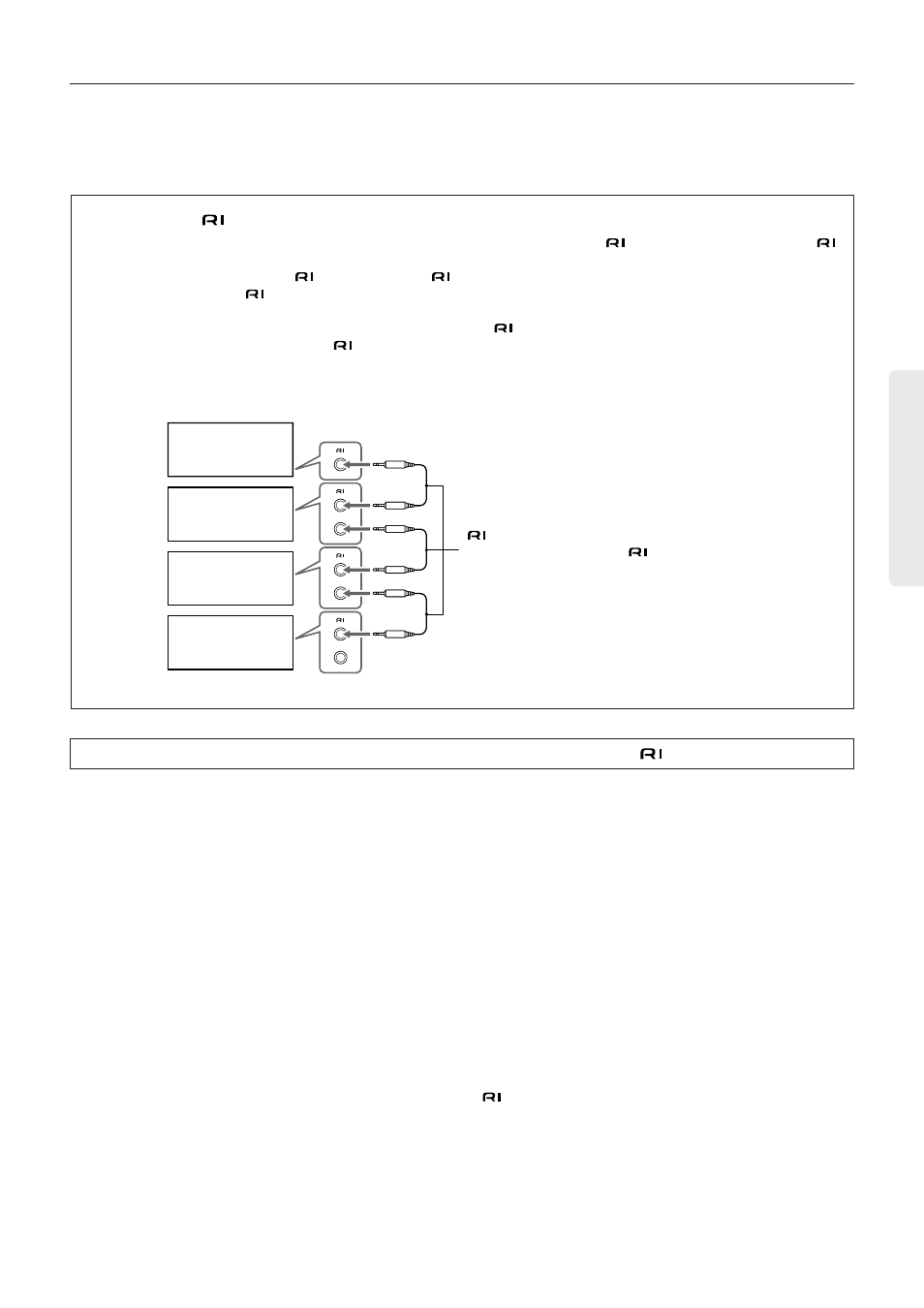

• The illustration below is an example of a

hookup.

Note
• This is not an example of stacking the components.

What can you do with the other ONKYO components by connecting with an

remote control cables?

Combination use of the unit with the stereo cassette tape deck K-505X or K-505TX, CD recorder CDR-205X or CDR-205TX, or MD recorder
MD-105X or MD-105TX enables you to operate the following convenient functions.

Note that the available components may vary according to the area.

• Remote control of the components

All the components can be operated using the supplied remote controller. (Refer to “Using the remote controller” on page 35.)

• Program timer

You can operate timer playback and recording using this unit. (With the CD recorder CDR-205X or CDR-205TX, you can operate timer
playback only.) (Refer to “Using the timer” on page 26.)

• CD dubbing

Simple CD dubbing using the CD recorder, MD recorder, or stereo cassette tape deck is possible with the pressing of a single button.
The unit begins a search for the peak level and the CD recorder, MD recorder, or stereo cassette tape deck sets the optimum recording level
to match that peak level. (Refer to CDR-205X or CDR-205TX, MD-105X or MD-105TX, or K-505X or K-505TX instruction manual for
details.)

• CD synchro recording

With the CD recorder, MD recorder, or stereo cassette tape deck in recording pause, starting CD playback causes these components to start
recording. (Refer to CDR-205X or CDR-205TX, MD-105X or MD-105TX, or K-505X or K-505TX instruction manual for details.)

Note
• Make sure the unit and each component are firmly connected with the

remote control cable, audio connection cable, and optical fiber

cable. If the connection is incomplete, the above functions does not work.

About the OPTICAL DIGITAL OUTPUT connector

• An optical digital audio input equipped MD recorder, DAT, or CD recorder may be connected with an optical fiber audio cable for digital

recording of this unit.
