Onkyo MD-101A - Manual (Page 11)

11
Befor
e Using
Connections
Other Information
Operations
L
R
ANALOG
REMOTE
CONTROL
INPUT OUTPUT
OPTICAL
1 2
DIGITAL INPUT
MINIDISC RECORDER
MODEL NO. MD-101A
AC OUTLET
AC 220
-230 V
50 / 60 Hz
UNSWITCHED
100 W MAX.
L R
OUT OUT IN
L R
2
3
1

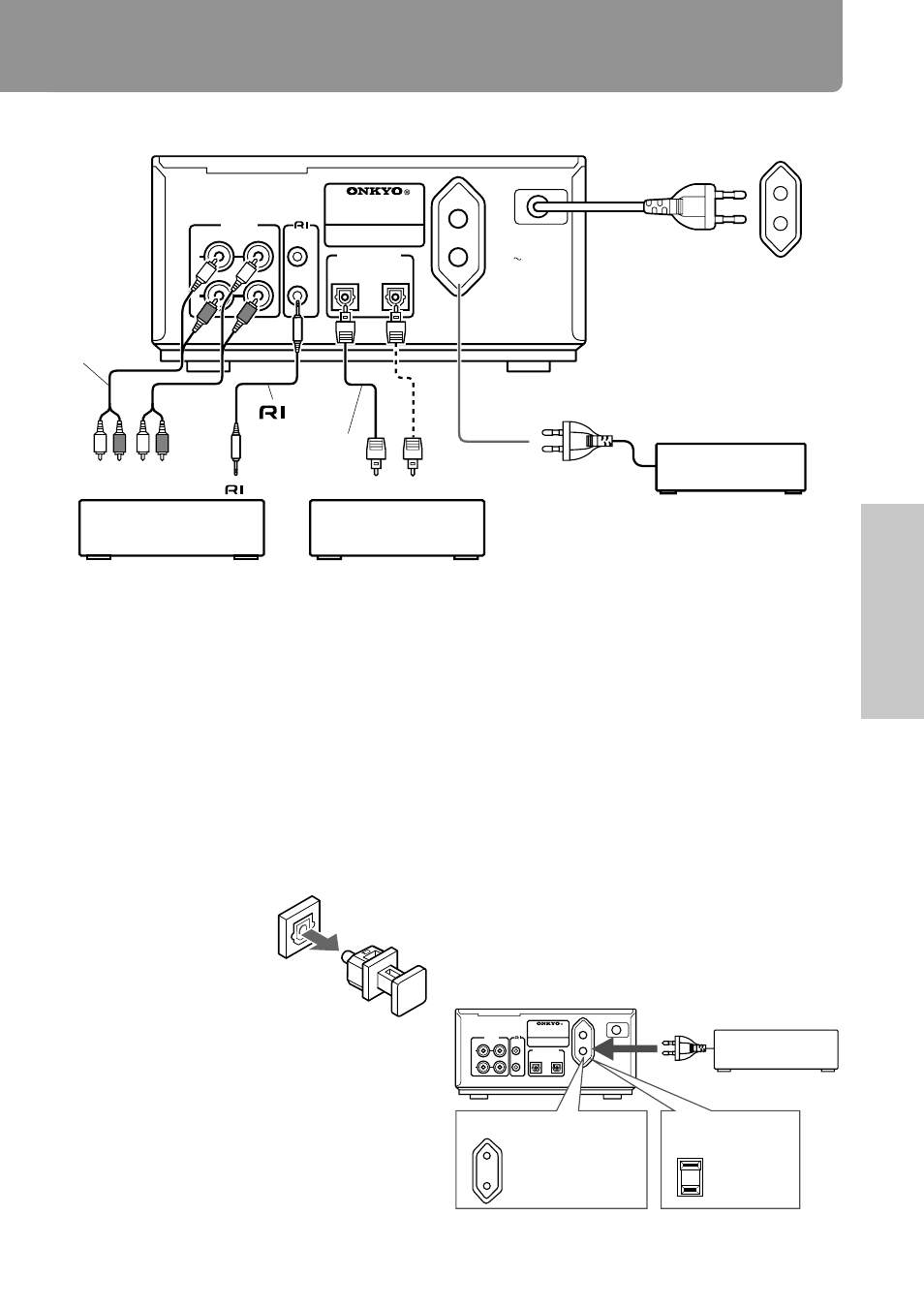

Connecting to the other components (continued)
1 Connecting to the Amplifier
Connect the MD-101A to the MD (or TAPE)
jacks of your amplifier.
2 Connecting to the Digital Input
Terminals (DIGITAL INPUT 1, 2)
You can perform digital recording on the MD-
101A if a CD (Compact Disc) player or DAT
(Digital Audio Tape) deck equipped with a digital
(OPTICAL) output terminal is available. For digital
recording, you need to connect the equipment
to either DIGITAL INPUT 1 or 2 terminal using
the supplied optical cable.
These terminals can also
be used for connecting an
amplifier that is equipped
with a digital output
terminal.
Note
• If you use DIGITAL INPUT 2 to connect an
amplifier, you will be unable to utilize the full
capabilities of the MD-101A.
• If you attempt to perform digital recording using
a digital input terminal that is not connected,
“D.In Unlock” will appear.
• Terminal protection caps are attached to the
DIGITAL INPUT terminals. Remove the cap for the
terminal you wish to use when connecting the
MD-101A to digital equipment. Replace the caps
if you are not using the DIGITAL INPUT terminals.
3 Connection to AC outlet
(UNSWITCHED)
The power cord of another unit can be connected
to this outlet.
Note
The shape, number, and total capacity of the AC
outlets may differ depending on the area in which
the unit is purchased.
230-240 V, 50/60 Hz model: Capacity is 100 W in
total.
120 V, 60 Hz model: Capacity is 120 W in total.
Connections
Amplifier
CD player,
DAT deck, etc.
To wall outlet
Optical fiber
cable
Audio
connection
cable
cable
• This unit uses heat-sensitive parts. Do not place this unit on the Amplifier or Receiver.
L
R
ANALOG
REMOTE CONTROL INPUT OUTPUT
OPTICAL
1 2
DIGITAL INPUT
MINIDISC RECORDER MODEL NO. MD-101A
AC OUTLET
AC 220
-230 V
50 / 60 Hz
UNSWITCHED
100 W MAX.
230-240V, 50/60Hz models
Capacity is
100 watts.
120V, 60Hz models
Capacity is
120 watts.
