Connecting the AV receiver
—Continued
The speakers can easily be wall mounted by using the
keyhole slots. To prevent the speaker from vibrating
against the wall, attach two of the supplied thick rubber
stoppers to the rear of each speaker.
To mount the front or surround speakers vertically, use
the keyhole slot shown to hang each speaker on a screw
that’s securely screwed into the wall.
Front speakers (SKF-370)
Surround speakers (SKR-370)
To mount the center speaker horizontally, use the two
keyhole slots shown to hang each speaker on two screws
that are securely screwed into the wall.
Center speaker (SKC-370/SKC-370C)
Caution:
A mounting screw’s ability to support a speaker depends
on how well it’s anchored to the wall. If you have hollow
walls, screw each mounting screw into a stud. If there are
no studs, or the walls are solid, use suitable wall anchors.
Use screws with a head diameter of 5/16" (9 mm) or less
and a shank diameter of 1/8" (4 mm) or less. With hollow
walls, use a cable/pipe detector to check for any power
cables or water pipes before making any holes.
Leave a gap of between 3/16"
(5 mm) and 7/16" (10 mm)
between the wall and the base
of the screw head, as shown.
(We recommend that you
consult a home installation
professional.)
We recommend using the provided rubber stoppers to
achieve the best possible sound from your speakers. The
rubber stoppers prevent the speakers from moving,
providing a more stable platform. Use thick stoppers for
the center speaker, and thin stoppers for the other
speakers.
If the subwoofer is placed on a hard floor (wood, vinyl,
tile, etc.) and playback is very loud, the subwoofer’s feet
may damage the flooring. To prevent this, place the
supplied pads underneath the subwoofer’s feet. The pads
also provide a stable base for the subwoofer.

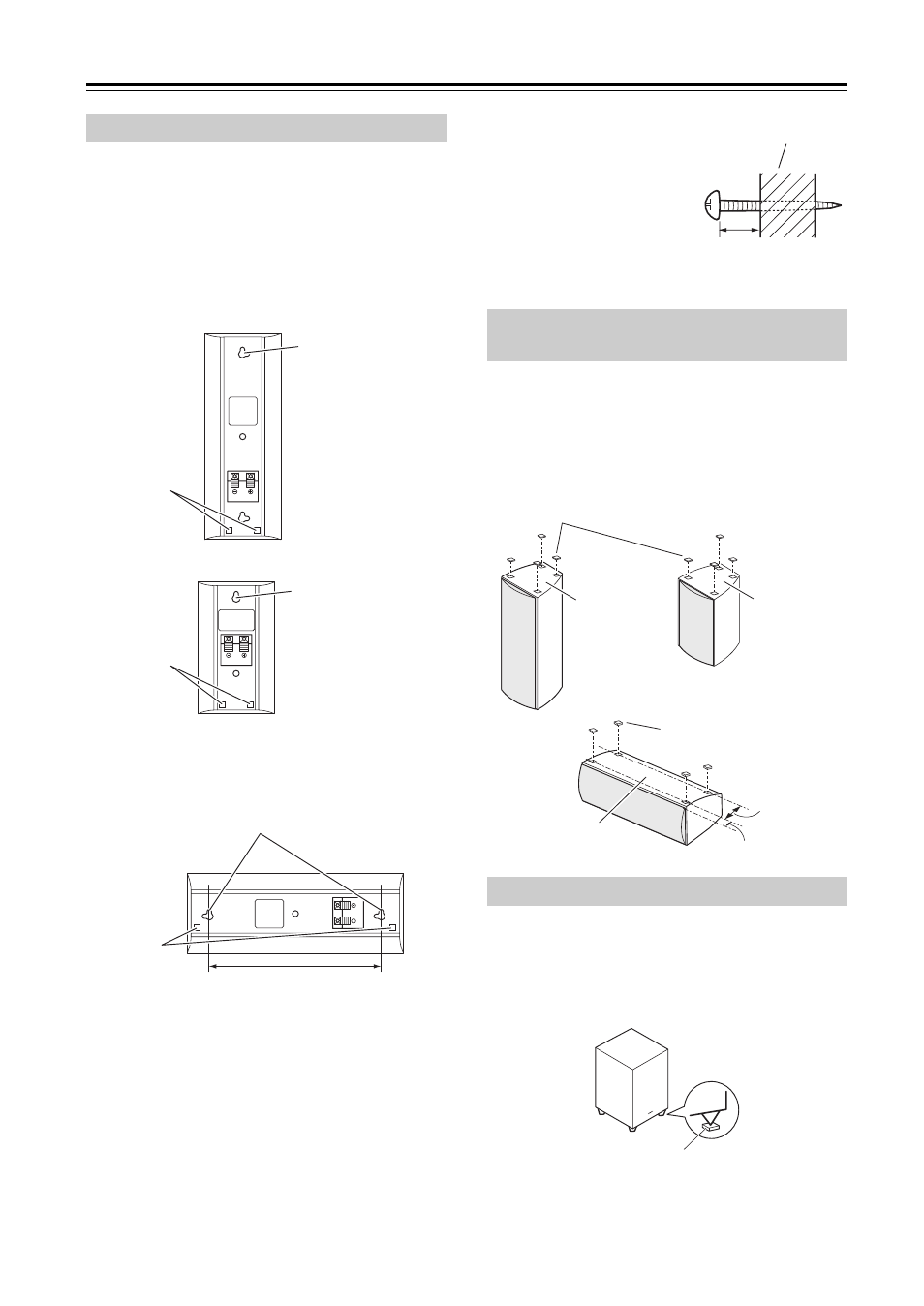

Wall Mounting
Keyhole slot for wall
mounting
Thick
rubber
stoppers
Keyhole slot for wall
mounting
Thick
rubber
stoppers
8-9/16" (217 mm)
Keyhole slot for wall mounting
Thick
rubber
stoppers
Using the Rubber Stoppers for a
More Stable Platform
Using the Floor Pads for Subwoofer
3/16" – 7/16"
(5 mm) – (10 mm)
Wall
1/2" (12 mm)
2-3/16"
(55 mm)
Thin rubber stoppers
Bottom of the
SKF-370 Bottom of the
SKR-370
Thick rubber stoppers
Bottom of the
SKC-370/SKC-370C
Pad
