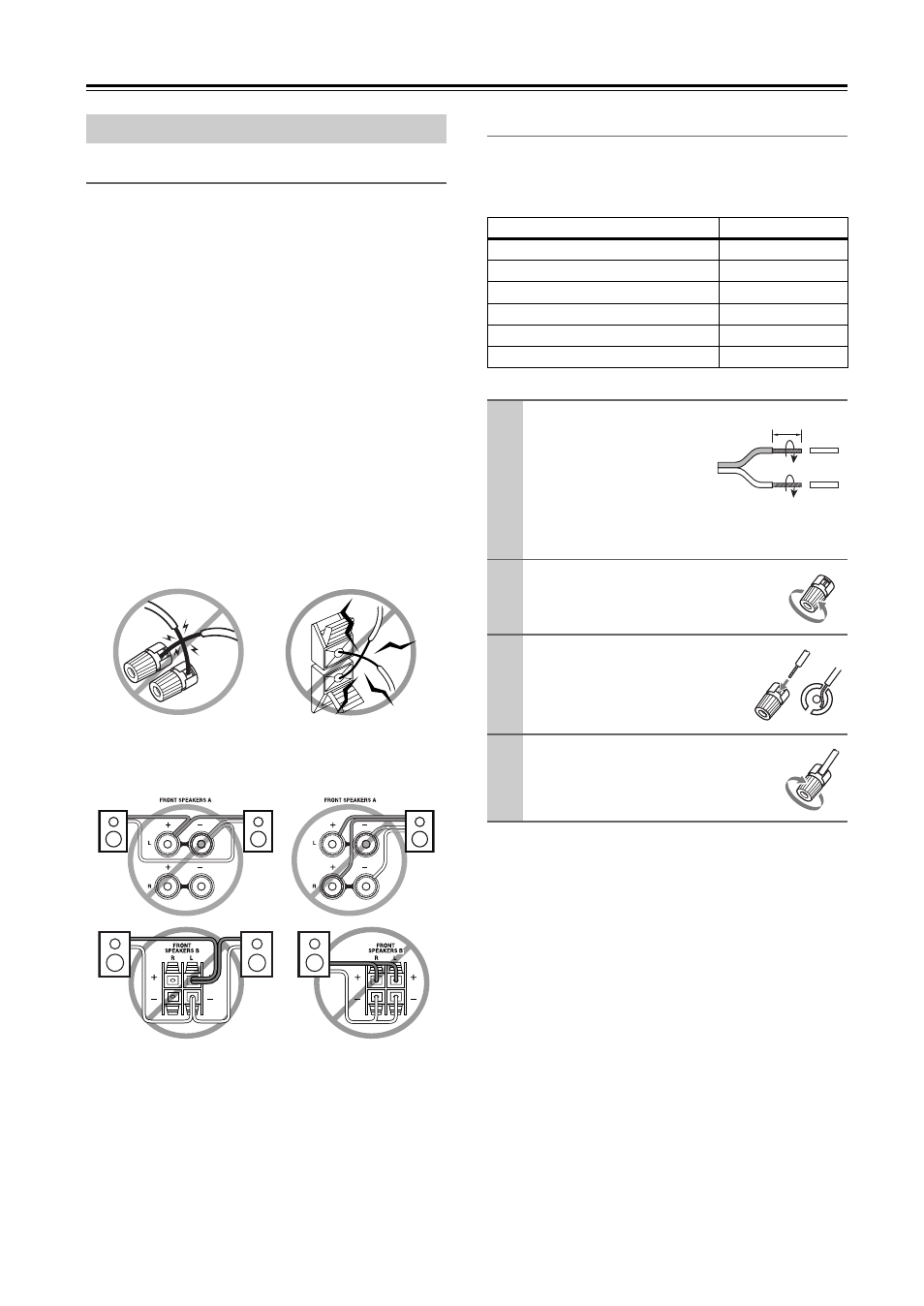

Connecting the AV receiver
Speaker Connection Precautions
Read the following before connecting your speakers:
• You can connect speakers with an impedance of
6 ohms or higher. If you use speakers with a lower
impedance, and use the amplifier at high volume
levels for a long period of time, the built-in protection
circuit may be activated.
• Disconnect the power cord from the wall outlet before
making any connections.
• Read the instructions supplied with your speakers.
• Pay close attention to speaker wiring polarity. Connect
positive (+) terminals to only positive (+) terminals,
and negative (–) terminals to only negative (–)
terminals. If you get them the wrong way around, the
sound will be out of phase and will sound unnatural.
• Unnecessarily long or very thin speaker cables may
affect the sound quality and should be avoided.
• Be careful not to short the positive and negative wires.
Doing so may damage the AV receiver.
• Don’t connect more than one cable to each speaker
terminal. Doing so may damage the AV receiver.
• Don’t connect a speaker to several terminals.
For North American model
• If you are using banana plugs, tighten the speaker
terminal before inserting the banana plug.
• Do not insert the speaker code directly into the center
hole of the speaker terminal.
Connecting the Speaker Cables
The AV receiver’s positive (+) speaker terminals are
color-coded for ease of identification. (The negative (–)
speaker terminals are all black.)
FRONT SPEAKERS A
Connecting Your Speakers
FRONT SPEAKERS A OTHERS
Speaker Color
Front left White
Front right Red
Center Green
Surround left Blue
Surround right Gray
Subwoofer Purple
1
Strip about 5/8" (15
mm) of insulation from
the ends of the
speaker cables.
(Supplied speaker
cables are already
stripped.)
2
Unscrew the terminal.
3
Fully insert the bare wire.
4
Screw the terminal tight.
5/8"(15mm)
