CONNECTING THE SUBWOOFER
TO AN AMPLIFIER/RECEIVER
You can connect your subwoofer to an amplifier/receiver's speaker terminals or line out
terminals.

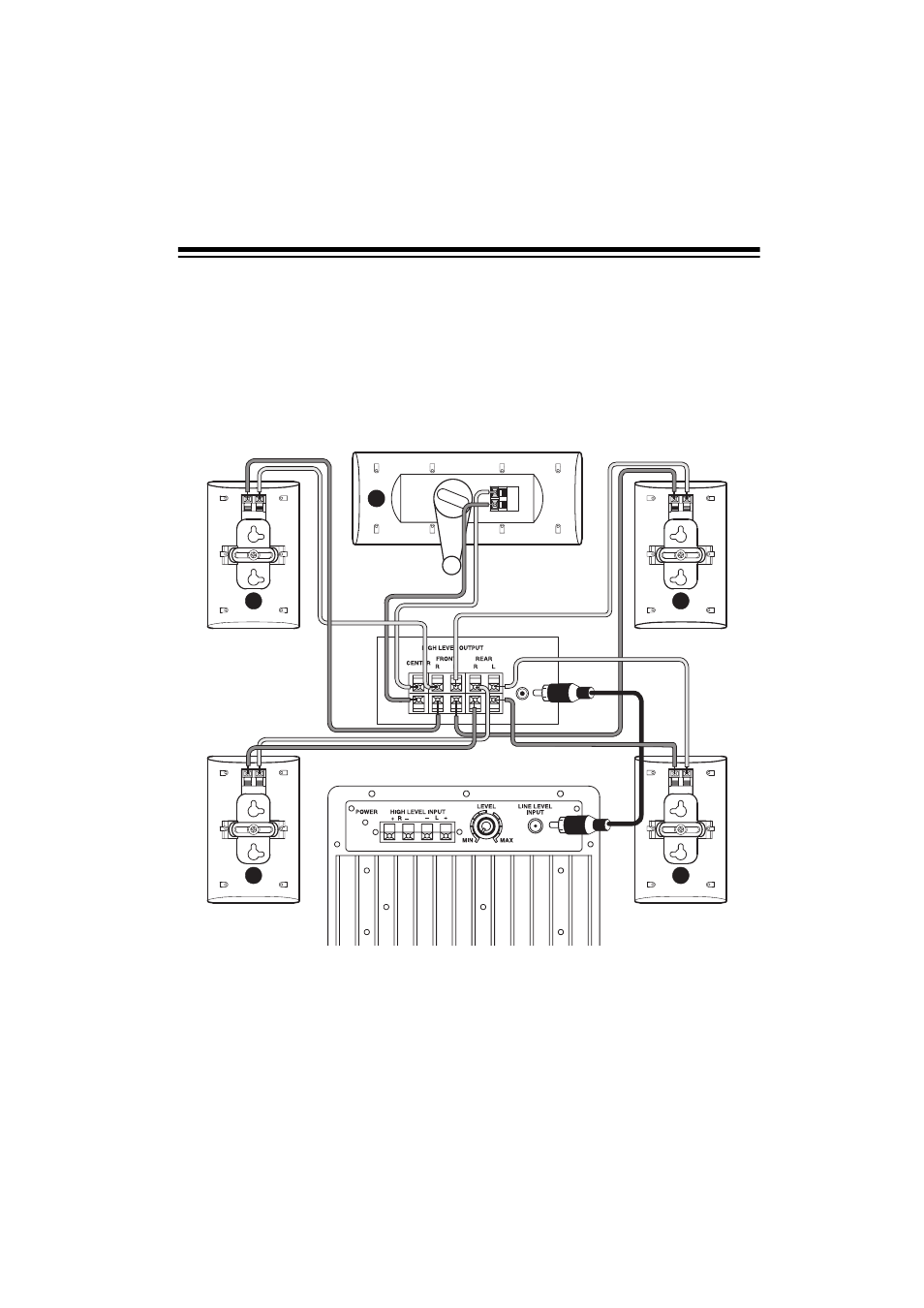

Connecting the Subwoofer to the LINE LEVEL INPUT Jack
Your amplifier/receiver's line out jacks might be labeled either REC OUT or PRE OUT. In that
case, connect the subwoofer's
LINE LEVEL INPUT
jack to the amplifier/receiver's line out jack
with phono (RCA) cables (not supplied). If your amplifier/receiver has “STEREO OUT” for
subwoofer, connect with dual-to-single (RCA) cable (not supplied).
Center Speaker
Subwoofer
Right Rear
Speaker
Left Rear
Speaker
Right Front
Speaker
Left Front
Speaker
