RIDGID WD1665 - Manual (Page 7)

1. Remove the power head and lid
assembly from the dust drum and set
aside.
2. Turn the dust drum upside down on the
floor.
3. Insert the accessory caddy into the
bottom of drum, as shown, on the
opposite side of the drain cap.
4. Push on the accessory caddy until it is
flush with bottom of dust drum.
5. Insert the caster stem into the socket of
the accessory caddy as shown
(2 places).
6. Push on the caster until the ball on the
caster stem is inserted all the way into
the socket. You will hear the ball snap
into the socket and the caster will swivel
easily when positioning is correct.

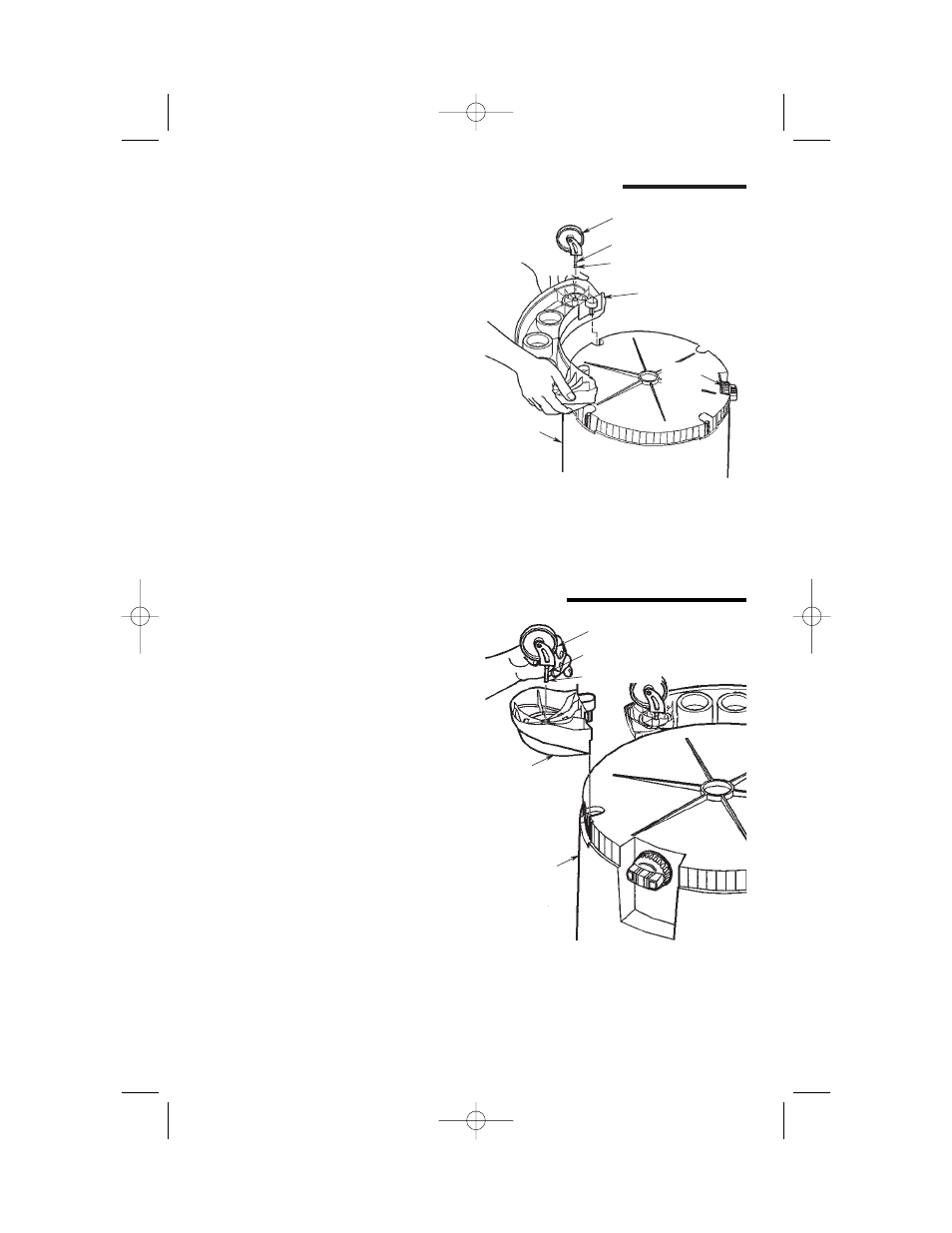

Accessory Caddy/Caster Assembly
Caster
Caster Ball
Caster Stem
Drain
Cap
Accessory
Caddy
Dust
Drum
With the power head and lid assembly
removed from the drum, and the drum
upside down on the floor:
1. Insert the 2 caster feet into the bottom
of drum, as shown on the 2 locations
near the drain cap.
2. Push on the caster foot until the foot is
flush with bottom of the dust drum.
3. Insert the caster stem into the socket of
the caster foot, as shown (2 places).
4. Push on the caster until the ball on the
caster stem is inserted all the way into
the socket. You will hear the ball snap
into the socket and the caster will
swivel easily when positioning is
correct.
5. Turn the drum upright.
Caster/Caster Foot Assembly
Caster
Caster Stem
Caster Ball
Caster
Foot
Dust
Drum
7
