Section 4 Verifying Operation

1. When using the E6000 emulator for the H8S/2338 series, turn on the emulator according to the

procedures described in the H8S Series E6000 Emulator User’s Manual (HS2000EPI61HE).

2. Verify the user system interface cable connections by accessing the external memory and ports

to check the bus states of the pins with the MEMORY_FILL command (emulator command).
If an error is detected, recheck the soldered IC socket and the location of pin 1.

3. The emulator connected to this user system interface cable supports two kinds of clock sources

as the MCU clock: an emulator internal clock and an external clock on the user system. For
details, refer to the Emulator Supplementary Information (HS2338EPI61HE).
 To use the emulator internal clock

Select the clock in the emulator station as the system clock (

φ), by using the CLOCK

command (emulator command).

 To use the external clock on the user system

Select external clock t or t2 with the CLOCK command (emulator command). Supply the
external clock from the user system to the emulator. Connect a crystal oscillator to the
EXTAL and XTAL terminals for the system clock (

φ), or input the external clock from the

EXTAL terminal on the cable head. Select the external clock as the system clock (

φ), by

using the CLOCK command (emulator command). For details, refer to section 22, Clock
Pulse Generator, in the H8S/2338 Series, H8S/2328 Series, H8S/2318 Series Hardware
Manual.

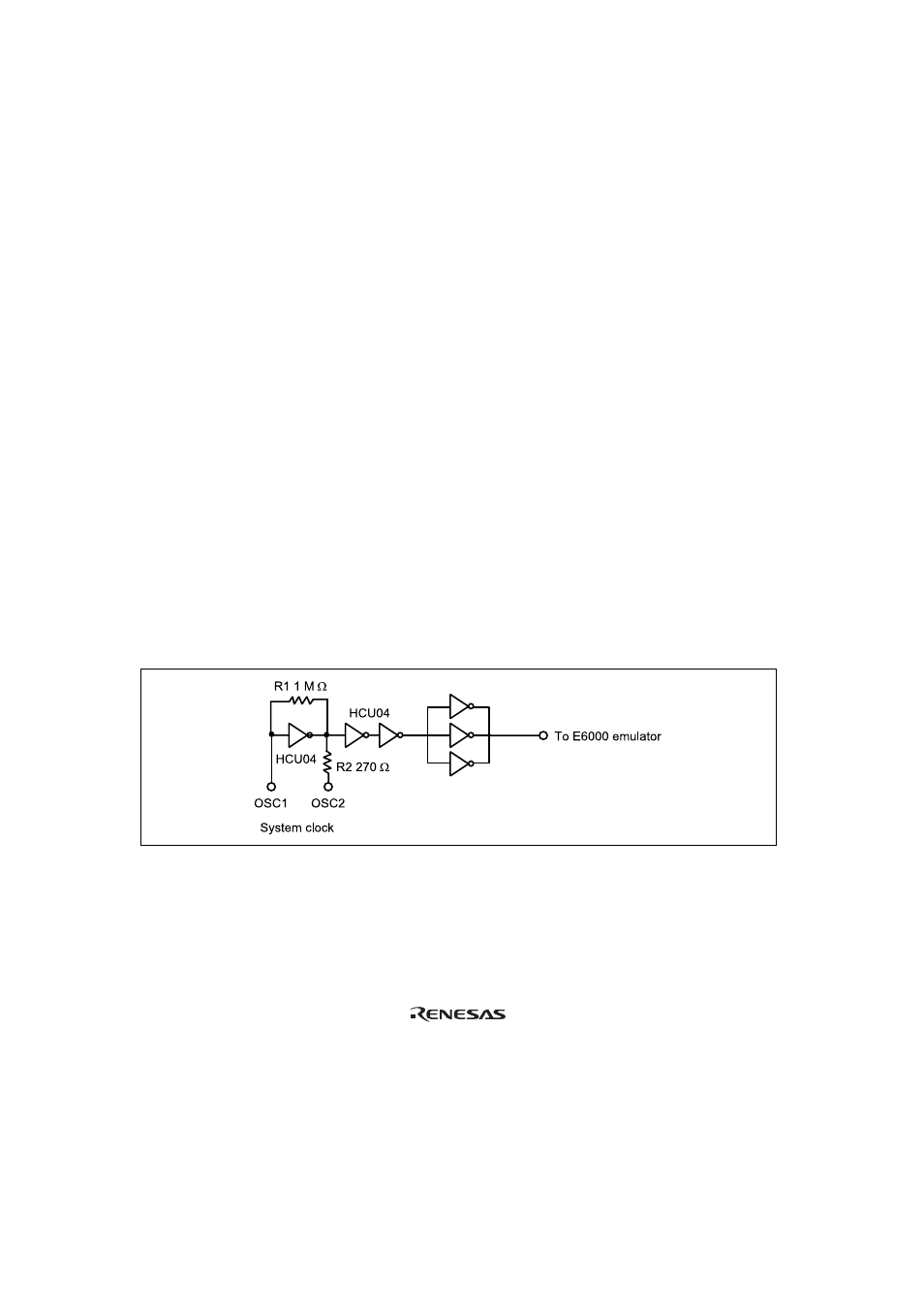

Figure 9 shows oscillator circuit on the user system interface cable.

Figure 9 Oscillator Circuit
