1. Outline
The M3T-F160-64NSA is a converter board for connecting the
160-core flexible cable FLX160 to a foot pattern for 64-pin
0.8-mm-pitch LQFP (PLQP0064GA-A).
2. Package Components
(See Figure 1)
(1) M3T-F160-64NSA converter board ............................ 1 pc.
(2) NQPACK064SA160
(made by Tokyo Eletech Corporation)
.......... 1 pc.
(3) YQPACK064SA
(made by Tokyo Eletech Corporation)
................ 1 pc.
(4) YQSOCKET064SAF
(made by Tokyo Eletech Corporation)
......... 1 pc.
Pre-mounted on the converter board M3T-F160-64NSA
(5) YQ-GUIDE’s
(made by Tokyo Eletech Corporation)
....................4 pcs.
(6) M3T-F160-64NSA User's Manual (This manual)
3. Specifications
Table 1 Specifications
Applicable package
PLQP0064GA-A
formerly 64P6U-A
(64-pin 0.8-mm-pitch LQFP)
Insertion/removal
iterations of connector
50 times guaranteed
4. Usage
(See Figure 2)
The M3T-F160-64NSA can be used for debugging and
board-mounted evaluation in common by mounting the
NQPACK064SA160 on the user system.
(1) For debugging
Mount the NQPACK064SA160 on the foot pattern of the
user system and attach the YQPACK064SA on it. And
connect the probe of the emulation pod to the upper
connector of the M3T-F160-64NSA. Then connect the
YQPACK064SA and the M3T-F160-64NSA.
(2) For onboard evaluation
Mount an MCU with on-chip flash memory or QzROM
and the HQPACK064SA160 (separately available) in that
order on the NQPACK064SA160 on the user system.
Before using the M3T-F160-64NSA, be sure to read "6.
Precautions" on page 3.
M3T-F160-64NSA
YQ-GUIDE (x4)
YQPACK064SA
NQPACK064SA160

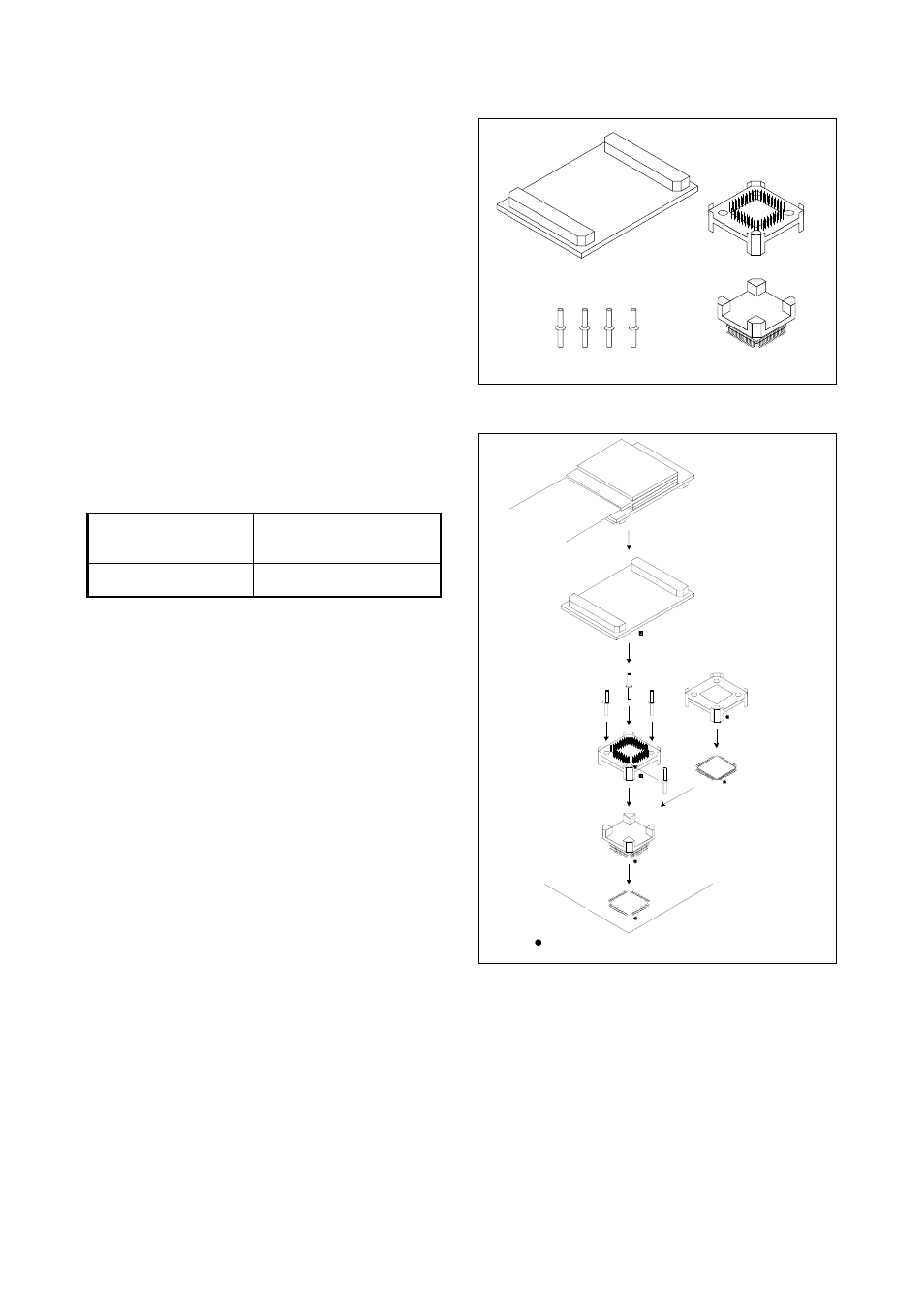

Figure 1 Package components of the M3T-F160-64NSA
M3xx xxT- RLFS,
FLX160-PRB
or
M3xxxx Tx-EPB
(1) For debugging
M3T-F160-64NSA
YQ -GUIDE (x4)
YQPACK064SA
NQPACK064SA160
64-pin 0.8-mm-pit ch
(64P6U-A) f oot pat tern
(2) For on-board evaluat ion
HQPACK064SA160
(separat ely av ailable)
MCU wit h on-c hip f lash
memory or Qz ROM
: No. 1 pin
Be sure t o align t he pins.
64 pin 0.8-mm-pitch
PLQP0064GA-A
foot pattern
Figure 2 Usage of the M3T-F160-64NSA
(2/4)
