4.2 Attaching Adapter to PROM Programmer
As shown in Figure 4.1, attach the No. 1 pin of the PCA7402E connector (standard-pitch 32-pin pin-
header mounted) to the No. 1 pin of the IC socket of the PROM programmer.
Be careful when attaching to the PROM programmer because incorrect insertion
can cause fatal damage to the MCU.

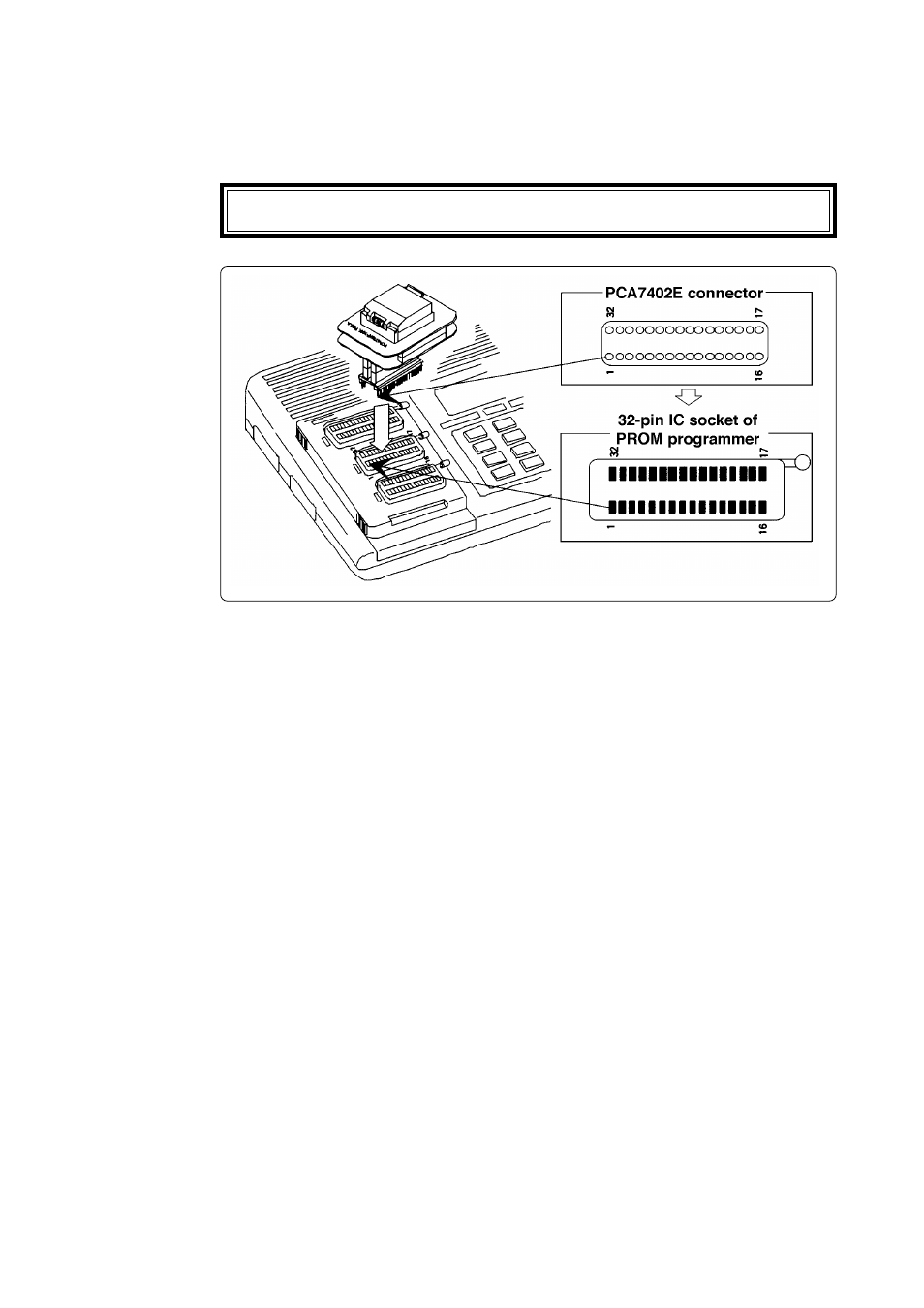

Figure 4.1 Attaching Adapter
