1. Outline
The M3T-F160-80NSD is a converter board for connecting the
160-core flexible cable FLX160 to a foot pattern for 80-pin
0.5-mm-pitch LQFP (80P6Q-A).
2. Package Components (See Figure 1)
(1) M3T-F160-80NSD converter board ............................ 1 pc.
(2) NQPACK080SD-ND (made by Tokyo Eletech Corporation) ......... 1 pc.
(3) YQPACK080SD
(made by Tokyo Eletech Corporation)
................ 1 pc.
(4) YQSOCKET080SDF
(made by Tokyo Eletech Corporation)
......... 1 pc.
Pre-mounted on the converter board M3T-F160-80NSD
(5) YQ-GUIDE’s
(made by Tokyo Eletech Corporation)
....................4 pcs.
(6) M3T-F160-80NSD User's Manual (This manual)
3. Specifications
Table 1 Specifications
Applicable package
80P6Q-A
(80-pin 0.5-mm-pitch LQFP)
Insertion/removal
iterations of connector
50 times guaranteed
4. Usage (See Figure 2)
The M3T-F160-80NSD can be used for debugging and
board-mounted evaluation in common by mounting the
NQPACK080SD-ND on the user system.
(1) For debugging
Mount the NQPACK080SD-ND on the foot pattern of the
user system and attach the YQPACK080SD on it. And
connect the probe of the emulation pod to the upper
connector of the M3T-F160-80NSD. Then connect the
YQPACK080SD and the M3T-F160-80NSD.
(2) For onboard evaluation
Mount an MCU with on-chip flash memory or one-time
PROM and the HQPACK080SD (separately available) in
that order on the NQPACK080SD-ND on the user system.
Before using the M3T-F160-80NSD, be sure to read "6.
Precautions" on page 3.
M3T-F160-80NSD
YQ-GUIDE (x4)
YQPACK080SD
NQPACK080SD-ND

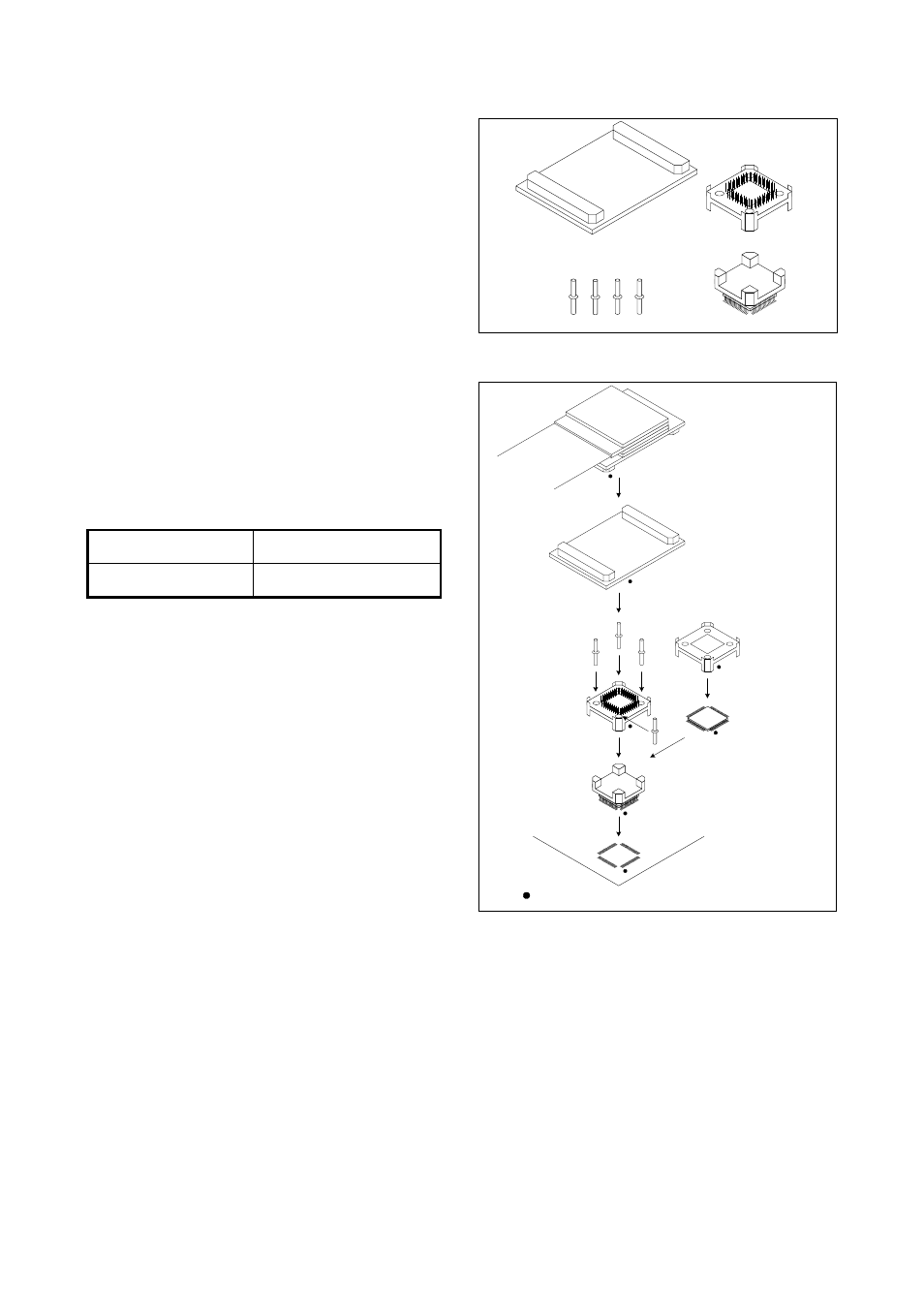

Figure 1 Package components of the M3T-F160-80NSD
M3xxxxT-RLFS,
FLX160-PRB
or
M3xxxxTx-EPB
(1) For debugging
M3T-F160-80NSD
YQ-GUIDE (x4)
YQPACK080SD
NQPACK080SD-ND
80-pin 0.5-mm-pitch
(80P6Q-A) foot pattern
(2) For on-board evaluation
HQPACK080SD
(separately available)
MCU with on-chip flash
memory or one-time PROM
: No. 1 pin
Be sure to align the pins.
Figure 2 Usage of the M3T-F160-80NSD
