42 D OMINION KSX U SER M ANUAL
Configuration Options:

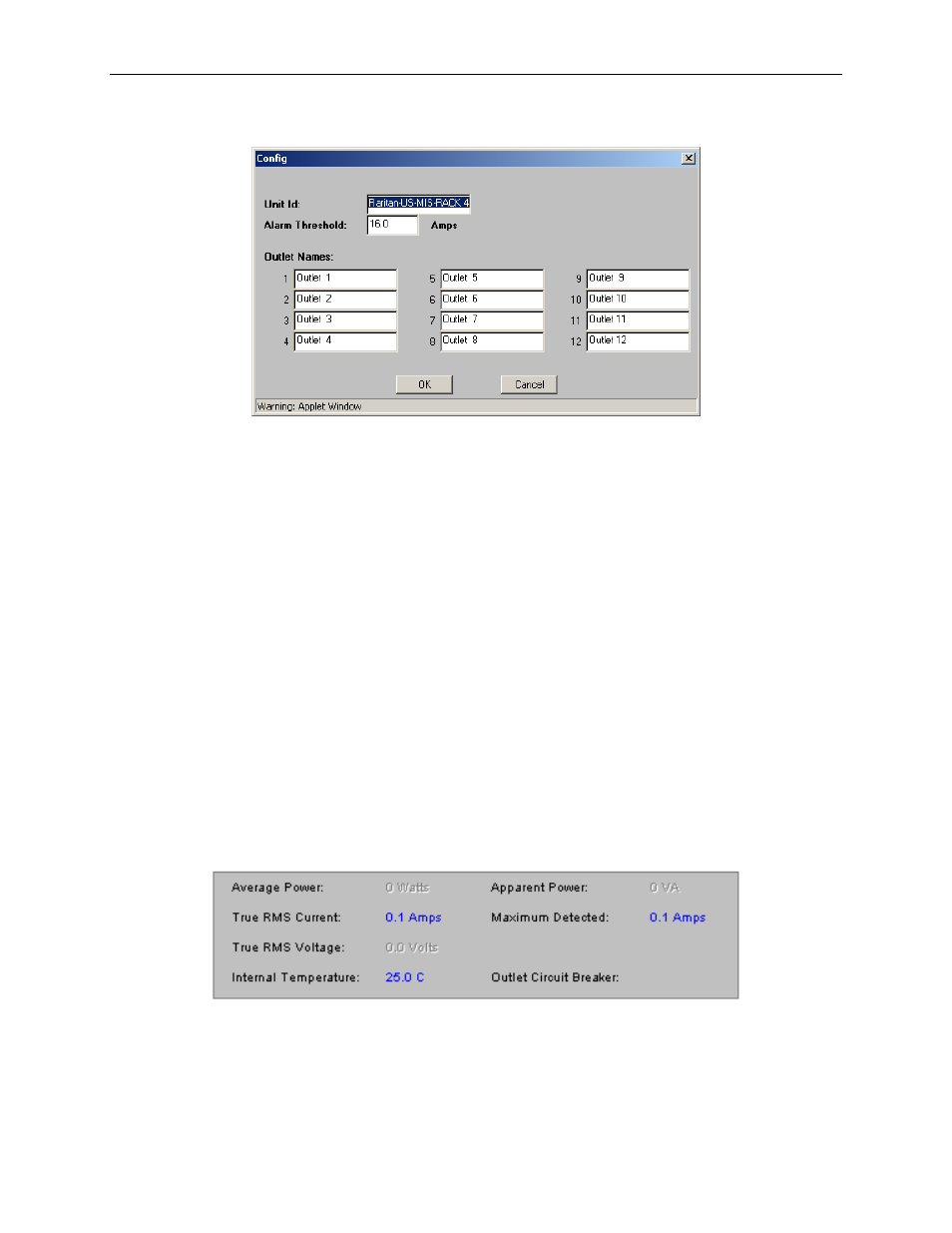

Click on the [Config] button the PowerBoard window to configure outlets on the power control unit. The Config
window will appear.
Options for Outlet configuration include:
1. Assign a Unit ID: Give the power control unit an identification name, for example, using City, Building, Rack,
or other information. For example: Raritan-US-MIS-RACK 4.
2. Set the Alarm Threshold, in Amps: When the threshold is reached, an audible alarm is activated to users
located next to the power control unit.
3. Assign outlets specific Outlet Names: For easier identification and control, give each outlet a name.
Click on the [OK] button when finished to close the Configuration window and launch the PowerBoard Applet.
For your convenience, PowerBoard parameters are listed in the gray box in the PowerBoard window. These
parameters are details that apply to the entire bank of outlets, and not on a per-outlet level.
Parameters include:
• Average power
• True RMS Current
• True RMS Voltage
• Internal Temperature
• Apparent Power
• Maximum Detected
• Outlet Circuit Breaker
