Cable Replacement Remote

RCRP05B Universal Remote Control
Owner’s Manual

Manual del Propietario (parte posterior)

Introduction

The RCRP05B Cable Replacement Remote by RCA is our
latest generation universal remote control. Its sophisticated
technology allows you to consolidate up to five of your
original home entertainment remote controls into one
easy-to-use product. Moreover, its packed with advanced
features such as:
• Dedicated keys to control popular functions on your

DVR/PVR (Digital/Personal Video Recorder)

• Programmable MASTER POWER key for master on/off

control of your home entertainment equipment with a

single keypress

• Programmable Macro Keys to consolidate multi-step

actions into a single keypress

• Channel Lock to lock channel selection only to the cable

box or satellite receiver

• Volume Lock to lock volume controls to one mode or

individual modes

• Code Search to help program control of older or

discontinued components

• Color-coded keys to quickly locate popular functions for

cable and satellite

• Code library for popular video and audio devices
Before using the product, you will need to install batteries
and also perform some programming to operate the
specific home entertainment devices you wish to control.

Features and Functions

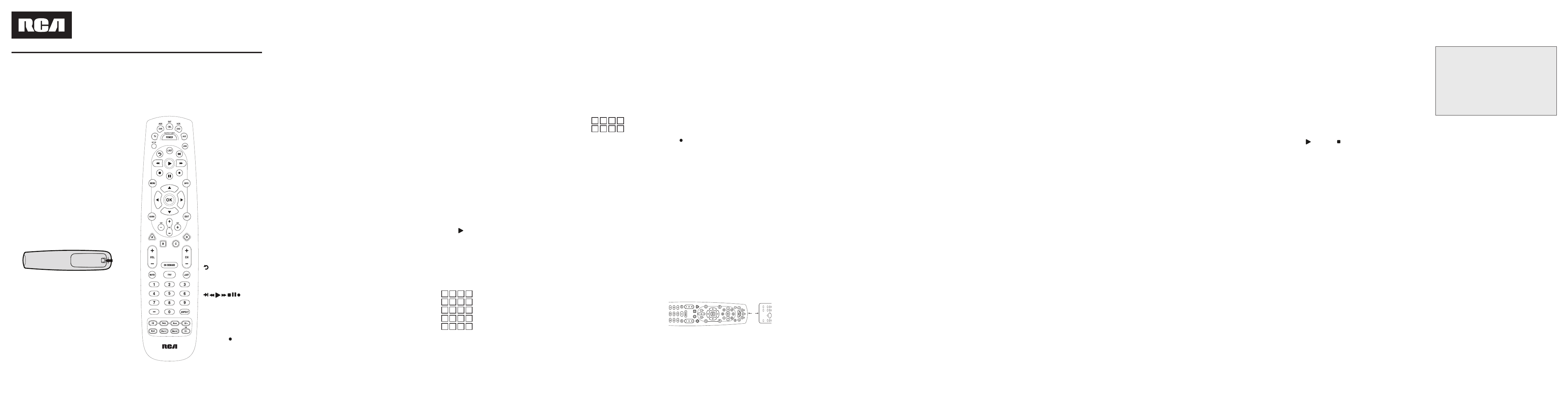

Use the illustration below to locate features on the
RCRP05B Cable Replacement Remote and then study the
key descriptions below to learn how they function.
To find out what type of devices can be controlled by each
device key after programming, see the “Device Table”
section.

TV, DVR/AUX, CBL/SAT,

DVD/VCR, and AUD select

a home entertainment

device to control. Also see

the “Device Table” section.

Each device key has an

embedded LED (red light)

that blinks upon selection

and indicates the remote

control is working and (after

programming) is sending

signals.
NOTE: If you have a digital

TV converter, you can

program it to the CBL/SAT or

DVR/AUX keys.
POWER/MASTER POWER

turns on or off a home

entertainment device. For

MASTER POWER control, see

the “Using the Master Power

Key” section.
SETUP is used in all

programming sequences.
LIVE commands your PVR/

DVR to return to watching

live TV.
LIST displays a list of

recorded shows on your PVR/

DVR.

(replay) commands your

PVR/DVR set-top box to

instantly replay the last 7

seconds of a program you

are watching.

(skip

forward, reverse, play,

forward, stop, pause,

record) In all modes

except CBL/SAT, use these

keys to control a VCR, DVD

player, or a PVR (after

selecting a desired device).

To record in DVD/VCR

mode, press twice. In CBL/

SAT mode, use these keys

to control the DVR/PVR

functions of the cable box or

satellite receiver.
MENU displays the active

device’s menu system.
INFO displays the current

channel and program

information.

Programming Device Control

Before you can start using this remote, you must program it
to control your components.
NOTES:
The RCRP05B Cable Replacement Remote is preprogrammed

to operate an RCA TV, a Toshiba DVD player, an RCA VCR,

a Pioneer audio receiver, and a Motorola cable box. If you

own these brands of these devices, test the remote with

them. If they work, you do not have to program the remote

to operate them.
For control of a Combo device (for example, a TV/VCR

combo), skip this section and perform the instructions

in the “Setting Up a Combo Unit” section. Also refer

to the “Device Table” to find out which devices can be
programmed onto each device key.

1. Turn on a device and, if applicable, insert video media,

(e.g., cassette or disc).

NOTE: Please read steps 2 through 5 completely before
proceeding. Highlight or write down the codes and
device you wish to program before moving on to

step 2

.

2. On the remote control, press a device key once (i.e., DVD/

VCR, DVR/AUX, AUD, TV, or CBL/SAT); it will blink once.

3. Press and hold SETUP until the selected mode key blinks

twice, then release SETUP.

4. Use the codes in the accompanying code list to locate

the type of device and brand name and then enter

the first four-digit code for your device. If performed

correctly, the selected mode key will blink twice.

NOTE: If the selected mode key emits a long blink,
the entry is invalid. Repeat steps 2 through 4 and try
entering the same code again.

5. Aim the remote control at the device and press POWER

once. The device should turn off. If it does not, repeat

steps 2 through 4, trying each code for your brand until

you find one that works. If it still does not respond,

try searching for the code (see the “Searching for Your

Code” section).

NOTE: If the device does not have a POWER key (e.g.,
DVD and VCR), press the
(Play) key.

6. Once you’ve found a code that turns your device on and

off, test other remote commands for that device (e.g.,

volume, channel, menu, etc.).

NOTE: By default, the CH+/- keys change channels on

the CBL/SAT device regardless of what mode you’re in.

So, you should only use these keys to test for CBL/SAT

device codes at this point.

7. Repeat steps 1 through 6 for each device you want the

remote control to operate. For future reference, write

down each working device code in the boxes below.

DVD/VCR Code:

DVR/AUX Code:

AUD Code:

CBL/SAT Code:

TV Code:

Setting Up a Combo Unit

If you own a combo unit such as a TV/VCR Combo or a TV/
DVD Combo, you need to follow special steps to set it up.
Perform the following instructions to control combo device:
1. For a TV/VCR Combo, turn on your TV/VCR Combo and

insert a video cassette. (For a TV/ DVD Combo, insert a

DVD).

2. On the remote control, press DVD/VCR once; it will blink

once. Then press and hold SETUP until the DVD/VCR key

blinks twice.

3. Use the codes in the accompanying code list to locate the

brand name and enter the first four-digit code for your

combo device (for example, TV/VCR). If you perform this

procedure correctly, the DVD/VCR key will blink twice.

NOTE: If the DVD/VCR key did not blink twice after

entering the codes last digit, repeat steps 2 and 3 and

try entering the same code again. If you’ve located

a setup code that works for your combo device (for

example, a TV/VCR Combo) and a separate TV code

is also listed, you’ll need to program this code into

the remote control to access volume control (see the
“Programming Device Control” section).

4. Aim the remote control at your combo device (for

example, TV/VCR Combo) and press POWER once. The

device should turn off. If it does not respond, repeat

steps 2 and 3, trying each code listed for your brand until

you find one that works. If it still does not respond, try

searching for the code (see the “Searching for Your Code”

section).

5. For future reference, write down each working device

code in the boxes below:

TV/VCR or TV/DVD Code:

TV Code (if used):

Searching For Your Code

If your home entertainment device does not respond to the
RCRP05B Cable Replacement Remote after trying all of the
codes listed for your brand, or if your brand is not listed at
all, try searching for your code.
For example, to search for a code for your TV:
1. Turn on your TV.
2. On the remote control, press TV once; it will blink once.

Then press and hold SETUP until the TV key blinks twice.

3. Enter 9 9 1. The TV key will blink twice.
4. Aim the remote control at the TV and press POWER once.
5. Press and release the CH+ key continuously, then stop

when the TV turns off.

NOTE: In the search mode, the remote control will send

IR codes from its library to the selected device, starting
with the most popular code first.

6. Press POWER. The TV should turn on, then press SETUP

once to lock in the code. The LED will blink twice to

indicate that the code is saved.

NOTE: If the TV does not turn on during step 6, then

slowly press and release CH- to go back through the
codes, then press SETUP when the TV turns on.

7. Test other remote commands for the TV (e.g., volume,

menu, etc.). If the commands you want to use with your

TV work, you’ve finished programming for your TV. If

they don’t, repeat steps 1-4 above. In step 5, don’t stop

when your TV turns off the first time—keep pressing

CH+ until it turns off again.

NOTE: By default, the CH+/- keys change channels on

the CBL/SAT device regardless of what mode you’re in.

So, you should only use these keys to test for CBL/SAT

device codes at this point.

8. To search for the codes of your other devices, repeat steps

1 through 7, but substitute the appropriate key (e.g.,

DVD/VCR, DVR/AUX, AUD, or CBL/SAT) for the device

you’re searching for.

Checking the Codes

If you have set up your remote control by searching for your
device code, you may need to find out which four-digit code
is operating your equipment.
For example, to find out which code is operating your TV:
1. On the remote control, press TV once; it will blink once.

Then press and hold SETUP until the TV key blinks twice.

2. Enter 9 9 0. The TV key will blink twice.
3. To view the code for the first digit, press 1 once. Count

the number of times the TV key blinks (e.g., 3 blinks = 3)

and write down the number in the left-most TV Code box

in the “Programming Device Control” section.

NOTE: If a code digit is 0, the selected mode key will
not blink.

4. Repeat step 3 three more times for the remaining digits.

Use 2 for the second digit, 3 for the third digit, and 4 for

the fourth digit. Finish writing down the code in the TV

Code boxes.

5. To check for other device codes, repeat steps 1 through 4,

but substitute the appropriate key (e.g., DVD/VCR, DVR/

AUX, AUD, or CBL/SAT) for the device you are checking.

Write down the codes in the appropriate boxes in the

“Programming Device Control” section.

Using Learning

The RCRP05B Cable Replacement Remote includes a
Learning feature so you can add functions that are unique
to your home entertainment devices (e.g., VCR tracking up
or down).

Learning Precautions

• Your original remote controls must be in working order

for learning to work properly.

• Learned keys are mode-specific, so each one can store a

unique function for each mode.

• Do not use the following keys for learning: device keys,

SETUP, (Record), Macro keys.

• Learning capacity is up to a total of 50 keys, depending

on the code being learned.

• Certain device functions are not learnable including

multi-frequency types, some high frequency ones, and

other unusual formats.

• For optimum learning, avoid high levels of ambient light

such as natural sunlight or energy-efficient fluorescent

lights.

NOTE: Please have your original remote controls handy
before programming learning.

Programming a Learned Key

NOTE: If more than 15 seconds pass between key
presses, the remote exits programming.

1. Press and hold SETUP until the last-selected mode key

blinks twice, then press 9 7 5.

NOTE: If the LED displays one long flash instead,
either your batteries are low, or the RCRP05B Cable
Replacement Remote has a memory fault.

2. Press a mode key once (i.e., DVD/VCR, DVR/AUX, AUD,

TV, or CBL/SAT) to assign a mode for learning.

3. Press the desired key on the RCRP05B once to store the

feature to be learned.

4. Place the RCRP05B Remote Control head-to-head (about

2” apart) from your original remote control. Also locate

the key (on your original remote control) that you want

the RCRP05B Cable Replacement Remote to learn.

Installing Batteries

1. On the back of the remote control, push the tab and lift

off the battery cover.

2. Insert two (2) AA batteries (not included). Match the +

and - marks with those in the battery case, then insert

them.

3. Align the covers keys with the cases holes and press the

cover back into place. The tab should click when the

cover is locked.

4. Test the remote control by pressing any mode key (e.g.,

TV). If the batteries are inserted correctly, the LED (red

light) will blink once.

NOTE: When batteries need replacement, the remote

control will cease to operate. Replace the batteries

and the unit will be restored to its full functionality,
complete with your favorite settings.

Battery Precautions:
• Do not mix old and new batteries.
• Do not mix alkaline, standard (carbon-zinc) or

rechargeable (nickel-cadmium) batteries.

• Always remove old, weak or worn-out batteries promptly

and recycle or dispose of them in accordance with Local
and National Regulations.

Navigation keys move the cursor in the program guide and

menu screens and navigate within the interactive service.
OK chooses options, PPV events, and tunes to programs

from the program guide.
GUIDE displays the program guide.
EXIT leaves (or clears) your device’s menu or guide.
DAY +/- moves a day forward (or back) on your device’s

program guide.
PAGE +/- moves up or down one screen at a time through

menu screens and the program guide.
A,B,C,D (red, green, yellow, blue) access additional

features on your cable box, satellite receiver, or Blu-ray disc

player (see your device manual for details).
VOL +/- raises (or lowers) the audio volume.
ON DEMAND accesses your program provider’s Video on

Demand services. The ON DEMAND key may not work with

your program provider. Test the key, and if it doesn’t take

you to your program provider’s On Demand service, you can

program the ON DEMAND key to access the service. See the

“Programming Macro Keys” section later in this manual for

more information.
CH+/- selects the next higher (or lower) channel. For DVD

players, use these keys to skip forward (or reverse) through

chapters. For amplifiers/receivers, use these keys to select

the next higher (or lower) preset station.
NOTE: By default, the CH+/- keys change channels on

the CBL/SAT device regardless of what mode you’re

in. To change the way the CH+/- keys work, see the

“Programming Channel Control Lock” section.
MUTE turns the sound off or on.
FAV cycles through your favorite channels on your cable

box or satellite receiver.
LAST recalls the last channel.
Number keys (1-9, and 0) tune directly to channels (e.g.,

09). For amplifiers/receivers, use the keypad numbers to

select inputs 1 through 10.
accesses digital sub-channels (for example, 8.1 or 8.2).
ASPECT changes the aspect ratio of the show you are

watching. (Not available on all devices).
PIP turns the Picture-In-Picture feature on or off (if

available on your device).
SWAP switches PIP images and sound between the main

and window pictures.
MOVE moves the PIP window to different positions on your

TV screen.
PIP CH +/- are used to select the next higher or lower

channel and is displayed on your PIP window.
INPUT in CBL/SAT mode is used to view other video sources

(A or B). In other modes, use INPUT to switch between the

source inputs on the device you are controlling.
MACRO1 and MACRO2 are reserved for use as macro keys

(see the “Programming Macro Keys” section).

Device Table

NOTE: Please refer to the table below when performing

the instructions in the “Programming Device Control” or
“Setting Up a Combo Unit” sections.
After programming, the RCRP05B Cable Replacement Remote
will be able to control the following types of devices:

TV

Television

DVR/AUX

DVR, PVR, or auxiliary TV, DVD player, VCR,

or digital TV converter

CBL/SAT

Cable box, satellite receiver, or digital TV

converter

DVD/VCR

DVD player, VCR, TV/VCR combo, or TV/DVD

combo

AUD

Audio amplifier, tuner, or receiver

2"

5. On the original remote, press and hold the key to be

learned. The device key’s LED will blink rapidly, then turn

off. Continue holding the key on the original remote

until the device key LED blinks twice.

NOTE: If the LED displays one long blink, a learning
error has occurred. Try repeating this step again until
a successful capture occurs. If the function is still not
captured, press and hold SETUP to exit programming and
review the “Learning Precautions” earlier in this section. If
needed, also see “Troubleshooting” later in this manual.
After review, start programming again at step 1.
