1. Outline
The R0E521134CFG00 is a converter board for connecting the
emulation probe R0E521000EPB00 and the compact emulator
R0E521000CPE00 for R8C/Tiny Series to a foot pattern for
32-pin 0.8-mm-pitch LQFP (PLQP0032GB-A, formerly
32P6U-A) of R8C/10, 11, 12, and 13 Groups.
2. Package Components (See Figure 1)
Table1 Package Components
Item Quantity
R0E521134CFG00
(Base board R0E521000CIF00 and 150mm
FFC cable included)
1 pc.
YQPACK032SA
(made by Tokyo Eletech Corporation)
1 pc.
NQPACK032SA
(made by Tokyo Eletech Corporation)
1 pc.
YQ-GUIDE
(made by Tokyo Eletech Corporation
4 pcs.
R0E521134CFG00
User's Manual (This manual)
1 pc.
3. Specifications
Table 2 Specifications
Applicable package
PLQP0032GB-A
(formerly 32P6U-A)
(32-pin 0.8-mm-pitch LQFP)
Between R0E521134CFG00 and
YQPACK032SA:
100 times guaranteed Insertion/removal
iterations of
connector
Between R0E521000EPB00 or
R0E521000CPE00 and
R0E521134CFG00:
50 times guaranteed
4. Usage (See Figure 2)
The R0E521134CFG00 can be used for debugging and board
mounted evaluation in common by mounting the
NQPACK032SA on the user system.
(1) For
debugging
Mount the NQPACK032SA and YQPACK032SA on the
foot pattern of the user system in that order. And fix them
with the YQ-GUIDE’s (do not use the screws included
with the YQPACK032SA).
After connecting the R0E521000EPB00 or
R0E521000CPE00 and R0E521134CFG00, connect the
R0E521134CFG00 to the YQPACK032SA.
(2) For
onboard evaluation
Mount an R8C/10, 11, 12 and 13 Groups MCU and
HQPACK032SA (separately available) in that order on the
NQPACK032SA on the user system. And fix them using a
screw included with the HQPACK032SA.
Before using the R0E521134CFG00, be sure to read "7.
Precautions" on page 4 and the R0E521000EPB00 or
R0E521000CPE00 User’s Manual.
YQ-GUIDE (x4) YQPACK 032SA NQPACK 032SA
R0E 521134CFG00

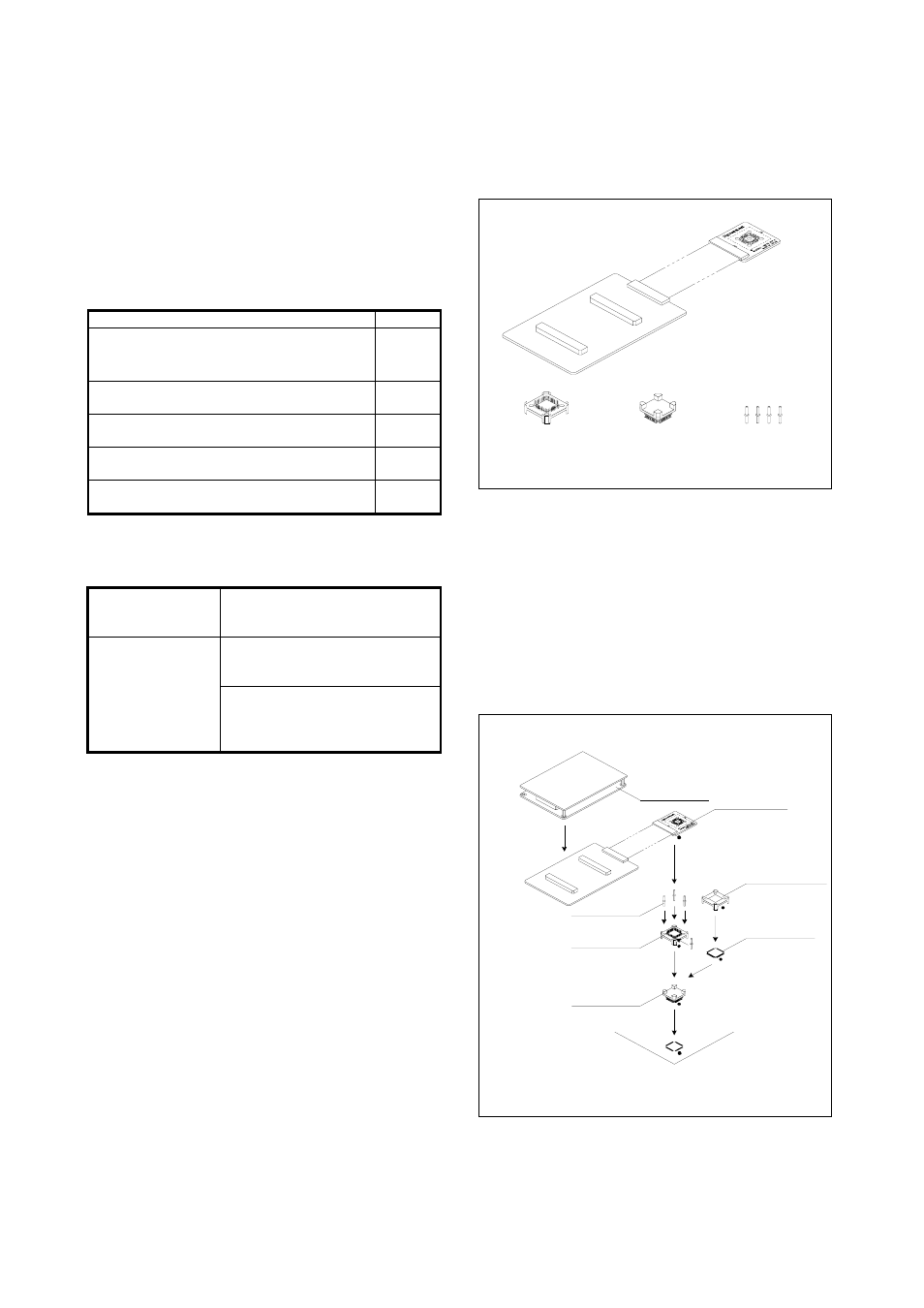

Figure 1 Package components of the R0E521134CFG00
●
: No . 1 pin
*: These products are included with the R0E 521134CFG 00 package .
32- pin 0.8- mm- pitch
(PLQP0032GB-A) foot pattern
YQ-GUIDE (x4) *
YQPACK 032 SA *
NQPACK 032SA *
HQPACK 032 SA
(separately available)
R0E 521134CFG00
(1) Debugging
(2) On- board evaluation
R0E521000 EPB00
or
R0E521000CPE00
MCU with on- chip
flash memory etc.
Figure 2 Usage of the R0E521134CFG00
(2/4)
