Blower/Fan (846-515)
1) Remove the two screws from the top of the
fan housing.
2) Slide the fan up into the rear heat shield.
3) After aligning holes, secure the fan to the
rear heat shield using the two screws
removed earlier.
Note: The connection cord should not
be in contact with any hot surfac-
e s .
Read the operating instructions for the fan
before using. See Page 17.
INSTALLATION

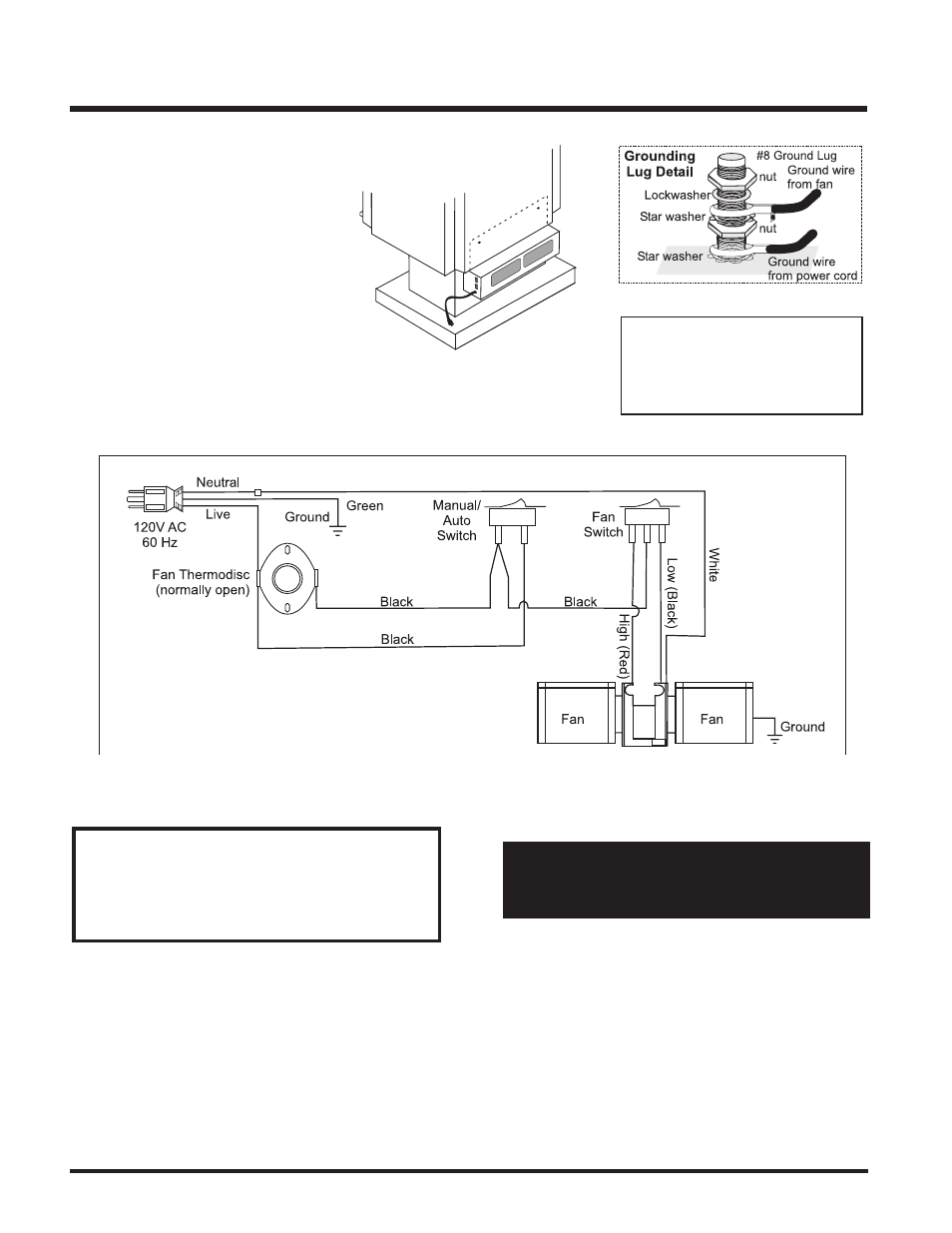

Blower/Fan Wiring Diagram
CAUTION: Label all wires prior to disconnection
when servicing controls. Wiring errors can cause
improper and dangerous operation.
WARNING: Electrical Grounding Instructions
This appliance is equipped with a three pronged (ground-
ing) plug for your protection against shock hazard and
should be plugged directly into a properly grounded
three-prong receptacle. Do not cut or remove the ground-
ing prong from this plug.
NOTE: This appliance, when installed, must
be electrically grounded in accordance
with local codes or, in the absence of local
codes, with the National Electrical Code,
ANSI/NFPA 70, or the Canadian Electrical
code, CSA C22.1.
