6 Rinnai Corporation RHFE-750ETR
Operating Instructions
Front Panel
Description Part Number
Flat Metal - Black Front R2700
Flat Metal - Stainless Steel Front R2701
Radius (curved) Glass - Silver Front R2702
Radius (curved) Glass - Black Front R2703
Front Panel Models

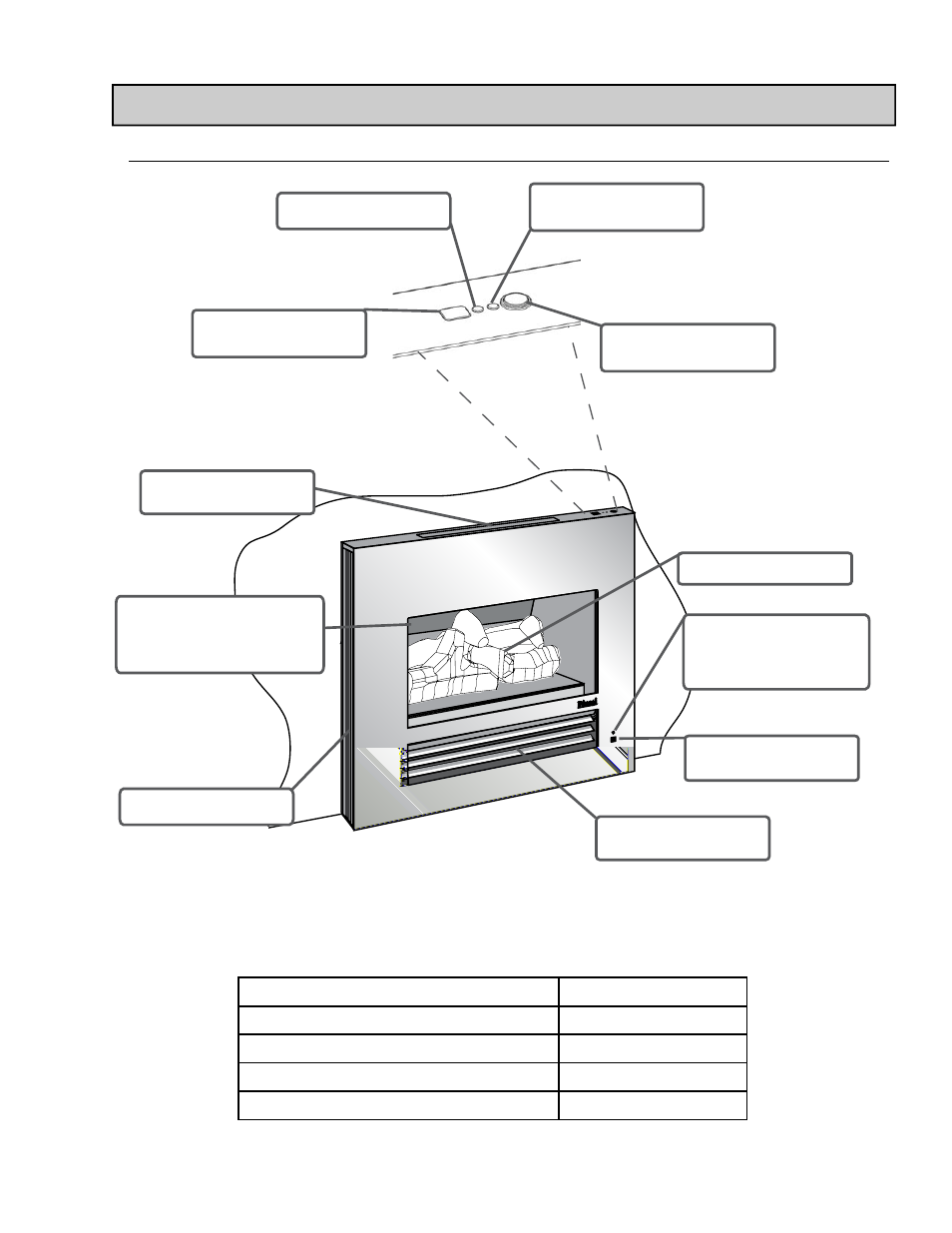

Front Panel
(features are the same for flat and curved models)
TIMER INDICATOR
ON/OFF BUTTON
OPERATION INDICATOR
FAULT CODE DISPLAY
CONTROL PANEL
OVERHEAT
DISCHARGE VENT
TEMPERED GLASS IN THE
FRONT PANEL
CERAMIC GLASS PANEL AT
THE COMBUSTION CHAMBER
ROOM AIR RETURN
LOG SET
LOUVER, WARM
AIR DISCHARGE
REMOTE CONTROL
RECEIVER WINDOW
BLOCKAGE INDICATOR
for FILTERS (flashes red)
for WARM AIR DISCHARGE
(glows red)
