Runco CR-26HD/CR-32HDi Owner’s Operating Manual
19
PRE
L
IMINAR
Y

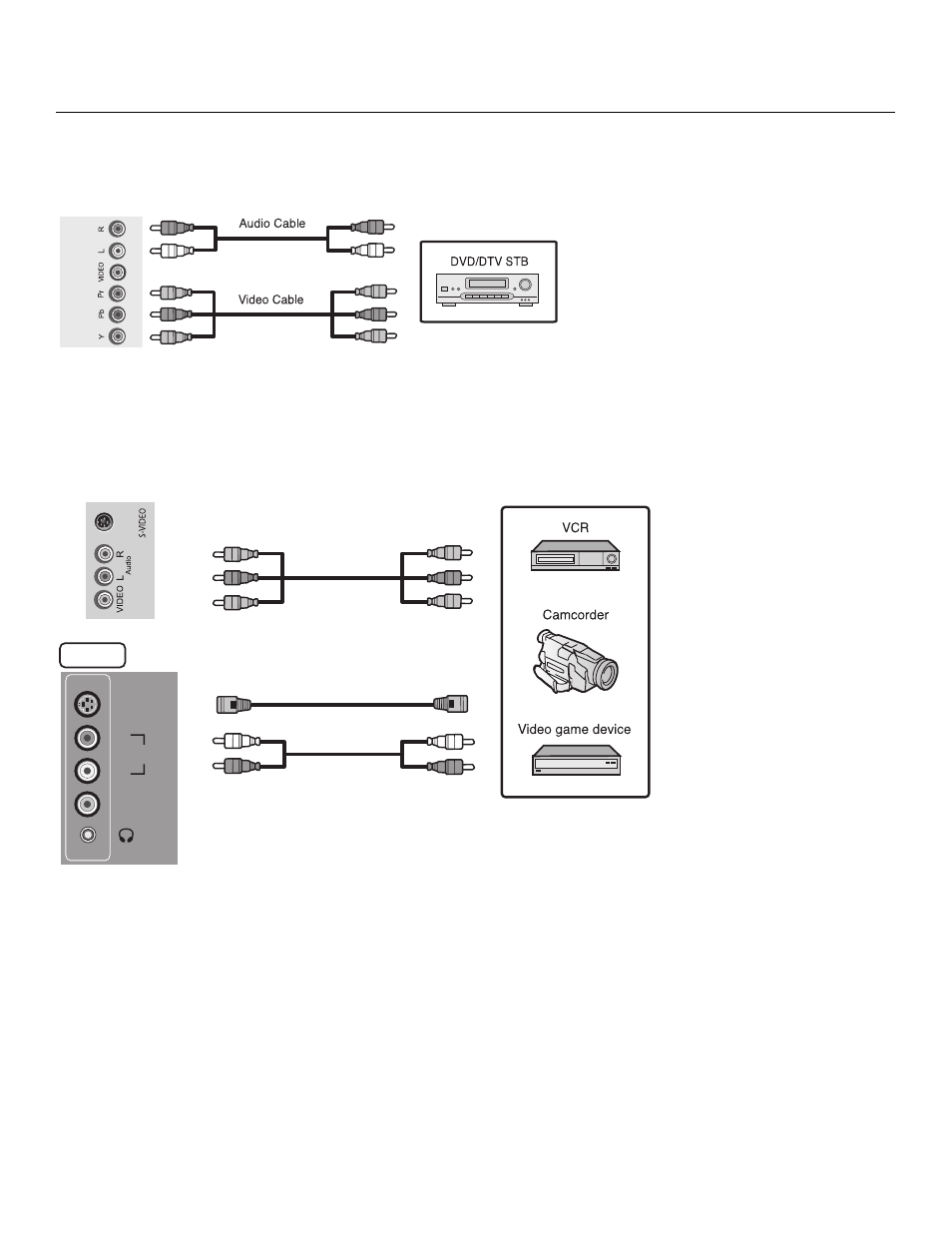

Component Video Connections: If you have a DVD player or DTV decoder with a
component (YPbPr) output, connect it to INPUT 3 of the Crystal Series LCD Display as
shown in Figure 3-4.
Figure 3-4. Component Video Connections
Composite/S-Video Connections: The Crystal Series LCD Display has two (2) S-Video
and three (3) composite video inputs for connecting a VCR, camcorder, laser disc player
or DVD player; see Figure 3-5.
Figure 3-5. Composite and S-Video Connections
INPUT3
INPUT1
Input 2
S-Video
Video
R
Audio
L
Composite Video
(INPUT 1, INPUT 2 or INPUT 3)
S-Video
(INPUT 1 or INPUT 2)
