FV-G030B1
User’s Guide Rev. 1.01
Note 2: The exposure will start 105 CLK after the rising edge of the trigger signal.
3.3 Edge Preset Trigger Mode
In this “edge preset trigger mode”, the camera exposure starts at the rising edge of the trigger signal like the “pulse
width trigger mode” in the previous sections. However, in this mode, the exposure duration time is based on the preset
value stored by the by the camera setting communication.

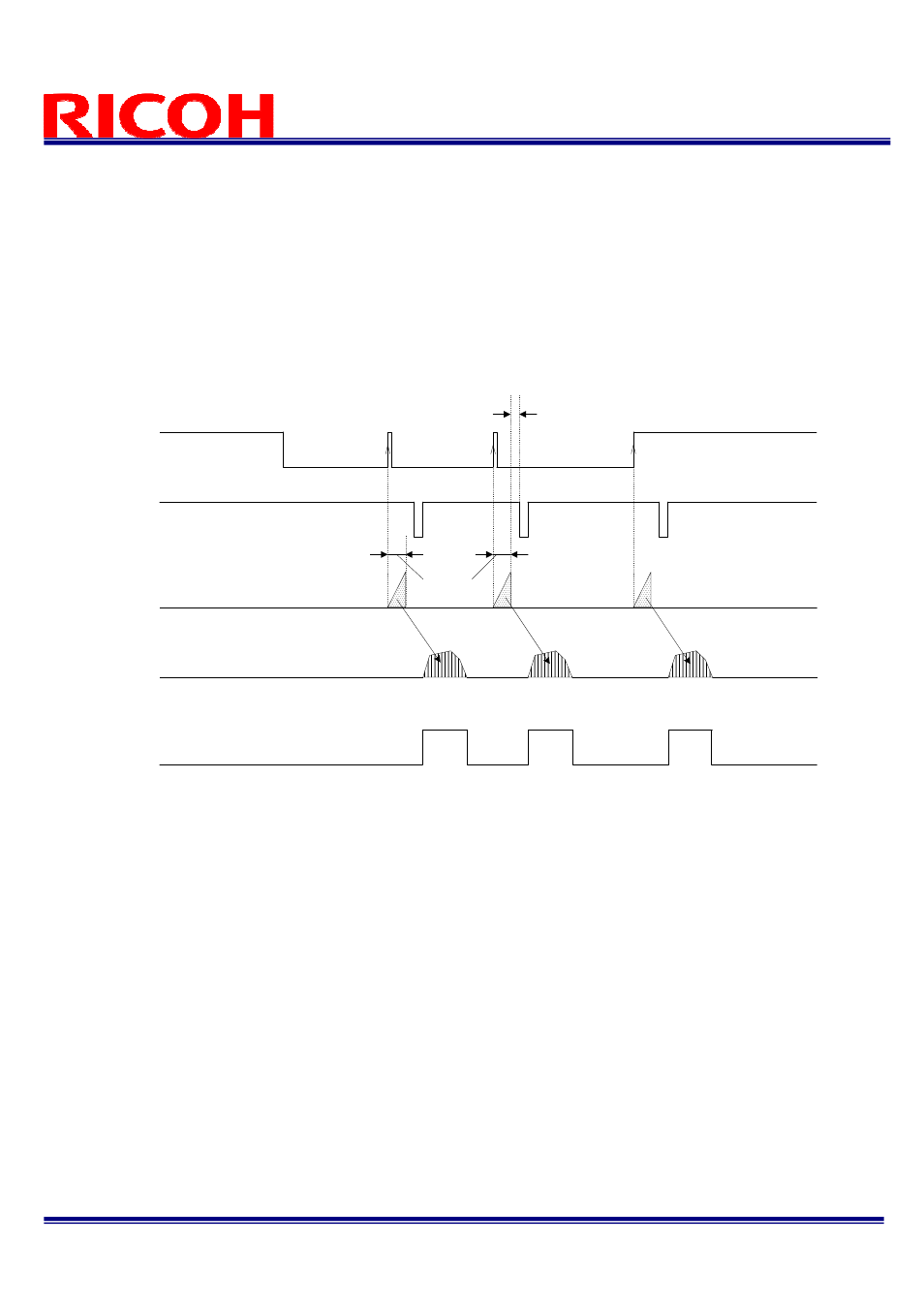

3.3.1 Timing
Note 1: The video output will be V reset by the next internal HD signal immediately after the exposure is finished.
Note 2: The exposure time is set by the preset electronic shutter speed.
Exposure
time
Max. 1H
Internal VD
CCD exposure
Trigger signal
(Rising edge)
Video out
*Note. 1
*Note. 2
FVAL
